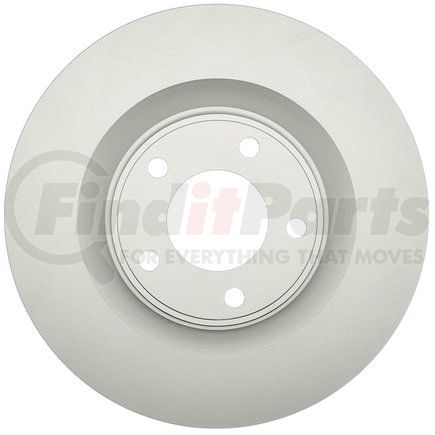

(888) 312-8812 Login SignupRAYBESTOS 680544FZN Raybestos Element3 Coated Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 680544FZN Part Description
Manufacturer
Product Description
Raybestos Element3 Coated Brake Rotor
Application Summary
2014-2007 Ford Edge Front, 2015-2007 Lincoln MKX Front
Features & Benefits
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- RPT® Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 680544FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.83 IN |
| Center Hole Diameter | 71.9 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.546 IN |
| Mounting Bolt Hole Diameter | 13.85 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 12.598 IN |
| Outside Diameter | 320 MM |
| Overall Height | 1.9 IN |
| Overall Height | 48.25 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213091229 |
RAYBESTOS 680544FZN Cross References
RAYBESTOS 680544FZN Fits Vehicles
- Lincoln MKX (2007-2015)
- Ford Edge (2007-2015)
