(888) 312-8812 Login SignupRAYBESTOS 981010R Raybestos R-Line Brake Rotor
$11199
Limited availability at this price!
In Stock
Get it by Tuesday, Mar 10
RAYBESTOS 981010R Part Description
Manufacturer
Product Description

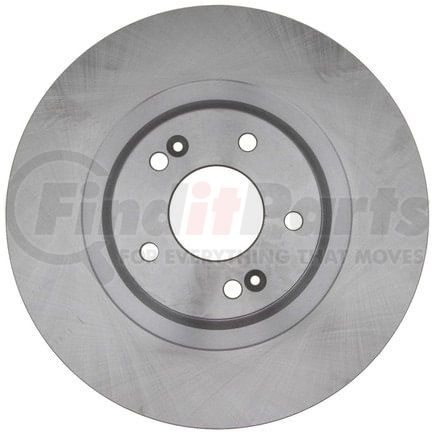

Raybestos R-Line Brake Rotor
Application Summary
2020-2014 Kia Sorento Front, 2018-2013 Hyundai Santa Fe Sport Front, 2018-2013 Hyundai Santa Fe Front, 2019-2014 Hyundai Santa Fe XL Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 981010R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.72 IN |
| Center Hole Diameter | 69.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.067 IN |
| Inside Diameter | 204.9 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.496 IN |
| Mounting Bolt Hole Diameter | 12.6 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.106 IN |
| Nominal Thickness | 28.1 MM |
| Outside Diameter | 12.598 IN |
| Outside Diameter | 320 MM |
| Overall Height | 1.941 IN |
| Overall Height | 49.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213080209 |
RAYBESTOS 981010R Cross References
RAYBESTOS 981010R Fits Vehicles
- Hyundai Santa Fe Sport (2013-2018)
- Hyundai Santa Fe XL (2013-2019)
- Kia Sorento (2014-2020)
- Hyundai Santa Fe (2012-2019)
