CENTRIC 120.6109 Part Description
Manufacturer
Product Description

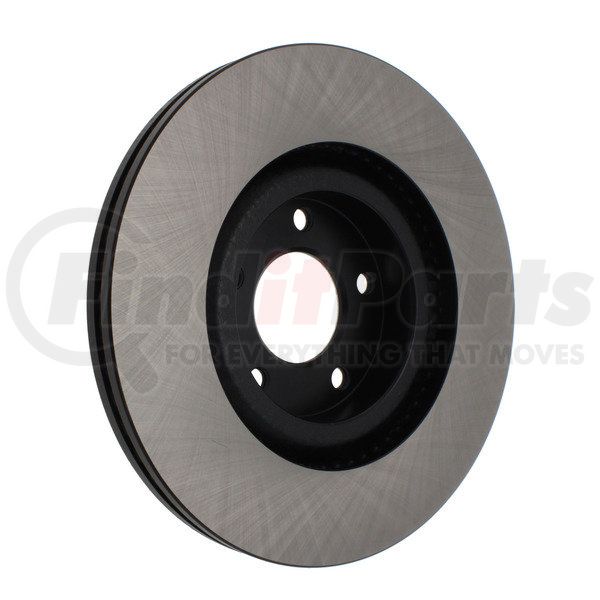

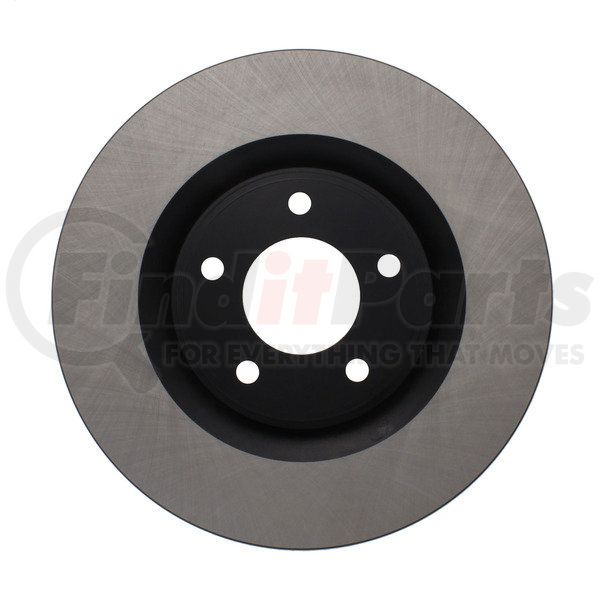

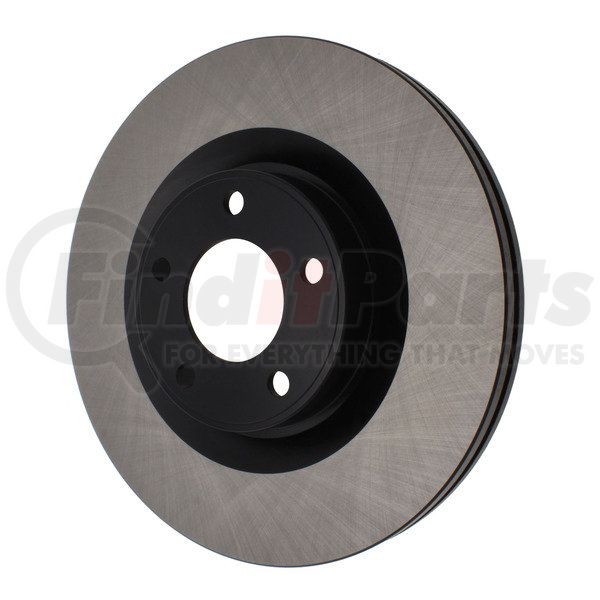

Centric Premium Brake Rotor
Application Summary
Ford Edge 2014-2007, Lincoln MKX 2015-2007
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
Premium rotor; rotors; Centric; brake rotor; break; brake disc; disc brake
CENTRIC 120.6109 Specifications
Product Attributes
| Discard Thickness | 26.000 MM |
| Nominal Thickness | 1.102 IN |
| Hat Finish | Coated |
| Overall Height | 1.902 IN |
| Outside Diameter | 320.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.835 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.551 IN |
| California Proposition 65 Text [basic] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 10.730 |
| Weight [cntrc] Lbs | 23.600 |
| Nominal Thickness | 28.000 MM |
| Overall Height | 48.300 MM |
| Center Hole Diameter | 72.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Disc Mounting | Floating |
| Misc Holes | 0 |
| Vane Style | Straight |
| Weight | 23.600 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890396017 |
CENTRIC 120.6109 Cross References
CENTRIC 120.6109 Fits Vehicles
- Lincoln MKX (2007-2015)
- Ford Edge (2007-2014)
