(888) 312-8812 Login SignupRAYBESTOS 96778FZN Raybestos Element3 Coated Brake Rotor
$5449
Limited availability at this price!
1 Day Lead Time
Get it by Wednesday, Mar 11
RAYBESTOS 96778FZN Part Description
Manufacturer
Product Description

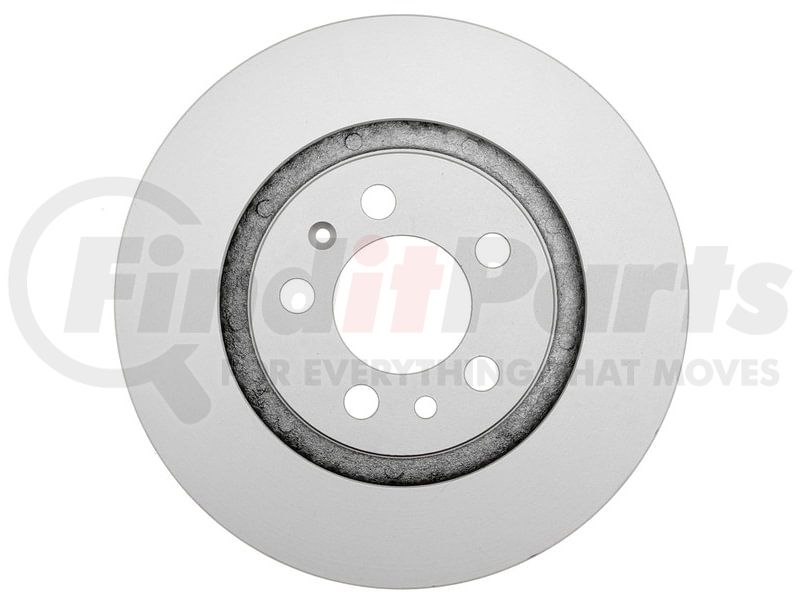

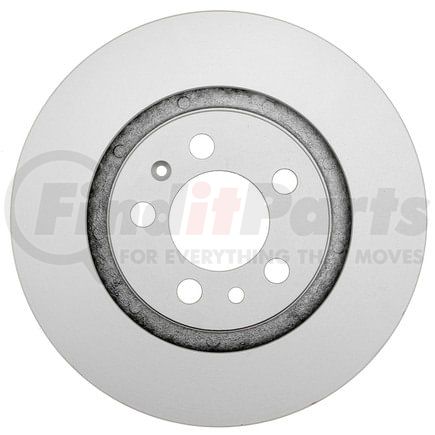

Raybestos Element3 Coated Brake Rotor
Application Summary
2006-1999 Volkswagen Jetta Front, 2010-1998 Volkswagen Beetle Front, 2006-1999 Volkswagen Golf Front, 2010-2007 Volkswagen Golf City Front, 2009-2007 Volkswagen Jetta City Front, 2004-1998 Audi A3 Front, 2009-2001 Seat Cordoba Front
Features & Benefits
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology for long lasting rust prevention.
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 96778FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.56 IN |
| Center Hole Diameter | 65 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.748 IN |
| Discard Thickness | 19 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 3.93 IN |
| Mounting Bolt Hole Circle Diameter | 99.8 MM |
| Mounting Bolt Hole Diameter | 0.625 IN |
| Mounting Bolt Hole Diameter | 15.9 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.865 IN |
| Nominal Thickness | 21.95 MM |
| Outside Diameter | 11.02 IN |
| Outside Diameter | 279.9 MM |
| Overall Height | 1.435 IN |
| Overall Height | 36.45 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213091946 |
RAYBESTOS 96778FZN Cross References
RAYBESTOS 96778FZN Fits Vehicles
- Audi A3 Quattro (2004)
- Volkswagen Clasico (2011-2015)
- Volkswagen Jetta City (2007-2009)
- Volkswagen Golf City (2007-2010)
- Seat Ibiza (2002-2007)
- Seat Leon (2001-2005)
- Seat Toledo (2001-2005)
- Seat Cordoba (2001-2009)
- Audi A3 (1998-2004)
- Volkswagen Jetta (1999-2010)
- Volkswagen Golf (1999-2006)
- Volkswagen Beetle (1998-2011)
