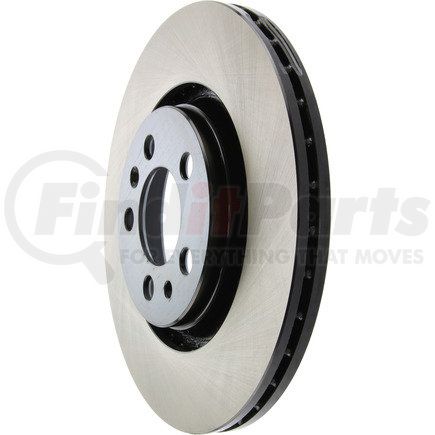

(888) 312-8812 Login SignupCENTRIC 125.33054 Centric Premium High Carbon Alloy Brake Rotor
Tap to view 4 more
$9749
Limited availability at this price!
1 Day Lead Time
Get it by Wednesday, Mar 11
CENTRIC 125.33054 Part Description
Manufacturer
Product Description
Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 125.33054 Specifications
Product Attributes
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 13.800 |
| Misc Holes [cntrc] | 1 |
| Weight [cntrc] Kgs | 6.270 |
| Discard Thickness | 19.000 MM |
| Discard Thickness | 0.748 IN |
| Nominal Thickness | 22.000 MM |
| Nominal Thickness | 0.862 IN |
| Hat Finish | Painted |
| Overall Height | 1.445 IN |
| Overall Height | 36.700 MM |
| Outside Diameter | 279.700 MM |
| Outside Diameter | 11.012 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 65.000 MM |
| Center Hole Diameter | 2.559 IN |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.800 MM |
| Stud/Lug Hole Diameter | 0.622 IN |
Additional Information
| Country of Origin (Primary) | CN |
| NAFTA Preference Criterion Code | B |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 00805890130260 |
CENTRIC 125.33054 Cross References
| Brand | Part Number |
|---|---|
| N/A | FR28008, BD125647, BD125740, BD180523, 0832750, 522150, 422150, E130-38-059, E125-38-059, 64 16 220, 34143, 37001, 106015, 34143G, 4096025, 1J0615301E, 1J0615301M, 1J0615301P, 1JD615301, 1J0315301E, 117202, 145239, 86778, 4886778, BFR370710, DF2804, EBR615, EBR636, E12538059, 34143HC, 125.33054, 1.5832.2.4, YH145239, A5188, A5786, A5920, A5937, 25478, 25536, 09701210, I1261, I1429, 96778P, DDF928, 19953, 8996042, 142747, 90074016, 100.1234.00 |
| RAYBESTOS | 96778, 96778FZN, 96778R |
| Raybestos Brakes | 96778FZN, 96778, 96778R |
| WAGNER | BD180523E, BD180523 |
CENTRIC 125.33054 Fits Vehicles
- Seat Ibiza (2002-2007)
- Seat Toledo (2001-2005)
- Seat Leon (2001-2005)
- Seat Cordoba (2001-2009)
- Audi A3 (1998-2004)
- Volkswagen Jetta City (2007-2009)
- Volkswagen Golf City (2007-2010)
- Volkswagen Jetta (1999-2010)
- Volkswagen Golf (1999-2006)
- Volkswagen Clasico (2011-2015)
- Volkswagen Beetle (1998-2006, 2009-2011)
