(888) 312-8812 Login SignupCENTRIC 120.33054 Centric Premium High Carbon Alloy Brake Rotor
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 120.33054 Part Description
Manufacturer
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

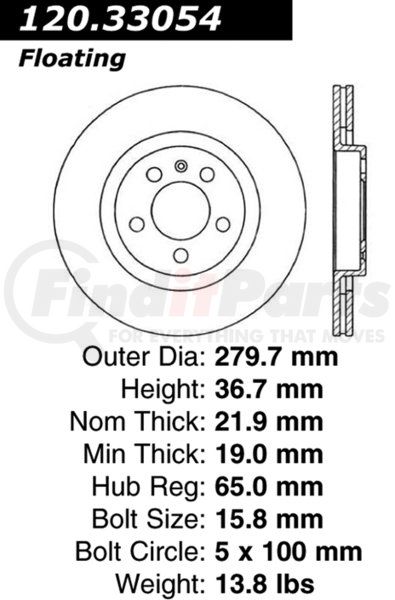

CENTRIC 120.33054 Specifications
Product Attributes
| Weight [cntrc] Kgs | 6.270 |
| Weight [cntrc] Lbs | 13.800 |
| Disc Mounting [cntrc] | Floating |
| Product Grade [cntrc] | Premium |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 1 |
| Discard Thickness | 19.000 MM |
| Discard Thickness | 0.748 IN |
| Nominal Thickness | 22.000 MM |
| Nominal Thickness | 0.862 IN |
| Hat Finish | Painted |
| Overall Height | 1.445 IN |
| Overall Height | 36.700 MM |
| Outside Diameter | 11.012 IN |
| Outside Diameter | 279.700 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 65.000 MM |
| Center Hole Diameter | 2.559 IN |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.800 MM |
| Stud/Lug Hole Diameter | 0.622 IN |
