RAYBESTOS 581613R Part Description
Manufacturer
Product Description

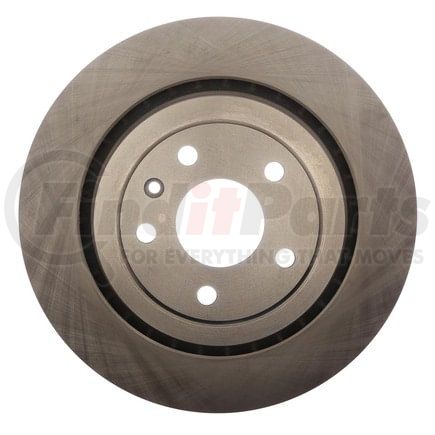

Raybestos R-Line Brake Rotor
Application Summary
2019-2014 Chevrolet Corvette Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 581613R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.783 IN |
| Center Hole Diameter | 70.7 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.945 IN |
| Discard Thickness | 24 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 9.425 IN |
| Inside Diameter | 239.4 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120 MM |
| Mounting Bolt Hole Diameter | 0.591 IN |
| Mounting Bolt Hole Diameter | 15 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.024 IN |
| Nominal Thickness | 26 MM |
| Outside Diameter | 13.343 IN |
| Outside Diameter | 338.9 MM |
| Overall Height | 1.909 IN |
| Overall Height | 48.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213157499 |
RAYBESTOS 581613R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH508483 |
| AutoZone | 72053DG, 72053DL |
| BRAKEBEST | 521619RGS, 581613, 581613FZN, 581613R |
| CENTRIC | 120.62141, 121.62141, 126.62141, 126.62141SL, 126.62141SR, 127.62141L, 127.62141R, 226.62141 |
| Centric Parts | 120.62141, 121.62141, 126.62141SL, 126.62141SR, 127.62141L, 127.62141R, 226.62141, 126.62141 |
| Dura Corp | BR901668 |
| DuraGo | BR901668 |
| Dynamic Friction Company | 604-47047, 614-47047 |
| GM | 20981820, 23213199, 23322784 |
| General Motors | 20981820, 23213199, 23322784 |
| MAGMA PRODUCTS | PMR223147 |
| NEWTEK AUTOMOTIVE | R1668 |
| Newtek Automotive USA | R1668 |
| PROMAX | 14-650001 |
| Qualis | 41285, 61316, 61332 |
| WORLDPAC | 1427-566216 |
RAYBESTOS 581613R Fits Vehicles
- Chevrolet Corvette (2014-2019)
