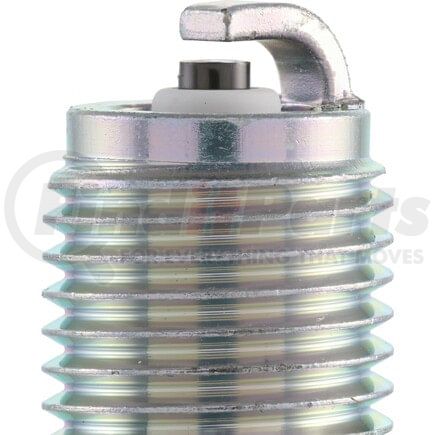

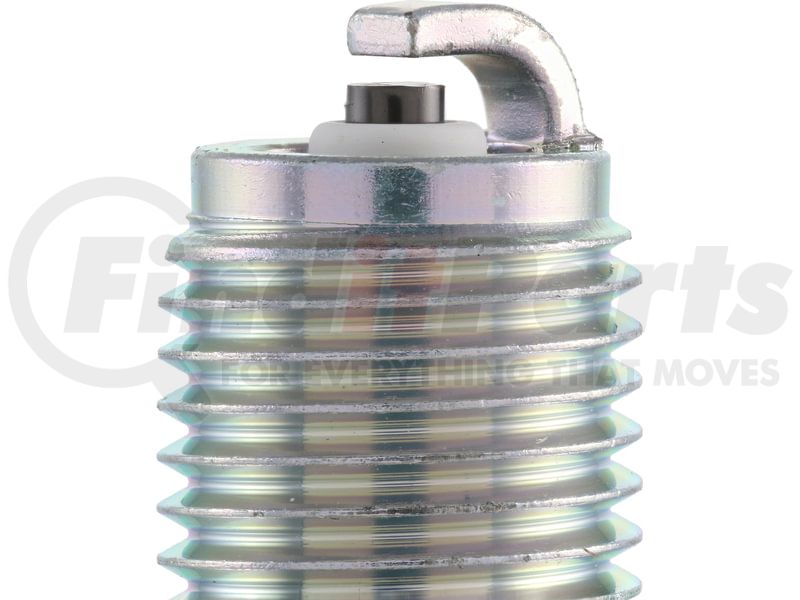

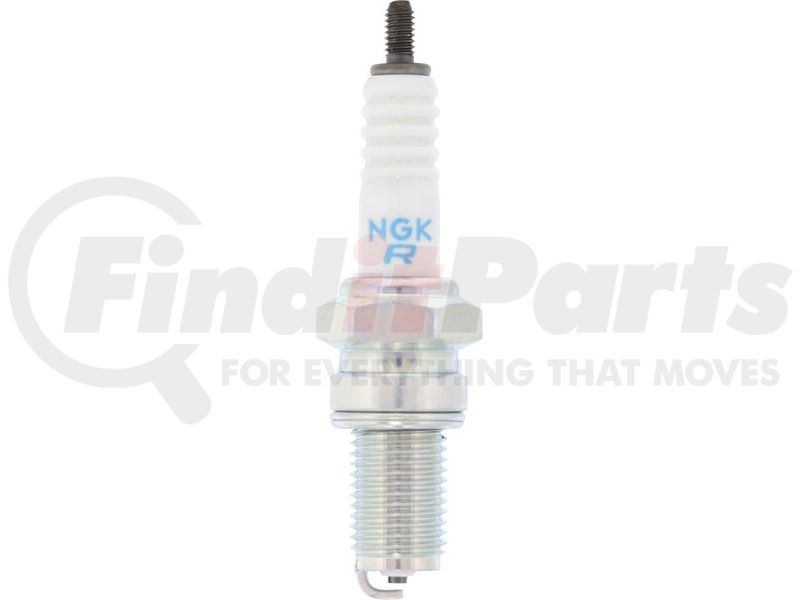

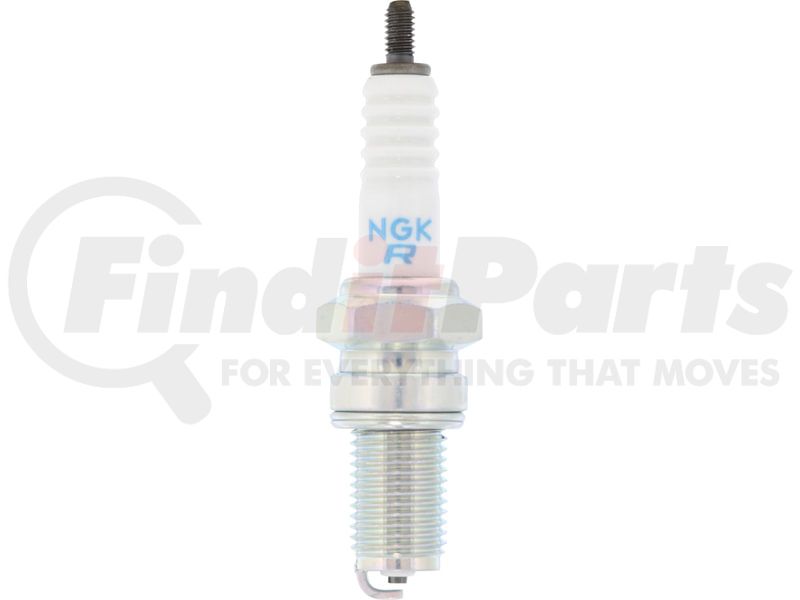

NGK SPARK PLUGS 97058 Part Description
Manufacturer
Product Description
NGK Standard Carded Spark Plug
Features & Benefits
- NGK Standard spark plugs are proven technology that offer reliable performance. Actual OE or equivalent replacement spark plug. NGK Standard plugs are treated with corrosion-resistant plating to ensure ease of installation and removal.
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- NGK Standard plugs are an OE cornerstone that have provided decades of reliable performance. Engineered specifically for OE applications.
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- The solid Copper Core offers superior heat dissipation, conductivity and broad heat range. For even greater performance consider upgrading to a NGK Iridium IX Spark Plug.
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
SPARK PLUG
NGK SPARK PLUGS 97058 Specifications
Product Attributes
| Stock Number | 97058 |
| Part Number | DR8EA BLYB |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Stud |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .028 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 18 MM |
| Insulator Height | 50.0 MM |
| Manufacturer Heat Range | 8 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 12.00 MM |
| Short Style Spark Plug | No |
| Service Number | DR8EA BLYB |
| Washer(s) Included | Yes |
| Grade Type | Standard Replacement |
| Hex Size | 18mm |
| Insulator Height | 1.97 IN |
| Thread Diameter | 0.472 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.06 IN |
| Center Electrode Design | Standard |
| Washer Type | Crush |
| Center Electrode Projection | Non-Projected |
| Thread Size | M12 - 1.25 |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.7 MM |
| Reach | 19.0 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 1.6 MM |
Additional Information
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00087295870587 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS 97058 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | R121XLS |
| Aprilia | 0297542, 297542 |
| Autolite | 3954 |
| Champion Spark Plug | 809, RA6, RA6HC, RAX94C |
| Honda | 98069-5871P |
| John Deere | B1DR8EA |
| Kawasaki | 92070-1199 |
| NGK | 97058 |
| NGK SPARK PLUGS | DR8EA BLYB, 97058 |
| Piaggio | AP0297542 |
| Suzuki | 09482-00399 |
| Yamaha | 94701-00333, 94703-00333 |
NGK SPARK PLUGS 97058 Fits Vehicles
- KYMCO MXU150X (2016-2018, 2020-2023)
- Textron Alterra 150 (2018)
- Cub Cadet Challenger 550 Camo (2017)
- Cub Cadet Challenger 550 (2017-2018)
- Suzuki VanVan 200 (2017)
- Honda CL100 Scrambler (1970-1972)
- Cub Cadet Challenger 500 (2015-2018)
- Husqvarna TC500 (1985)
- Arctic Cat 150 (2015-2017)
- Suzuki DR200S (2015-2020)
- Honda TRX300X (2009)
- Yamaha YXR45F Rhino 450 Special Edition (2007)
- BMW F650 Enduro (1998-2000)
- Yamaha YFP350 TerraPro (1988)
- KTM 620 Duke (1996-1997)
- Yamaha YFM450 Grizzly 4x4 Auto EPS (2012-2014)
- Suzuki TU250 (2011)
- Yamaha YFM450 Grizzly 4x4 Auto IRS (2009-2010)
- Suzuki TU250X (2009, 2012-2013, 2015-2017, 2019)
- Arctic Cat 150 2x4 (2009-2014)
- Yamaha YFM450 Grizzly 4x4 Auto (2007-2008, 2011-2014)
- Yamaha YFM400 Grizzly 4x4 Auto (2007-2008)
- Yamaha YFM400 Big Bear IRS 4x4 (2007-2012)
- Yamaha YFM350 Grizzly IRS 4x4 Auto (2007-2012)
- Yamaha YFM350 Grizzly Auto (2007-2011, 2014)
- Yamaha YFM350 Grizzly 4x4 Auto (2007-2014)
- Can-Am DS 650 X (2007)
- Yamaha YXR45F Rhino 450 (2006-2009)
- Yamaha YFM450FX Wolverine 4x4 (2006-2010)
- Yamaha YFM350 Wolverine (2006-2009)
- Yamaha TTR230 (2005-2009, 2011-2020)
- KYMCO MXU150 (2005-2013, 2015)
- John Deere Buck 500 Auto (2005-2006)
- Bombardier Traxter Max 500 4x4 Auto XT (2005)
- Bombardier Traxter Max 500 4x4 Auto (2005)
- Bombardier Traxter 500 Auto 4x4 CVT (2005)
- Bombardier DS650 X (2005-2006)
- Yamaha YFM350FA Bruin Auto 4x4 (2004-2006)
- Yamaha YFM350 Raptor (2004-2013)
- Yamaha YFM350 Bruin Auto 2x4 (2004-2006)
- Suzuki LT-Z250 QuadSport Z (2004-2009)
- John Deere Buck 500 EXT (2004-2005)
- John Deere Buck 500 EX (2004-2005)
- John Deere Buck 500 (2004-2006)
- Bombardier DS650 Baja X (2004)
- Benelli Tornado Tre 900 RS (2004-2005)
- Yamaha YFM450F Kodiak Auto 4x4 (2003-2006)
- Suzuki DR-Z125L (2003-2009, 2012-2024)
- Suzuki DR-Z125 (2003-2009, 2012-2014)
- Kawasaki KX125 (2003)
- Kawasaki KLX125L (2003-2006)
- Kawasaki KLX125 (2003-2006)
- Kawasaki KLF250 Bayou (2003-2008, 2010-2011)
- Kasea Skyhawk 170 (2003-2005)
- Benelli Tornado Tre 900 (2003-2005)
- ATK 125 Enduro (4-Stroke) (2003)
- BMW F650GS Dakar ABS (2002-2004)
- ATK 500 Enduro (2002-2003)
- Kawasaki KEF300 Lakota Sport (2001-2003)
- Bombardier Traxter 500 4x4 Auto XT (2001-2002, 2005)
- Bombardier DS650 Baja (2001-2004)
- BMW F650GS Dakar (2001-2004)
- BMW F650GS ABS (2001-2003)
- BMW F650GS (2001-2004)
- Yamaha YFM400A Kodiak (2000-2004)
- Yamaha YFM400 Big Bear 4x4 (2000-2006)
- Yamaha YFM400 Big Bear 2x4 (2000-2004)
- Bombardier DS650 Racer (2000-2003)
- Bombardier DS650 (2000-2004)
- Yamaha YFM350F Wolverine 4x4 (1999-2005)
- Yamaha TTR225 (1999-2004)
- Suzuki GZ250 (1999-2010)
- Kawasaki KVF300 Prairie 4x4 (1999-2002)
- Kawasaki KVF300 Prairie 2x4 (1999-2002)
- Bombardier Traxter 500 XL (1999-2002, 2005)
- Bombardier Traxter 500 4x4 Auto (1999-2002, 2005)
- BMW F650 SE (1999)
- ATK 500 DT (1999, 2003)
- KTM 400 SX (1998)
- ATK 605 Enduro (1998-2003)
- ATK 600 DT (1998-2002)
- ATK 350 Enduro (1998-1999, 2002)
- Yamaha YZF1000 (1997)
- BMW F650ST (1997)
- BMW F650 (1997-2000)
- Yamaha YFM350U Big Bear 2x4 (1996-1999)
- Suzuki DR200SE (1996-2009, 2013)
- KTM 620 SX (1996-1998)
- KTM 400 RXC (1996-1998)
- Kawasaki ZL600 Eliminator (1996-1997)
- Aprilia Pegaso 650 (1996-2002)
- KTM 620 RXC (1995-1998)
- Kawasaki KEF300 Lakota Utility (1995-2000)
- BMW K75/3A (1995)
- BMW K75/3 (1995)
- Suzuki DR125SE (1994-1996)
- KTM 620 EXC (1994-1997)
- BMW K75A (1994)
- Yamaha YFM400F Kodiak 4x4 (1993-2006)
- KTM 600 EXC (1993)
- ATK 605 CC (1993-2000)
- Yamaha XT225 (1992-2007)
- BMW K100RS FL ABS (1991-1992)
- BMW K100RS FL (1991-1992)
- ATK 350 CC (1991-1999)
- KTM 600 DXC (1989-1990)
- Kawasaki ZX750 Ninja ZX-7 (1989-1990)
- Kawasaki KLF300 Bayou 4x4 (1989-2004)
- Kawasaki KLF300 Bayou 2x4 (1989-2004)
- Suzuki GSX600F Katana (1988-1995)
- KTM 600 MXC (1988)
- KTM 600 MX (1988-1990)
- Kawasaki KLF220 Bayou (1988-2002)
- BMW K75 (1988-1995)
- BMW K100RS ABS (1988-1989)
- BMW K1 (1988-1993)
- Yamaha YFM350X Warrior (1987-2004)
- Yamaha YFM350FW Big Bear 4x4 (1987-1999)
- Yamaha YFM350ER Moto-4 (1987-1995)
- Yamaha TW200 (1987-2020)
- Yamaha SRX250 (1987)
- Yamaha BW350 (1987-1988)
- Suzuki LT300E (1987-1989)
- Kawasaki ZX750F Ninja 750R (1987-1990)
- Kawasaki ZL1000 Eliminator (1987)
- Kawasaki EN450A 454 LTD (1987)
- Yamaha YX600 Radian (1986-1990)
- Yamaha TT350 (1986-1987)
- Yamaha TT225 (1986-1987)
- Yamaha FZ600 (1986-1988)
- Suzuki SP200 (1986-1988)
- Suzuki DR200 (1986-1988)
- Kawasaki ZG1000 Concours (1986-1988, 1990-2006)
- Kawasaki KLT185 (1986-1987)
- Husqvarna TX510 (1984-1986)
- Yamaha XT350 (1985-2000)
- Yamaha XJ700X Maxim X (1985)
- Yamaha BW200 (1985-1988)
- Suzuki LT250EF (1985-1986)
- Suzuki GS700ES (1985)
- Suzuki GS700E (1985)
- Kawasaki ZL900A Eliminator (1985-1986)
- Kawasaki KLT160 (1985)
- Kawasaki KLF185 Bayou (1985-1988)
- BMW K100RT (1985-1988)
- Yamaha XT250 (1984)
- Yamaha FJ600 (1984-1985)
- Kawasaki ZX900 Ninja (1984-1986)
- Kawasaki KZ550F LTD Shaft (1984)
- Kawasaki KL600 (1984)
- Suzuki SP250 (1983-1984)
- Suzuki SP125 (1983, 1986-1988)
- Suzuki SP100 (1983)
- Suzuki GS750ES (1983)
- Suzuki GS1100S Katana (1983)
- Suzuki GS1100ES (1983)
- Suzuki GR650 Tempter (1983)
- Suzuki GN250 (1983, 1985, 1988)
- Suzuki DR100 (1983-1990)
- Kawasaki KZ550M LTD Shaft (1983)
- Kawasaki KZ550F Spectre (1983)
- Honda CB1100F (1983)
- Honda CB1000C Custom (1983)
- BMW K100RS (1983-1988)
- BMW K100 (1983-1986)
- Yamaha XZ550R Vision (1982-1983)
- Yamaha XT200 (1982-1983)
- Yamaha XT125 (1982-1983)
- Yamaha XS400R Seca (1982-1983)
- Suzuki GS1100GL (1982-1983)
- Suzuki GS1100GK (1982-1983)
- Suzuki GS1100G (1982-1983)
- Suzuki GN125E (1982-1983, 1991-1997)
- Suzuki DR250 (1982-1985)
- Suzuki DR125 (1982-1988)
- Honda CB900F Super Sport (1982)
- Honda CB900C Custom (1982)
- Suzuki SP500 (1981-1983)
- Suzuki GN400 (1981-1982)
- Suzuki DR500 (1981-1983)
- Kawasaki KZ550D/H GPZ (1981-1983)
- Honda XR500R (1981)
- Honda XR250R (1981)
- Honda GL500I Silver Wing Interstate (1981)
- Honda GL500 Silver Wing (1981)
- Honda CM400C Custom (1981)
- Honda ATC200 (1981)
- Honda ATC185S (1981)
- Suzuki SP400 (1980)
- Suzuki GS750E (1980-1983)
- Suzuki GS1100L (1980)
- Suzuki GS1100E (1980-1983)
- Suzuki DR400 (1980)
- Kawasaki KZ550C LTD (1980-1983)
- Kawasaki KZ550A (1980-1983)
- Honda XR200 (1980-1981)
- Honda GL1100 Gold Wing (1980)
- Honda CT110 (1980-1981)
- Honda CM400E (1980-1981)
- Honda CB750C Custom (1980-1981)
- Honda CB400T Hawk (1980-1981)
- Honda ATC185 (1980)
- Honda XR500 (1979-1980)
- Honda XR250 (1979-1980)
- Honda XR185 (1979)
- Honda XL500S (1979-1981)
- Honda XL185S (1979-1981)
- Honda XL125S (1979-1981)
- Honda CX500D Deluxe (1979)
- Honda CX500C Custom (1979-1981)
- Honda CM400T (1979-1981)
- Honda CM400A Hondamatic (1979-1981)
- Honda CBX (1979-1981)
- Honda CB750L (1979)
- Suzuki SP370 (1978-1979)
- Suzuki DR370 (1978-1979)
- Honda XL250S (1978-1981)
- Honda CX500 (1978-1979)
- Honda CB400TII Hawk II (1978-1979)
- Honda CB400A Hondamatic (1978)
- Honda CT125 (1977)
- Honda CB750K (1977-1981)
- Honda TL125 (1973-1976)
- Honda CB750A Automatic (1976-1978)
- Yamaha XS500 (1975-1978)
- Honda GL1000 Gold Wing (1975-1979)
- Honda CB750F Super Sport (1975-1981)
- Honda CB400F Super Sport (1975-1977)
- Honda XL350 (1974-1978)
- Honda XL125 (1974-1978)
- Honda XL100 (1974-1978)
- Honda CL200 Scrambler (1974)
- Honda CB200 (1974-1976)
- Honda CL125 Scrambler (1973-1974)
- Honda CB125S (1973-1981)
- Honda XL250 (1972-1976)
- Honda CB350F (1972-1974)
- Honda SL125 (1971-1973)
- Honda CL100/S Scrambler (1971-1973)
- Honda SL100 (1970-1973)
- Honda CB100 Super Sport (1970-1972)
NGK SPARK PLUGS 97058 Customer Reviews
No reviews yet
Be the first to review this product!
NGK SPARK PLUGS 97058 Manufacturer Information
Headquartered in Wixom, Michigan, NGK® is a global leader in the design and manufacture of spark plugs for virtually every automotive and commercial vehicle application. It has grown immensely since its inception in 1936 with the expansion of its ignition product line and the introduction of its technical sensor and vehicle electronics line. NGK partners with OEMs and uses only the latest cutting tools to ensure each NGK product meets OE specifications for exact fit, form, and function. With world-class quality and engineering, NGK’s expertise goes beyond manufacturing the most reliable spark plugs for the automotive industry but also providing the best customer service possible.
NGK SPARK PLUGS 97058 Questions & Answers
No questions yet
Be the first to ask a question about this product!
California residents see
