(888) 312-8812 Login SignupNGK SPARK PLUGS DR8EA BLYB NGK Standard Carded Spark Plug
Tap to view 2 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
NGK SPARK PLUGS DR8EA BLYB Part Description
Manufacturer
Product Description

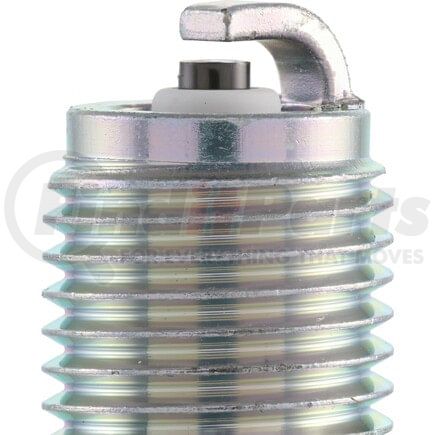

NGK Standard Carded Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK SPARK PLUGS DR8EA BLYB Specifications
Product Attributes
| Stock Number | 97058 |
| Part Number | DR8EA BLYB |
| Short Style Spark Plug | No |
| Service Number | DR8EA BLYB |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Standard Replacement |
| Electrical Terminal Type | Stud |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .028 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 18mm |
| Insulator Height | 1.97 IN |
| Manufacturer Heat Range | 8 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 0.472 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.06 IN |
| Center Electrode Design | Standard |
| Washer Type | Crush |
| Center Electrode Projection | Non-Projected |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.7 MM |
| Insulator Height | 50.0 MM |
| Reach | 19.0 MM |
| 6648 | 0.0 MM |
| Thread Size | M12 - 1.25 |
| Center Electrode Insulator Tip Projection | 1.6 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295870587 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS DR8EA BLYB Cross References
| Brand | Part Number |
|---|---|
| ACDelco | R121XLS |
| Aprilia | 297542, 0297542 |
| Autolite | 3954 |
| Champion Spark Plug | RA6HC, 809, RAX94C, RA6 |
| Honda | 98069-5871P |
| John Deere | B1DR8EA |
| Kawasaki | 92070-1199 |
| N/A | DR8EA BLYB |
| NGK | 97058 |
| Piaggio | AP0297542 |
| Suzuki | 09482-00399 |
| Yamaha | 94701-00333, 94703-00333 |
NGK SPARK PLUGS DR8EA BLYB Fits Vehicles
- KYMCO MXU150X (2016-2018, 2020-2023)
- Textron Alterra 150 (2018)
- Cub Cadet Challenger 550 Camo (2017)
- Cub Cadet Challenger 550 (2017-2018)
- Suzuki VanVan 200 (2017)
- Honda CL100 Scrambler (1970-1972)
- Cub Cadet Challenger 500 (2015-2018)
- Husqvarna TC500 (1985)
- Arctic Cat 150 (2015-2017)
- Suzuki DR200S (2015-2020)
- Honda TRX300X (2009)
- Yamaha YXR45F Rhino 450 Special Edition (2007)
- BMW F650 Enduro (1998-2000)
- Yamaha YFP350 TerraPro (1988)
- KTM 620 Duke (1996-1997)
- Yamaha YFM450 Grizzly 4x4 Auto EPS (2012-2014)
- Suzuki TU250 (2011)
- Yamaha YFM450 Grizzly 4x4 Auto IRS (2009-2010)
- Suzuki TU250X (2009, 2012-2013, 2015-2017, 2019)
- Arctic Cat 150 2x4 (2009-2014)
- Yamaha YFM400 Big Bear IRS 4x4 (2007-2012)
- Yamaha YFM450 Grizzly 4x4 Auto (2007-2008, 2011-2014)
- Yamaha YFM400 Grizzly 4x4 Auto (2007-2008)
- Yamaha YFM350 Grizzly IRS 4x4 Auto (2007-2012)
- Yamaha YFM350 Grizzly 4x4 Auto (2007-2014)
- Yamaha YFM350 Grizzly Auto (2007-2011, 2014)
- Can-Am DS 650 X (2007)
- Yamaha YXR45F Rhino 450 (2006-2009)
- Yamaha YFM450FX Wolverine 4x4 (2006-2010)
- Yamaha YFM350 Wolverine (2006-2009)
- Yamaha TTR230 (2005-2009, 2011-2020)
- KYMCO MXU150 (2005-2013, 2015)
- John Deere Buck 500 Auto (2005-2006)
- Bombardier Traxter Max 500 4x4 Auto XT (2005)
- Bombardier Traxter Max 500 4x4 Auto (2005)
- Bombardier DS650 X (2005-2006)
- Bombardier Traxter 500 Auto 4x4 CVT (2005)
- Yamaha YFM350 Raptor (2004-2013)
- Yamaha YFM350FA Bruin Auto 4x4 (2004-2006)
- Yamaha YFM350 Bruin Auto 2x4 (2004-2006)
- Suzuki LT-Z250 QuadSport Z (2004-2009)
- John Deere Buck 500 EXT (2004-2005)
- John Deere Buck 500 EX (2004-2005)
- John Deere Buck 500 (2004-2006)
- Bombardier DS650 Baja X (2004)
- Benelli Tornado Tre 900 RS (2004-2005)
- Yamaha YFM450F Kodiak Auto 4x4 (2003-2006)
- Suzuki DR-Z125 (2003-2009, 2012-2014)
- Suzuki DR-Z125L (2003-2009, 2012-2024)
- Kawasaki KX125 (2003)
- Kawasaki KLX125L (2003-2006)
- Kawasaki KLX125 (2003-2006)
- Kawasaki KLF250 Bayou (2003-2008, 2010-2011)
- Kasea Skyhawk 170 (2003-2005)
- Benelli Tornado Tre 900 (2003-2005)
- ATK 125 Enduro (4-Stroke) (2003)
- BMW F650GS Dakar ABS (2002-2004)
- ATK 500 Enduro (2002-2003)
- Kawasaki KEF300 Lakota Sport (2001-2003)
- BMW F650GS (2001-2004)
- Bombardier DS650 Baja (2001-2004)
- Bombardier Traxter 500 4x4 Auto XT (2001-2002, 2005)
- BMW F650GS Dakar (2001-2004)
- BMW F650GS ABS (2001-2003)
- Yamaha YFM400A Kodiak (2000-2004)
- Yamaha YFM400 Big Bear 4x4 (2000-2006)
- Yamaha YFM400 Big Bear 2x4 (2000-2004)
- Bombardier DS650 Racer (2000-2003)
- Bombardier DS650 (2000-2004)
- Yamaha YFM350F Wolverine 4x4 (1999-2005)
- Yamaha TTR225 (1999-2004)
- Suzuki GZ250 (1999-2010)
- Kawasaki KVF300 Prairie 4x4 (1999-2002)
- Kawasaki KVF300 Prairie 2x4 (1999-2002)
- Bombardier Traxter 500 XL (1999-2002, 2005)
- Bombardier Traxter 500 4x4 Auto (1999-2002, 2005)
- BMW F650 SE (1999)
- ATK 500 DT (1999, 2003)
- KTM 400 SX (1998)
- ATK 350 Enduro (1998-1999, 2002)
- ATK 605 Enduro (1998-2003)
- ATK 600 DT (1998-2002)
- Yamaha YZF1000 (1997)
- BMW F650ST (1997)
- BMW F650 (1997-2000)
- Yamaha YFM350U Big Bear 2x4 (1996-1999)
- Suzuki DR200SE (1996-2009, 2013)
- KTM 620 SX (1996-1998)
- KTM 400 RXC (1996-1998)
- Kawasaki ZL600 Eliminator (1996-1997)
- Aprilia Pegaso 650 (1996-2002)
- KTM 620 RXC (1995-1998)
- Kawasaki KEF300 Lakota Utility (1995-2000)
- BMW K75/3A (1995)
- BMW K75/3 (1995)
- Suzuki DR125SE (1994-1996)
- KTM 620 EXC (1994-1997)
- BMW K75A (1994)
- Yamaha YFM400F Kodiak 4x4 (1993-2006)
- KTM 600 EXC (1993)
- ATK 605 CC (1993-2000)
- Yamaha XT225 (1992-2007)
- BMW K100RS FL (1991-1992)
- BMW K100RS FL ABS (1991-1992)
- ATK 350 CC (1991-1999)
- KTM 600 DXC (1989-1990)
- Kawasaki ZX750 Ninja ZX-7 (1989-1990)
- Kawasaki KLF300 Bayou 4x4 (1989-2004)
- Kawasaki KLF300 Bayou 2x4 (1989-2004)
- Suzuki GSX600F Katana (1988-1995)
- KTM 600 MX (1988-1990)
- KTM 600 MXC (1988)
- Kawasaki KLF220 Bayou (1988-2002)
- BMW K100RS ABS (1988-1989)
- BMW K1 (1988-1993)
- BMW K75 (1988-1995)
- Yamaha YFM350X Warrior (1987-2004)
- Yamaha YFM350ER Moto-4 (1987-1995)
- Yamaha YFM350FW Big Bear 4x4 (1987-1999)
- Yamaha SRX250 (1987)
- Yamaha TW200 (1987-2020)
- Suzuki LT300E (1987-1989)
- Yamaha BW350 (1987-1988)
- Kawasaki ZX750F Ninja 750R (1987-1990)
- Kawasaki ZL1000 Eliminator (1987)
- Kawasaki EN450A 454 LTD (1987)
- Yamaha YX600 Radian (1986-1990)
- Yamaha TT225 (1986-1987)
- Yamaha TT350 (1986-1987)
- Yamaha FZ600 (1986-1988)
- Suzuki SP200 (1986-1988)
- Suzuki DR200 (1986-1988)
- Kawasaki KLT185 (1986-1987)
- Kawasaki ZG1000 Concours (1986-1988, 1990-2006)
- Husqvarna TX510 (1984-1986)
- Yamaha XT350 (1985-2000)
- Yamaha XJ700X Maxim X (1985)
- Suzuki GS700E (1985)
- Suzuki GS700ES (1985)
- Yamaha BW200 (1985-1988)
- Suzuki LT250EF (1985-1986)
- Kawasaki KLF185 Bayou (1985-1988)
- Kawasaki ZL900A Eliminator (1985-1986)
- Kawasaki KLT160 (1985)
- BMW K100RT (1985-1988)
- Yamaha XT250 (1984)
- Yamaha FJ600 (1984-1985)
- Kawasaki ZX900 Ninja (1984-1986)
- Kawasaki KZ550F LTD Shaft (1984)
- Kawasaki KL600 (1984)
- Suzuki SP125 (1983, 1986-1988)
- Suzuki SP250 (1983-1984)
- Suzuki SP100 (1983)
- Suzuki GS1100S Katana (1983)
- Suzuki GS1100ES (1983)
- Suzuki GS750ES (1983)
- Suzuki GR650 Tempter (1983)
- Suzuki GN250 (1983, 1985, 1988)
- Suzuki DR100 (1983-1990)
- Kawasaki KZ550M LTD Shaft (1983)
- Kawasaki KZ550F Spectre (1983)
- Honda CB1100F (1983)
- Honda CB1000C Custom (1983)
- BMW K100RS (1983-1988)
- BMW K100 (1983-1986)
- Yamaha XZ550R Vision (1982-1983)
- Yamaha XS400R Seca (1982-1983)
- Yamaha XT200 (1982-1983)
- Yamaha XT125 (1982-1983)
- Suzuki GS1100GK (1982-1983)
- Suzuki GS1100G (1982-1983)
- Suzuki GS1100GL (1982-1983)
- Suzuki DR250 (1982-1985)
- Suzuki GN125E (1982-1983, 1991-1997)
- Suzuki DR125 (1982-1988)
- Honda CB900F Super Sport (1982)
- Honda CB900C Custom (1982)
- Suzuki SP500 (1981-1983)
- Suzuki GN400 (1981-1982)
- Suzuki DR500 (1981-1983)
- Kawasaki KZ550D/H GPZ (1981-1983)
- Honda GL500 Silver Wing (1981)
- Honda XR500R (1981)
- Honda XR250R (1981)
- Honda GL500I Silver Wing Interstate (1981)
- Honda ATC200 (1981)
- Honda ATC185S (1981)
- Honda CM400C Custom (1981)
- Suzuki SP400 (1980)
- Suzuki GS750E (1980-1983)
- Suzuki GS1100E (1980-1983)
- Suzuki DR400 (1980)
- Suzuki GS1100L (1980)
- Kawasaki KZ550A (1980-1983)
- Kawasaki KZ550C LTD (1980-1983)
- Honda GL1100 Gold Wing (1980)
- Honda XR200 (1980-1981)
- Honda CT110 (1980-1981)
- Honda CM400E (1980-1981)
- Honda CB750C Custom (1980-1981)
- Honda CB400T Hawk (1980-1981)
- Honda ATC185 (1980)
- Honda XL125S (1979-1981)
- Honda CX500D Deluxe (1979)
- Honda XR250 (1979-1980)
- Honda XR500 (1979-1980)
- Honda XL500S (1979-1981)
- Honda CX500C Custom (1979-1981)
- Honda XR185 (1979)
- Honda XL185S (1979-1981)
- Honda CM400T (1979-1981)
- Honda CB750L (1979)
- Honda CBX (1979-1981)
- Honda CM400A Hondamatic (1979-1981)
- Suzuki SP370 (1978-1979)
- Suzuki DR370 (1978-1979)
- Honda XL250S (1978-1981)
- Honda CB400A Hondamatic (1978)
- Honda CX500 (1978-1979)
- Honda CB400TII Hawk II (1978-1979)
- Honda CB750K (1977-1981)
- Honda CT125 (1977)
- Honda TL125 (1973-1976)
- Honda CB750A Automatic (1976-1978)
- Yamaha XS500 (1975-1978)
- Honda GL1000 Gold Wing (1975-1979)
- Honda CB750F Super Sport (1975-1981)
- Honda CB400F Super Sport (1975-1977)
- Honda XL125 (1974-1978)
- Honda XL350 (1974-1978)
- Honda XL100 (1974-1978)
- Honda CL200 Scrambler (1974)
- Honda CB200 (1974-1976)
- Honda CL125 Scrambler (1973-1974)
- Honda CB125S (1973-1981)
- Honda XL250 (1972-1976)
- Honda CB350F (1972-1974)
- Honda SL125 (1971-1973)
- Honda CL100/S Scrambler (1971-1973)
- Honda SL100 (1970-1973)
- Honda CB100 Super Sport (1970-1972)
