RAYBESTOS 680544 Part Description
Manufacturer
Product Description

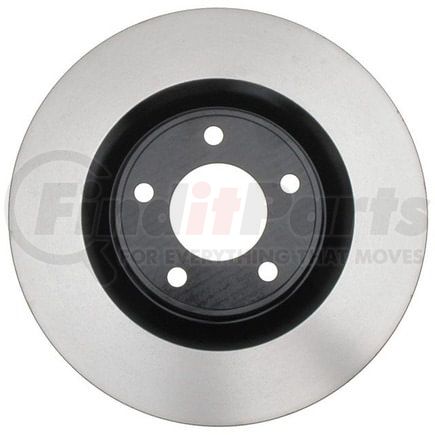

Raybestos Specialty - Truck Brake Rotor
Application Summary
2014-2007 Ford Edge Front, 2015-2007 Lincoln MKX Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 680544 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.83 IN |
| Center Hole Diameter | 71.9 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.546 IN |
| Mounting Bolt Hole Diameter | 13.85 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 12.598 IN |
| Outside Diameter | 320 MM |
| Overall Height | 1.9 IN |
| Overall Height | 48.25 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352541104 |
RAYBESTOS 680544 Cross References
RAYBESTOS 680544 Fits Vehicles
- Lincoln MKX (2007-2015)
- Ford Edge (2007-2015)
