(888) 312-8812 Login SignupRAYBESTOS 980377R Raybestos R-Line Brake Rotor
MSRP: $133.80
$10599
Save $27.81
Limited availability at this price!
In Stock
Get it by Friday, Mar 13
RAYBESTOS 980377R Part Description
Manufacturer
Product Description

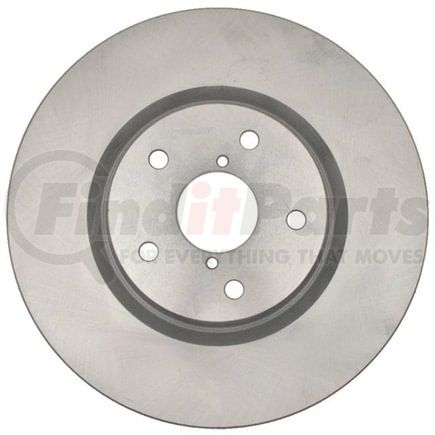

Raybestos R-Line Brake Rotor
Application Summary
2019-2015 Subaru Outback Front, 2019-2015 Subaru Legacy Front, 2021-2015 Subaru WRX Front, 2014-2008 Subaru Tribeca Front, 2007-2006 Subaru B9 Tribeca Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980377R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.283 IN |
| Center Hole Diameter | 58 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.102 IN |
| Discard Thickness | 28 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.507 IN |
| Mounting Bolt Hole Diameter | 12.9 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.179 IN |
| Nominal Thickness | 29.95 MM |
| Outside Diameter | 12.425 IN |
| Outside Diameter | 315.6 MM |
| Overall Height | 2.225 IN |
| Overall Height | 56.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352839003 |
RAYBESTOS 980377R Cross References
RAYBESTOS 980377R Fits Vehicles
- Subaru Outback (2015-2019)
- Subaru Legacy (2015-2019)
- Subaru WRX (2015-2021)
- Subaru Tribeca (2008-2014)
- Subaru B9 Tribeca (2006-2007)
