CENTRIC 120.47027 Part Description
Manufacturer
Product Description
Premium Brake Rotor
Features & Benefits
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

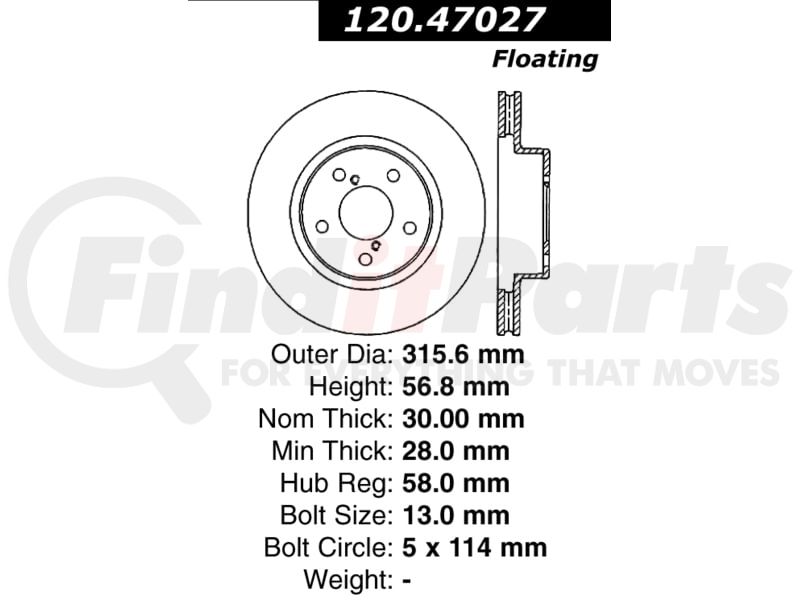

CENTRIC 120.47027 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 2 |
| Hat Id [cntrc] Mm | 146.100 |
| Hat Id [cntrc] In | 5.752 |
| Weight [cntrc] Kgs | 9.940 |
| Weight [cntrc] Lbs | 21.900 |
| Product Grade [cntrc] | Premium |
| Stud/Lug Hole Diameter | 0.512 IN |
| Stud/Lug Hole Diameter | 13.000 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Center Hole Diameter | 2.283 IN |
| Center Hole Diameter | 58.000 MM |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 12.425 IN |
| Outside Diameter | 315.600 MM |
| Overall Height | 2.236 IN |
| Overall Height | 56.800 MM |
| Hat Finish | Painted |
| Nominal Thickness | 30.000 MM |
| Nominal Thickness | 1.181 IN |
| Discard Thickness | 28.000 MM |
| Discard Thickness | 1.102 IN |
