CENTRIC 121.47027 Part Description
Manufacturer
Product Description
Standard Brake Rotor
Features & Benefits
- For heat capacity and strength
- OE Vane Design & Plate Thickness
- Optimal Surface Finish
- For consistent stopping power
- Low Initial Lateral Run-Out and Disc-Thickness Variation
- For smooth, vibration free stopping
- Precision Balanced
- For vibration free performance

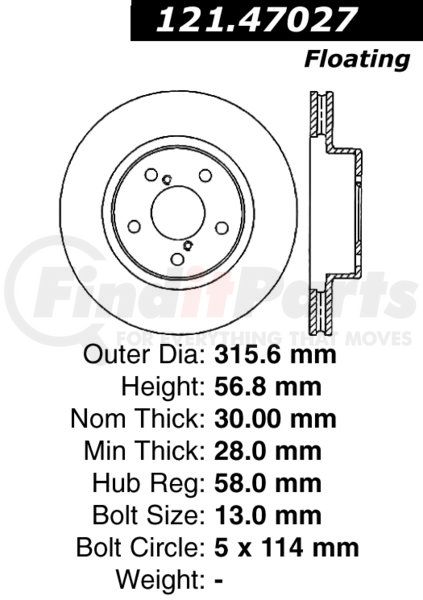

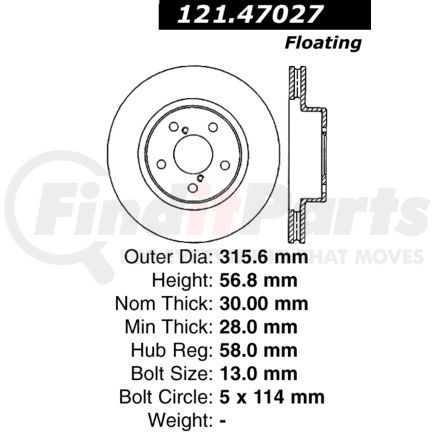

CENTRIC 121.47027 Specifications
Product Attributes
| Hat Id [cntrc] Mm | 146.100 |
| Product Grade [cntrc] | Standard |
| Hat Id [cntrc] In | 5.752 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 9.940 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 21.900 |
| Misc Holes [cntrc] | 2 |
| Stud/Lug Hole Diameter | 0.512 IN |
| Stud/Lug Hole Diameter | 13.000 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Center Hole Diameter | 2.283 IN |
| Center Hole Diameter | 58.000 MM |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 12.425 IN |
| Outside Diameter | 315.600 MM |
| Overall Height | 2.236 IN |
| Overall Height | 56.800 MM |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30.000 MM |
| Discard Thickness | 28.000 MM |
| Discard Thickness | 1.102 IN |
| Hat Finish | Bare |
