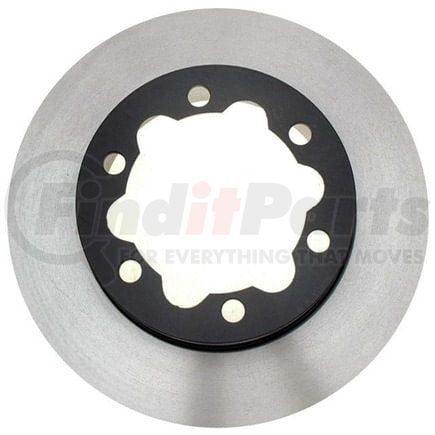

RAYBESTOS 780612 Raybestos Specialty - Truck Brake Rotor

$141.99

Limited availability at this price!

In Stock

Get it by Monday, Mar 16
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details

RAYBESTOS 780612 Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos Specialty - Truck Brake Rotor

Application Summary

2023-2010 Mercedes-Benz Sprinter 3500 Rear, 2018-2007 Freightliner Sprinter 3500 Rear, 2009-2007 Dodge Sprinter 3500 Rear, 2020-2019 Freightliner Sprinter 2500 Rear, 2023-2018 Mercedes-Benz Sprinter 3500XD Rear

Features & Benefits

  • OE Fit, Form, and Function
  • Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
  • Cooling Vanes
  • We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
  • Coating
  • All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
  • All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
  • SAE Standard for Tensile Strength
  • Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
  • Turned Finish
  • A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box

RAYBESTOS 780612 Specifications

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 4.724 IN
Center Hole Diameter 120 MM
Conventional Or Drum-In-Hat Type Rotor Drum-In-Hat
Discard Thickness 0.98 IN
Discard Thickness 24.9 MM
Harmonize Code 8708.30.5030
Mounting Bolt Hole Circle Diameter 5.7 IN
Mounting Bolt Hole Circle Diameter 144.8 MM
Mounting Bolt Hole Diameter 5.7 IN
Mounting Bolt Hole Diameter 144.8 MM
Nominal Thickness 1.1 IN
Nominal Thickness 27.95 MM
Outside Diameter 11.929 IN
Outside Diameter 303 MM
Overall Height 3.661 IN
Overall Height 93 MM
Salability Restrictions No
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
Canadian Harmonizing Tariff Code 8708309990
Harmonized Tariff Code (HTS) 8708305030
UPC 00829352667521

RAYBESTOS 780612 Cross References

RAYBESTOS 780612 Fits Vehicles

  • Freightliner Sprinter 2500 (2019-2020)
  • Freightliner Sprinter 3500 (2007-2020)
  • Mercedes-Benz Sprinter 2500 (2019-2020)
  • Mercedes-Benz Sprinter 3500XD (2018-2024)
  • Mercedes-Benz Sprinter 4500 (2019-2023)
  • Mercedes-Benz Sprinter 3500 (2010-2024)
  • Volkswagen Crafter Van (2008-2017)
  • Dodge Sprinter 3500 (2007-2009)
