CENTRIC 120.66080 Part Description
Manufacturer
Product Description

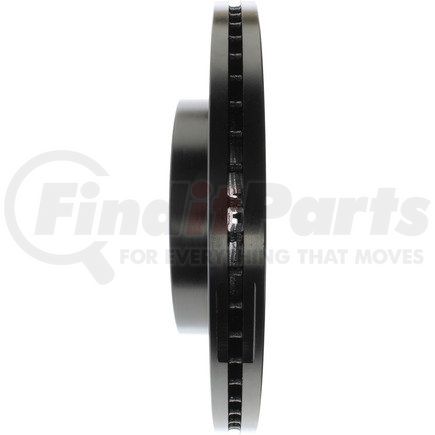

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.66080 Specifications
Product Attributes
| Misc Holes [cntrc] | 3 |
| Weight [cntrc] Lbs | 29.800 |
| Disc Mounting [cntrc] | Floating |
| Hat Id [cntrc] Mm | 182.000 |
| OEM Vane Count [cntrc] | 57 |
| Vane Style [cntrc] | Straight |
| Hat Id [cntrc] In | 7.165 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 13.520 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 28.000 MM |
| Discard Thickness | 1.102 IN |
| Nominal Thickness | 30.000 MM |
| Nominal Thickness | 1.181 IN |
| Hat Finish | Painted |
| Overall Height | 2.315 IN |
| Overall Height | 58.800 MM |
| Outside Diameter | 343.000 MM |
| Outside Diameter | 13.504 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 3.094 IN |
| Center Hole Diameter | 78.600 MM |
| Mounting Bolt Hole Circle Diameter | 5.508 IN |
| Mounting Bolt Hole Circle Diameter | 139.900 MM |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Diameter | 0.626 IN |
| Stud/Lug Hole Diameter | 15.900 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590359282 |
CENTRIC 120.66080 Cross References
CENTRIC 120.66080 Fits Vehicles
- Cadillac Escalade ESV (2021-2024)
- Chevrolet Silverado 1500 LTD (2022)
- GMC Sierra 1500 Limited (2019, 2022)
- Cadillac Escalade (2021-2024)
- GMC Yukon (2021-2024)
- GMC Yukon XL (2021-2024)
- Chevrolet Suburban (2021-2024)
- Chevrolet Tahoe (2021-2024)
- Chevrolet Silverado 1500 (2019-2024)
- GMC Sierra 1500 (2019-2024)
