(888) 312-8812 Login SignupRAYBESTOS 582458FZN Raybestos Element3 Coated Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 582458FZN Part Description
Manufacturer
Product Description

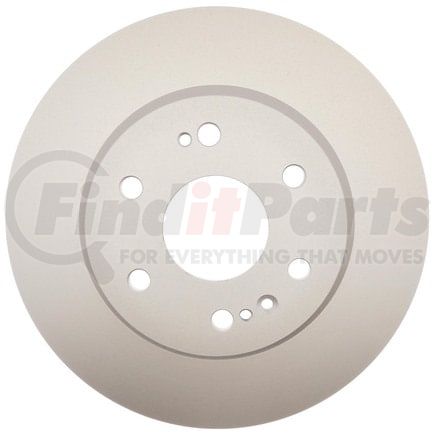

Raybestos Element3 Coated Brake Rotor
Application Summary
2022-2019 Chevrolet Silverado 1500 Front, 2022-2019 GMC Sierra 1500 Front, 2022-2021 Chevrolet Tahoe Front, 2022-2021 GMC Yukon Front, 2022-2021 Chevrolet Suburban Front, 2022 Chevrolet Silverado 1500 LTD Front
Features & Benefits
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- RPT® Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 582458FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.1 IN |
| Center Hole Diameter | 78.7 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.1 IN |
| Discard Thickness | 28.0 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.7 IN |
| Inside Diameter | 220.5 MM |
| Mounting Bolt Hole Circle Diameter | 5.5 IN |
| Mounting Bolt Hole Circle Diameter | 139.7 MM |
| Mounting Bolt Hole Diameter | 0.6 IN |
| Mounting Bolt Hole Diameter | 16.0 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.2 IN |
| Nominal Thickness | 30.0 MM |
| Outside Diameter | 13.5 IN |
| Outside Diameter | 343.0 MM |
| Overall Height | 2.3 IN |
| Overall Height | 58.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Weight [cntrc] Kgs | 13.2 |
| Weight [cntrc] Lbs | 29.2 |
| Material | Cast Iron |
| Maximum Brake Diameter (Discard) | 343.0 MM |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Grade Type | Regular |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213318449 |
RAYBESTOS 582458FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH653387P |
| AutoZone | 72099DL, 72099DG, 72099SD |
| BRAKEBEST | 582458RGS |
| CENTRIC | 120.66080, 121.66080 |
| Cadillac | 13553983, 84879622, 87839222, 87869716 |
| Centric Parts | 120.66080, 121.66080 |
| Chevrolet | 13553983, 84879622, 87839222, 87869716 |
| Dura Corp | BR901832, BR901832-01 |
| DuraGo | BR901832, BR901832-01, BR901832-02 |
| Dynamic Friction Company | 600-47080, 604-47080 |
| GM | 13514522 |
| GMC | 13553983, 84879622, 87839222, 87869716 |
| General Motors | 13514522, 13553983 |
| Qualis | 41355 |
| TopNotch | TN582458GEO |
| WORLDPAC | 1407-653387, 1427-653420 |
| Wagner Brake | BD180849E |
| Winhere | 6622330 |
RAYBESTOS 582458FZN Fits Vehicles
- Chevrolet Silverado 1500 LTD (2022)
- Cadillac Escalade (2021-2024)
- Cadillac Escalade ESV (2021-2024)
- GMC Yukon (2021-2024)
- GMC Yukon XL (2021-2024)
- Chevrolet Suburban (2021-2024)
- Chevrolet Tahoe (2021-2024)
- Chevrolet Silverado 1500 LD (2019)
- GMC Sierra 1500 Limited (2019, 2022)
- GMC Sierra 1500 (2019-2024)
- Chevrolet Silverado 1500 (2019-2024)
