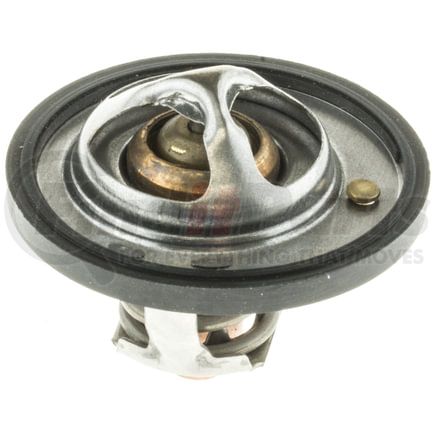

(888) 312-8812 Login SignupMOTORAD 421-180 Thermostat-180 Degrees w/ Seal
Tap to view 4 more
$849
Limited availability at this price!
In Stock
Get it by Thursday, Mar 19
MOTORAD 421-180 Part Description
Manufacturer
Product Description
Thermostat-180 Degrees w/ Seal
Features & Benefits
- High grade stainless steel and copper construction
- Meets or exceeds OEM standards
- Consistent and precise response to cooling system needs
- Original equipment design for worry-free direct fit replacement
- 100% tested and calibrated
MOTORAD 421-180 Specifications
Product Attributes
| Number Of Seals | 1 |
| Gasket/Seal Material | Rubber |
| Sealing Flange Outside Diameter | 2.05 IN |
| Height Between Flanges | 1.29 IN |
| Type | Estándar |
| Height | 1.84 IN |
| Gasket Or Seal Included | Yes |
| Jiggle Pin Weep Hole | Yes |
| Seal Type | O-Ring |
| Start to Open Temperature | 180.0 FA |
| Installation Tool Included | No |
| Flange Thickness | 0.05 in |
| Electric | No |
| Gasket Or Seal Material | Caucho |
| Bypass Flange Length | 0.00 IN |
| Bypass Flange Diameter | 0.00 IN |
| Seal Quantity | 1 |
| Engine Coolant Thermostat Quantity | 1 |
| Jiggle Pin Check Valve Quantity | 1 |
| Includes Jiggle Pin Check Valve | Yes |
| Gasket Quantity | 0 |
| Material | Copper |
| Gasket or Seal Pre-Installed | Yes |
| MAP Controlled | No |
| Design | OEM |
| Color | Brass |
| Gasket Or Seal Required | Yes |
| Bolt Hole Quantity | 0 |
| Grade Type | OEM |
| Sealing Flange Outside Diameter | 52.07 MM |
| Height Between Flanges | 32.77 MM |
| Height | 46.74 MM |
| Start to Open Temperature | 82.22 CE |
| Flange Thickness | 1.27 MM |
| 9812 | 0.00 MM |
| Bypass Flange Diameter | 0.00 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 9032100090 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | IL |
| Harmonized Tariff Code (HTS) | 9032100090 |
| UPC | 00055644421803 |
MOTORAD 421-180 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 12T90D, 131-126 |
| AISIN | THS-005 |
| Autopart International | 1601-290236 |
| Balkamp | 386-180 |
| CST | 42180 |
| Carquest Premium Caps and Stats | 14378 |
| Duralast | 42180 |
| FVP Caps & Thermostats | 421-180 |
| Federated | 421-180 |
| GATES | 33920 |
| General Motors | 91174505, 91176890 |
| MAHLE | TX18782 |
| Mighty Distributing System | 42180 |
| Motorad | 421-180 |
| Murray Temperature Control | 42180 |
| N/A | 143-0861, 1767077E00 |
| OMNIPARTS | 421-180 |
| Omnicraft | QRT67 |
| Parts Master | 52180 |
| Parts Plus | P42180 |
| Pep Boys | 421-180 |
| Pronto | 421-180 |
| REACH COOLING | T4-10166 |
| Renault | 421-180 |
| Stant | 14378 |
| Suzuki | 1767077, 1767063J00, 1767065D00 |
| Worldparts | 9421180 |
MOTORAD 421-180 Fits Vehicles
- Suzuki Ciaz (2016-2018)
- Suzuki S-Cross (2014-2018)
- Suzuki SX4 Crossover (2012)
- Suzuki Kizashi (2010-2013, 2015)
- Suzuki Swift (2007-2017)
- Suzuki Grand Vitara (2009-2017)
- Suzuki SX4 (2007-2014)
- Chevrolet Tracker (1999-2003, 2005-2008)
- Suzuki Vitara (2003)
- Suzuki Esteem (2002)
- Suzuki Aerio (2002-2007)
