NGK SPARK PLUGS 48816 Part Description
Manufacturer
Product Description

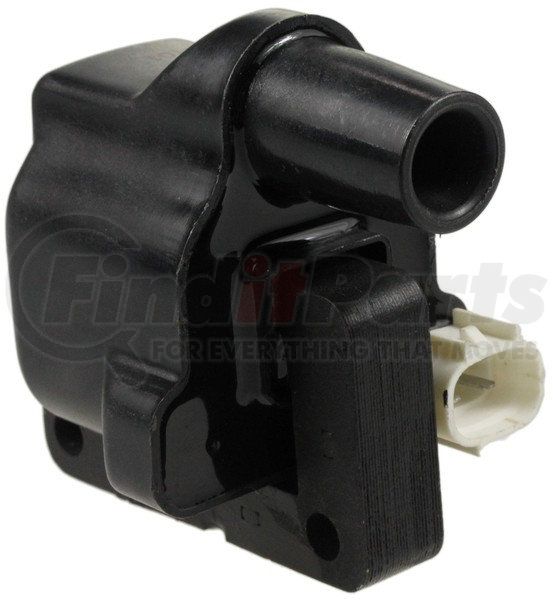

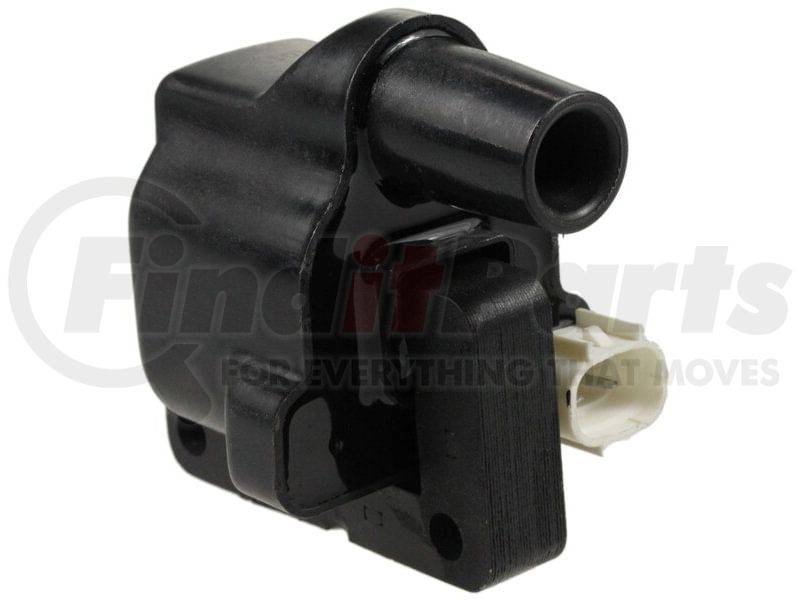

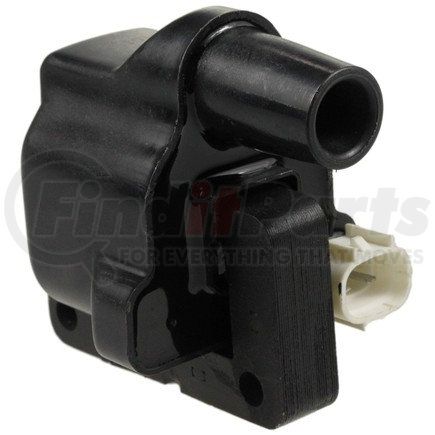

NGK HEI Ignition Coil
Features & Benefits
- NGK's premium ignition coils are manufactured to the highest durability and operational performance standards to meet OE fit, form and function.
- OE QUALITY: Vacuum-sealed premium epoxy resin and thermoplastic coil housings provide superior dielectric strength, voltage insulation and durability
- Unlike many competitors, NGK coils include mounting hardware and necessary components required for certain applications to ensure easy, worry free installation.
- OPTIMAL PERFORMANCE: Precision coil windings and laminations maximize outputs, custom NGK ASIC chipset optimizes efficiency, prevents component damage
- Backed by a 3 year/36,000-mile warranty.
- EASE OF INSTALLATION: Includes mounting hardware and necessary components required for certain applications to ensure worry-free installation
- THE NGK DIFFERENCE: Featuring superior materials and design enhancements, NGK's problem solving solutions are backed by a 3 year/36,000 mile warranty
- EXTENSIVE TESTING: NGK ignition coils must pass extreme testing during manufacturing to ensure the highest quality and durability standards are met
- PRODUCT ENGINEERING: Advanced flow and stress modeling systems preemptively identify and avoid common failure points found in OE and competitor coils
NGK SPARK PLUGS 48816 Specifications
Product Attributes
| Part Number | U1036 |
| Stock Number | 48816 |
| Voltage | 12.0 2H |
| Ignition Type | Electronic |
| Coil Type | HEI |
| Oil Filled | No |
| Terminal Type | Blade |
| Terminal Quantity | 2 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Mounting Bracket Included | No |
| Color | Black/White |
| Connector Quantity | 1 |
| Mounting Hardware Included | No |
| Grade Type | Regular |
| Mount Type | Bolt-On |
| Mounting Hole Quantity | 3 |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 36000 |
| Warranty Time UOM | MO |
| Warranty Time | 36 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8511300080 |
| UPC | 00087295488164 |
| UNSPSC | 26101769 |
NGK SPARK PLUGS 48816 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | F507, F511, F521 |
| Altrom Group | 1415053 |
| BWD | E205, E57, E633 |
| Beck/Arnley | 178-8218, 178-8219 |
| Bosch | 00232 |
| Delphi | GN10039, GN10292, GN10391 |
| Echlin | IC134, IC36, IC44 |
| Ford | F0BZ-12029-A, F1CZ-12029-A |
| General Motors | 88921322 |
| Hitachi Automotive | IGC0044 |
| Mazda | B6S7-18-10XA, B6S8-18-10XA, F269-18-10X, F2G8-18-10X, F2G9-18-10X |
| Mighty Distributing System | 4-511 |
| Motorcraft | DGE447, DGE448 |
| N/A | F0BZ12029A, B6S71810XA |
| NGK | 48816 |
| NGK SPARK PLUGS | U1036, 48816 |
| STANDARD IGNITION | UF-221 |
| Standard Import | UF221 |
| Standard Motor Products | UF-221 |
| Walker Products | 920-1075 |
NGK SPARK PLUGS 48816 Fits Vehicles
- Mazda B2600 (1990-1993)
- Mazda B2200 (1990-1993)
- Mazda Protege (1990-1994)
- Mazda 323 (1990-1995)
- Mazda MX-3 (1992-1993)
- Mercury Tracer (1991-1996)
- Ford Festiva (1990-1993)
- Ford Escort (1991-1996)
