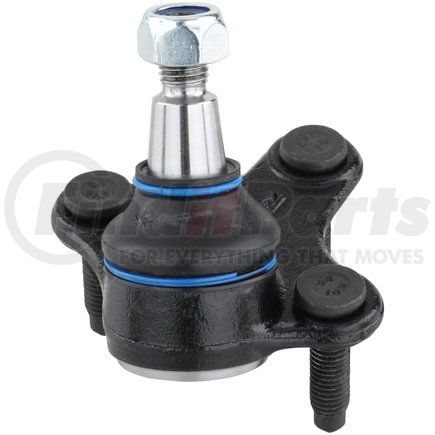

DELPHI TC1732 Ball Joint

Name: Delphi TC1732 Ball Joint
SKU: tc1732
Price: 32.49 USD
Availability: InStock

Tap to view
19 more

Tap to view 23 more

$32.49

Limited availability at this price!

1 Day Lead Time

Get it by Thursday, Mar 5

No Hassle Return Policy Details

Free Economy shipping on orders over $499 details

This item will ship about 1 day after the date of purchase

DELPHI TC1732 Part Description

Ball Joint

Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
Delphi machines to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Position(s)	Front Right Lower
Item Grade	Standard Replacement
Material	Steel
Maximum Outside Diameter	1.969 IN
Maximum Outside Diameter	50.00 MM
Color	Black
Stud Thread Diameter	0.472 IN
Stud Thread Diameter	12 MM
Castle Nut Included	No
Grease Fitting Included	No
Suspension Grade Type	Standard Replacement
Bushings Included	No
Dust Boot Included	Yes
Ball Joint Assembly	Yes
Width	92 MM
Cotter Pin Included	No
Cotter Pin Hole	No
Mounting Hardware Included	Yes
Mounting Bolt Length	1.772 IN
Mounting Bolt Length	45.00 MM
Washers Included	No
Height	3.504 IN
Height	89.00 MM
Nuts Included	Yes
Mounting Hole Quantity	3
Adjustable	No
Greaseable	No
Stud Thread Length	0.591 IN
Stud Thread Length	15 MM
Stud Type	Threaded
Mounting Type	Bolt-In
Distance Between Mounting Holes	44.10 MM
Dust Boot Material	Rubber
Mounting Bolt Shank Diameter	0.394 IN
Mounting Bolt Shank Diameter	10.00 MM
Mounting Bolt Head Diameter	0.669 IN
Mounting Bolt Head Diameter	17.00 MM
Mounting Bolts Included	Yes
Mounting Bolt Thread Pitch	1.5 MM
Mounting Bolt Thread Length	0.965 IN
Mounting Bolt Thread Length	24.50 MM
Mounting Bolt Thread Diameter	10.00 MM
Mount Plate Included	No
Tapered Stud	Yes
Stud Tapered End 2 Diameter	0.831 IN
Stud Tapered End 2 Diameter	21.1 MM
Stud Tapered End 1 Diameter	0.602 IN
Stud Tapered End 1 Diameter	15.3 MM
Stud Thread Pitch	1.5 MM
Mounting Bolt Thread Diameter	0.390 IN

Harmonized Tariff Code (Schedule B)	8708807000
Country of Origin (Primary)	TR
Harmonized Tariff Code (HTS)	8708806590
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604253564
VMRS Code	016001015
UNSPSC	25174203
