(888) 312-8812 Login SignupDORMAN BJ43024XL Suspension Ball Joint
Tap to view 4 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >

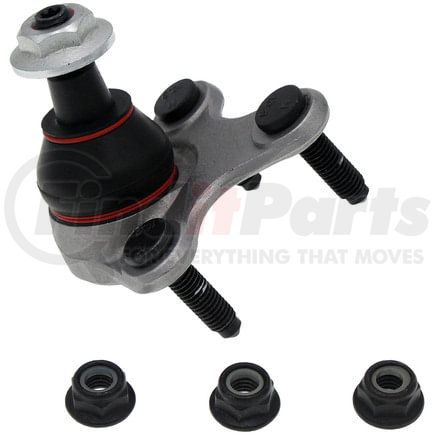

DORMAN BJ43024XL Part Description
Manufacturer
Product Description
Suspension Ball Joint
Application Summary
Audi 2022-14, Audi 2012-08, Seat 2022-14, Volkswagen 2022-06
Features & Benefits
- Extended-life construction - this ball joint is built with features to deliver smooth performance and extended durability for demanding drivers
- Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
- Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
- Premium corrosion resistance - WeatherShield external coating to resist corrosion
Suspension, Ball, Joint, Joints, Balls, Suspensions
Suspension Ball Joint
DORMAN BJ43024XL Specifications
Product Attributes
| Ball Joint Assembly | Oui |
| Width | 92.13 MM |
| Type | Con perno |
| Cotter Pin Included | Non |
| Cotter Pin Hole | Non |
| Mounting Hardware Included | Oui |
| Mounting Bolt Length | 33 MM |
| Washers Included | Non |
| Height | 84.91 MM |
| Nuts Included | Oui |
| Mounting Hole Quantity | 3 |
| Adjustable | Non |
| Greaseable | Non |
| Stud Thread Length | 18 MM |
| Mounting Hole Diameter | 10 MM |
| Wrench Size | 12 mm MM |
| Stud Type | Cónico |
| Mounting Type | Atornillado |
| Distance Between Mounting Holes | 66.5 MM |
| Dust Boot Material | Policloropreno |
| Bushing Quantity | 0 |
| Mounting Bolt Shank Diameter | 8.75 MM |
| Mounting Bolt Head Diameter | 17.79 MM |
| Mounting Bolts Included | Oui |
| Mounting Bolt Thread Pitch | 1.5 MM |
| Mounting Bolt Thread Length | 24.98 MM |
| Mounting Bolt Thread Diameter | 10 MM |
| Mount Plate Included | Oui |
| Tapered Stud | Oui |
| Stud Taper Per Foot | 0.1 IN |
| Stud Tapered End 2 Diameter | 15.2 MM |
| Stud Tapered End 1 Diameter | 21.3 MM |
| Stud Thread Pitch | 1.5 MM |
| Attachment Type | Con perno |
| Ball Joint Installed | Oui |
| Bearing Material | Polímero |
| Bolts/Studs Included | Oui |
| Bushing Included | Non |
| Housing Press Fit Diameter | 0 |
| Package Contents | 1 Bolt |
| Thread Pitch | 1.5 mm |
| Material | Acero |
| Length | 99 MM |
| Color | Noir |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | Non |
| Grease Fitting Included | Non |
| Suspension Grade Type | Rendimiento |
| Bushings Included | Non |
| Dust Boot Included | Oui |
| Maximum Outside Diameter | 61 MM |
| Articulación de rótula instalada | Sí |
| Contenidos del paquete | 1 perno |
| Pernos/argollas incluidos | Sí |
| Thread Pitch | 1.5 mm mm |
| Mounting Bolt Thread Diameter | 10 mm MM |
| Stud Thread Pitch | 1.5 mm MM |
| Stud Thread Diameter | 12 mm MM |
| Paso de rosca | 1,5mm MM |
| Nuts Included | Oui |
| Mounting Bolt Thread Pitch | 1.5 mm MM |
| Espacio de la rosca del tornillo de montaje | 1,5mm MM |
| Espacio de la rosca del espárrago | 1,5mm MM |
| Diámetro de la rosca del tornillo de montaje | 10mm MM |
| Diámetro de la rosca de la argolla | 12 mm MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Warranty Special UOM | LF |
| Warranty Special | Limited |
| UPC | 00194883283428 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DORMAN BJ43024XL Cross References
| Brand | Part Number |
|---|---|
| Delphi | TC1732 |
| MEVOTECH | MK500030 |
| MOOG | K500030 |
| MOOG Chassis Products | K500030 |
| Mevotech Original Grade | GK500030 |
| Mevotech Supreme | MK500030 |
| Volkswagen | 3C0407366A, 3C0407366B, 5QM407366 |
DORMAN BJ43024XL Fits Vehicles
- Seat Formentor (2021)
- Seat Arona (2018-2024)
- Volkswagen Taos (2021-2024)
- Seat Tarraco (2019-2024)
- Audi Q3 (2019-2024)
- Volkswagen Arteon (2019-2023)
- Volkswagen Jetta (2019-2024)
- Audi Q2 Quattro (2018-2020)
- Audi Q2 (2018-2024)
- Volkswagen Tiguan (2018-2024)
- Audi RS3 (2017-2020, 2022-2024)
- Seat Ateca (2017-2024)
- Audi RS Q3 (2017-2018, 2021-2024)
- Volkswagen Golf Alltrack (2017-2019)
- Volkswagen Golf R (2015-2019, 2022-2024)
- Audi A3 Sportback e-tron (2016-2018)
- Volkswagen Golf SportWagen (2015-2019)
- Volkswagen Golf (2015-2021)
- Volkswagen GTI (2015-2024)
- Audi A3 Quattro (2015-2020, 2022-2024)
- Audi A3 (2014-2020, 2022-2024)
- Seat Leon (2014-2023)
- Volkswagen Passat CC (2009-2012)
- Audi S3 (2008-2012, 2014-2020, 2022-2024)
- Volkswagen CC (2009-2017)
- Volkswagen Passat (2006-2010)
DORMAN BJ43024XL Customer Reviews
No reviews yet
Be the first to review this product!
DORMAN BJ43024XL Manufacturer Information
Dorman® is a trusted supplier of premium-quality replacement parts, hardware, and fasteners to the automotive aftermarket. Since 1918, it has introduced thousands of these replacement parts that customers could once only get from original equipment manufacturers. Dorman believes that customers should always come first. So its dedicated team of engineers and designers creates each Dorman product with only one goal in mind—to make repair tasks easier and faster for mechanics and to save vehicle owners money from expensive repairs. Dorman continually expands its product line-up to offer a broader range of hard-to-find parts and accessories that could replace rare or expensive OEM parts.
