DELPHI TA1069 Part Description
Manufacturer
Product Description

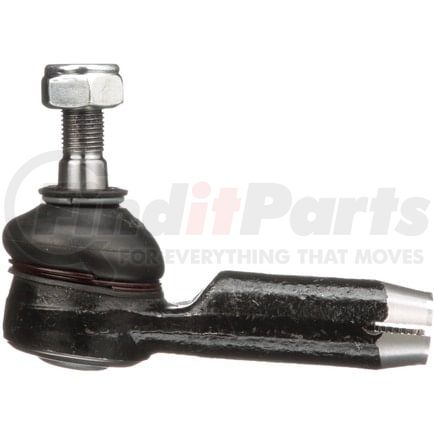

Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA1069 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 35 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 64.00 MM |
| Housing Material | Steel |
| Tube Diameter | 0.787 IN |
| Tube Diameter | 20.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 0.63 lb |
| Cone Outside Diameter | 12.50 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 2.913 IN |
| Length - Stud Center to End | 74.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.394 IN |
| End 1 Thread Diameter | 10.00 MM |
| Shank Length | 12.50 MM |
| Stud Length | 12.50 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.492 IN |
| Stud Length | 0.492 IN |
| Cone Outside Diameter | 0.492 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604244678 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA1069 Cross References
| Brand | Part Number |
|---|---|
| Audi | 811 419 812 A, 8A0 419 812 |
| Beck/Arnley | 101-3740 |
| CORTECO | 49398629 |
| DORMAN | T2748, T2748PR |
| Dorman | 534-412 |
| Import Direct | ER01008 |
| MAS Industries | T2748 |
| MEYLE | 1160203916, 116 030 3924, 116 030 7197 |
| MOOG Chassis Products | ES2748 |
| Mcquay-Norris | ES2748 |
| Mevotech | MES2748 |
| N/A | GES2748, T2748PR, 811419812B, 606635026 |
| TRW | JTE144 |
| VAICO | V10-7079 |
| Volkswagen | 811 419 812 A |
DELPHI TA1069 Fits Vehicles
- Audi Coupe Quattro (1990-1991)
- Audi Quattro (1984-1985)
- Audi 4000 Quattro (1986-1987)
- Audi Cabriolet (1994-1998)
- Audi 90 Quattro (1988-1995)
- Audi 90 (1988-1991, 1993-1995)
- Audi 80 (1988-1992)
- Audi 80 Quattro (1988-1992)
- Volkswagen Quantum (1982-1988)
- Audi 4000 (1982-1987)
- Audi Coupe (1981-1987)
