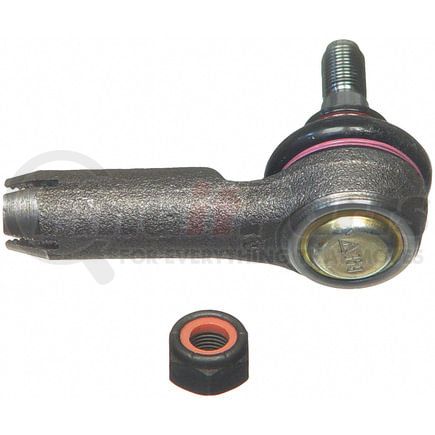

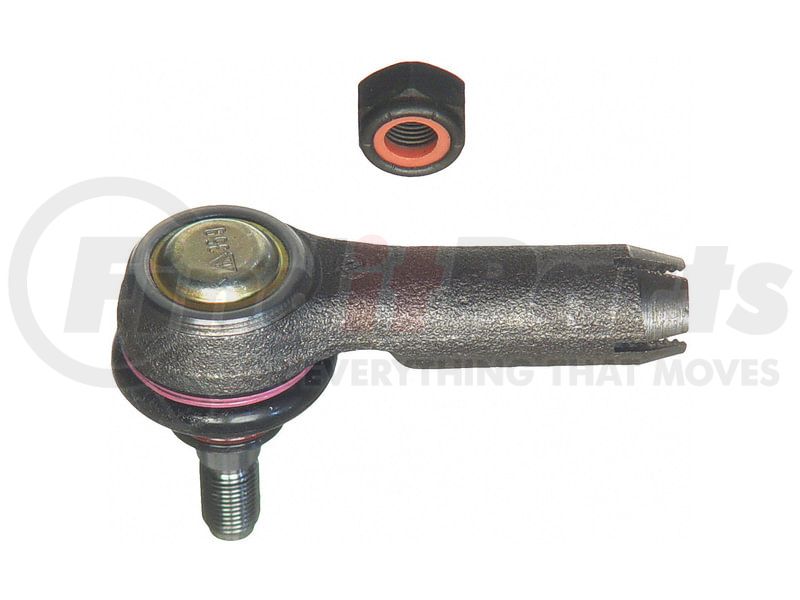

(888) 312-8812 Login SignupMOOG ES2748 MOOG ES2748 Tie Rod End
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MOOG ES2748 Part Description
Manufacturer
Product Description
Tie Rod End
Application Summary
1984-1987 Audi 4000 Quattro (Front Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1981-1987 Audi 4000 (Front Outer) (Qualifier: 2.905 (in) Length, Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1981-1987 Audi Coupe (Front Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1984-1985 Audi Quattro (Front Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1994-1998 Audi Cabriolet (Front Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1988-1992 Audi 80 (Front Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1988-1992 Audi 80 Quattro (Front Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1988-1995 Audi 90 (Front Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1988-1995 Audi 90 Quattro (Front Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1990-1991 Audi Coupe Quattro (Front Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1982-1988 Volkswagen Quantum (Front Outer) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces)
Features & Benefits
- RESTORES LIKE-NEW STEERING -- Patented pressed-in cover plate seals out debris and minimizes looseness, reducing bearing wear and promoting longer life
- GREASEABLE SOCKET -- Reduces corrosion and wear by allowing new lubricant to flush contaminants
- ABSORBS IMPACT -- Belleville preload washer helps keep the bearing package tight as bearings wear
- PROBLEM SOLVER® GUSHER BEARING -- Metal-to-metal design provides strength and allows grease to flow through bearing surface for reduced friction and long life
- STRONG AND DURABLE -- Ball studs are heat treated to match or exceed OE requirements to inhibit premature failure and improve fatigue strength
- EASY TO INSTALL -- Precision tolerances for easy installation and steering alignment giving you a perfect fit right out of the box
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on
Moog Outer Tie Rod End - Direct OE replacement -MOOG TIE ROD END, SOLD INDIVIDUALLY -- This high quality tie rod end is designed to consistently produce the right amount of preload to provide proper steering effort; Features a forged and heat treated housing for strength and durability and sealed with a premium polychloroprene to keep out dirt; The bearings include grease grooves that ensure flow of lubrication throughout the tie rod end.Outer
MOOG ES2748 Specifications
Product Attributes
| End 1 Gender | Female |
| End 2 Gender | Female |
| Type | Straight |
| End 2 Thread Diameter | 10.0 MM |
| End 1 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.0 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 2.910 IN |
| End 1 Thread Diameter | 14.0 MM |
| End 1 Gender | FEMALE |
| Type | STRAIGHT |
| Part Description | Steering Tie Rod End |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Remanufactured Part | N |
| Refurbished Part | N |
| UPC | 00080066155616 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
MOOG ES2748 Cross References
| Brand | Part Number |
|---|---|
| 080066155616 | |
| ACDelco | 45A0313 |
| Audi | 811-419-812A |
| Autospecialty | 03-02013, 302013 |
| BAP Geon | 4002002 |
| BREMI | 11812A |
| Beck/Arnley | 101-3740, 101-3184, 101-3192 |
| CEW | 4939011 |
| Centric Parts | 612.33002 |
| Cofap | TDC01000M |
| Coni-Seal | XES2748 |
| DELPHI | TA1069 |
| DORMAN | T2748, T2748PR |
| Dorman | 534-412 |
| Duralast | ES2748 |
| Duralast Gold | DG4011313 |
| ITM Engine Components | 40-02002 |
| Import Direct Chassis | ER01008 |
| Lazorlite | U85-2449 |
| MAS Industries | T2748 |
| MEYLE | 1160203916 |
| Mcquay-Norris | ES2748 |
| Mevotech | MES2748, PES2748 |
| Mevotech Original Grade | GES2748 |
| Mevotech Supreme | MES2748 |
| NAKATA | N186 |
| NAPA | 269-2609, ES2748 |
| NAPA Chassis Parts | 269-2609, ES2748 |
| Perfect Circle | 269-2609 |
| Quinton Hazell | QR1835S |
| Raybestos Brakes | 401-1313, 4011313B |
| Repco | 103-24255 |
| SKF | VKY4834 |
| SUSPENSIA | X01TE0002 |
| Sealed Power | 802-2748, 8022786A |
| TRW | ES2748 |
| TRW Steering and Suspension Parts | ES2748, JTE144, TS3612R |
| VAICO | V10-7079 |
| Vera | 60-05222 |
| Volkswagen | 811419812A |
| Xactfit | 4011313B |
MOOG ES2748 Fits Vehicles
- Audi Quattro (1984-1985)
- Audi Coupe Quattro (1990-1991)
- Audi 4000 Quattro (1984-1987)
- Audi Cabriolet (1994-1998)
- Audi 80 Quattro (1988-1992)
- Audi 90 (1988-1991, 1993-1995)
- Audi 90 Quattro (1988-1991, 1993-1995)
- Audi 80 (1988-1992)
- Volkswagen Quantum (1982-1988)
- Audi Coupe (1981-1987)
- Audi 4000 (1981-1987)
MOOG ES2748 Customer Reviews
No reviews yet
Be the first to review this product!
MOOG ES2748 Manufacturer Information
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
