NGK SPARK PLUGS 3692 Part Description
Manufacturer
Product Description

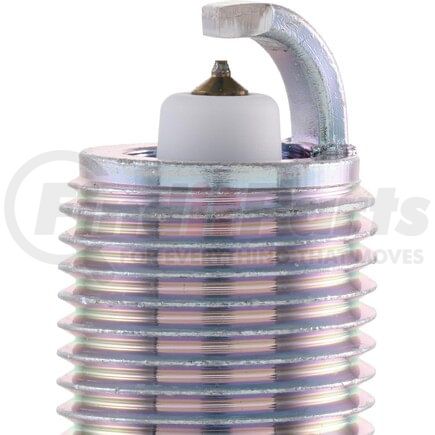

NGK Iridium IX Spark Plug
Features & Benefits
- SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
NGK SPARK PLUGS 3692 Specifications
Product Attributes
| Part Number | TR65IX |
| Stock Number | 3692 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Taper Cut |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | .060 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8 IN |
| Insulator Height | 52.5 MM |
| Manufacturer Heat Range | 6 |
| Seat Type | Tapered |
| Reach | 0.689 IN |
| Thread Diameter | 14.00 MM |
| Short Style Spark Plug | No |
| Service Number | TR65IX |
| Washer(s) Included | No |
| Grade Type | Performance |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 2.07 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.16 IN |
| Center Electrode Design | Fine Wire |
| Center Electrode Projection | Mid Projection |
| Thread Size | M14 - 1.25 |
| Metallurgy | Single Iridium |
| Thread Type Standard | Metric |
| Pre-Gap Size | 1.5 MM |
| Reach | 17.5 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 4.0 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295136928 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS 3692 Cross References
NGK SPARK PLUGS 3692 Fits Vehicles
- Ford Escape (2005)
- Mazda 3 (2004-2005)
- Mazda B4000 (1997-2000)
- Aston Martin Vanquish (2002-2006)
- Ford Ranger (1997-2000)
- Ford Mustang (2003-2004)
- Ford Focus (2003-2010)
- Jaguar X-Type (2002-2005)
NGK SPARK PLUGS 3692 Customer Reviews
No reviews yet
Be the first to review this product!
NGK SPARK PLUGS 3692 Manufacturer Information
Headquartered in Wixom, Michigan, NGK® is a global leader in the design and manufacture of spark plugs for virtually every automotive and commercial vehicle application. It has grown immensely since its inception in 1936 with the expansion of its ignition product line and the introduction of its technical sensor and vehicle electronics line. NGK partners with OEMs and uses only the latest cutting tools to ensure each NGK product meets OE specifications for exact fit, form, and function. With world-class quality and engineering, NGK’s expertise goes beyond manufacturing the most reliable spark plugs for the automotive industry but also providing the best customer service possible.
