RAYBESTOS 580406FZN Part Description
Manufacturer
Product Description

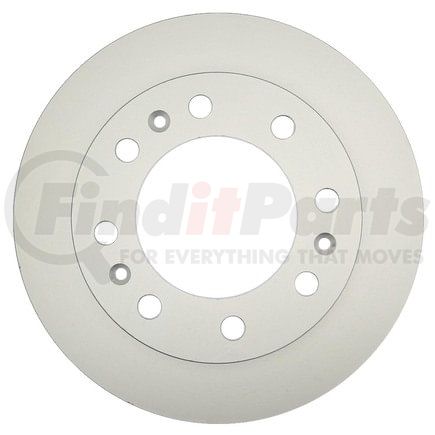

Raybestos Element3 Coated Brake Rotor
Application Summary
2011-2006 Cadillac DTS Front
Features & Benefits
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- RPT® Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 580406FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.65 IN |
| Center Hole Diameter | 118.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.417 IN |
| Discard Thickness | 36 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 6.5 IN |
| Mounting Bolt Hole Circle Diameter | 165.1 MM |
| Mounting Bolt Hole Diameter | 0.645 IN |
| Mounting Bolt Hole Diameter | 16.4 MM |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 1.496 IN |
| Nominal Thickness | 38 MM |
| Outside Diameter | 12.992 IN |
| Outside Diameter | 330 MM |
| Overall Height | 3.315 IN |
| Overall Height | 84.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 8 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213144659 |
RAYBESTOS 580406FZN Cross References
| Brand | Part Number |
|---|---|
| ACDELCO | 177-0993 |
| ADVANCE AUTO PARTS | YH145665, YH145665C, YH145665P |
| AUTOXTRA | AX901022 |
| AUTOZONE | 41218, 41218DG |
| BENDIX | PRT5665 |
| BOSCH | 25010692 |
| BRAKEBEST | 25010692, 580406, 580406FZN, 580406R, 580406RGS |
| CENTRIC | 120.62100, 121.62100, 126.62100CSL, 126.62100CSR, 126.62100SL, 126.62100SR, 127.62100L, 127.62100R |
| Casting Numbers | 211768-C |
| Centric Parts | 120.62100, 121.62100, 126.62100CSL, 126.62100CSR, 126.62100SL, 126.62100SR, 127.62100L, 127.62100R |
| DURA CORP | BR55128, BR901022 |
| DuraGo | 901022, BR901022, BR90102602, BR901026-02 |
| GM | 10388030, 19303810 |
| General Motors | 10388030, 19303810 |
| NEWTEK AUTOMOTIVE | 55128 |
| Newtek Automotive USA | 55128 |
| PROMAX | 14-55128 |
| Qualis | 41218 |
| TRUSTAR | 493785 |
| UAP | 55128 |
| WAGNER BRAKE | BD180179 |
| WINHERE | 6620714 |
RAYBESTOS 580406FZN Fits Vehicles
- Cadillac DTS (2006-2011)
