CENTRIC 120.62100 Part Description
Manufacturer
Product Description

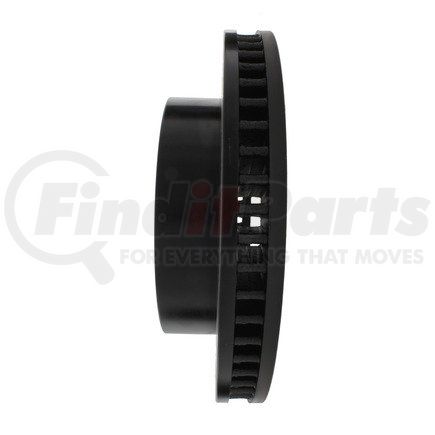

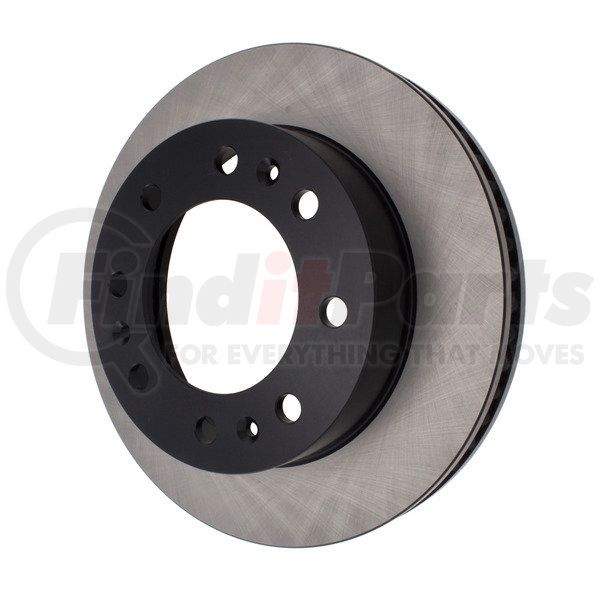

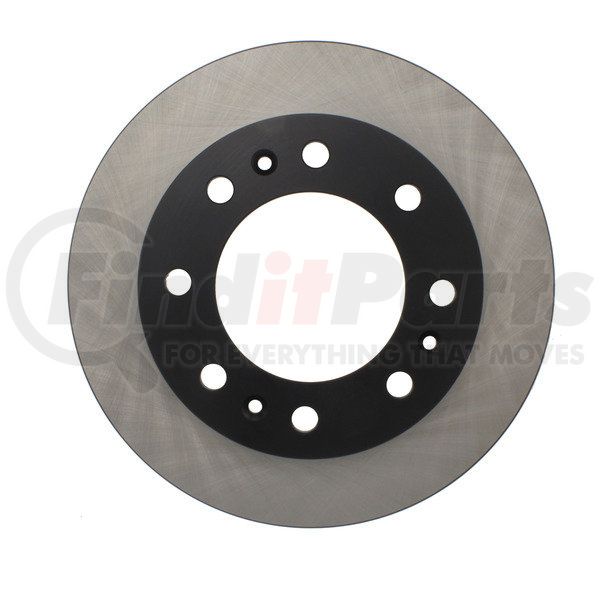

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.62100 Specifications
Product Attributes
| Misc Holes [cntrc] | 3 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 27.600 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 12.550 |
| Discard Thickness | 36.000 MM |
| Discard Thickness | 1.417 IN |
| Nominal Thickness | 1.500 IN |
| Nominal Thickness | 38.100 MM |
| Hat Finish | Painted |
| Overall Height | 84.400 MM |
| Overall Height | 3.323 IN |
| Outside Diameter | 330.000 MM |
| Outside Diameter | 12.992 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 4.650 IN |
| Center Hole Diameter | 118.100 MM |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Stud/Lug Hole Quantity | 8 |
| Stud/Lug Hole Diameter | 0.648 IN |
| Stud/Lug Hole Diameter | 16.450 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890240860 |
CENTRIC 120.62100 Cross References
CENTRIC 120.62100 Fits Vehicles
- Cadillac DTS (2006-2011)
