(888) 312-8812 Login SignupCENTRIC 123.76007 Standard Brake Drum

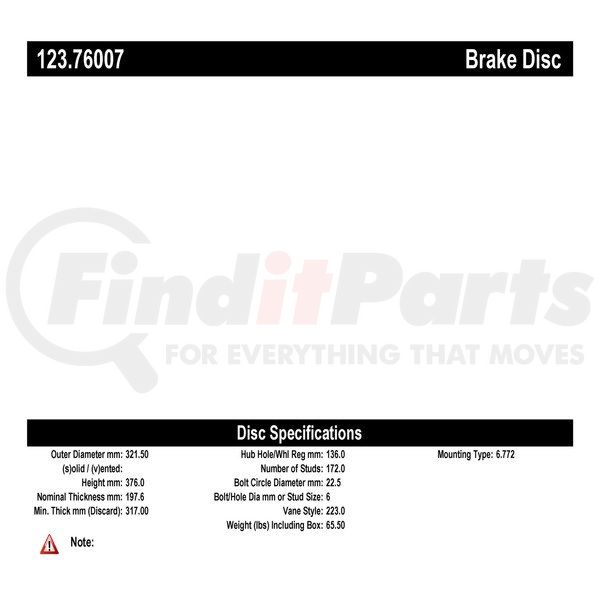

*Representative image - actual part not displayed
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 123.76007 Part Description
Manufacturer
Application Summary
Chevrolet LCF 4500 2019-2016, LCF 4500XD 2019-2017, LCF 5500HD 2019-2017, W4500 Tiltmaster 2009-1997, W5500 Tiltmaster 2009-1999, GMC W4500 Forward 2008-1997, W5500 Forward 2009-1999, Isuzu NPR-HD 2009-1999, NPR-HD 2018-2012, NPR-XD 2018-2015, NQR 2017-1998
CENTRIC 123.76007 Specifications
Product Attributes
| Maximum Brake Diameter (Discard) | 321.500 MM |
| Bolt Hole Quantity | 6 |
| Outside Diameter | 376.000 MM |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 22.500 MM |
| Nominal Drum Diameter | 12.598 IN |
| Bolt Circle Diameter [cntrc] In | 8.750 |
| Bolt Circle Diameter [cntrc] Mm | 222.250 |
| Friction Surface Width [cntrc] In | 5.354 |
| Friction Surface Width [cntrc] Mm | 136.000 |
| Height [cntrc] In | 7.776 |
| Height [cntrc] Mm | 197.500 |
| Hub Hole / Register [cntrc] In | 6.770 |
| Hub Hole / Register [cntrc] Mm | 171.958 |
| Misc Holes [cntrc] | 4 |
| Mounting Type [cntrc] | Floating |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 12.657 IN |
| Outside Diameter | 14.803 IN |
| Mounting Hole Diameter | 0.886 IN |
| Nominal Drum Diameter | 320.000 MM |
CENTRIC 123.76007 Cross References
CENTRIC 123.76007 Fits Vehicles
- Chevrolet LCF 4500XD (2017-2019)
- Chevrolet LCF 4500 (2016-2019)
- Isuzu NPR-XD (2015-2018)
- Chevrolet LCF 5500HD (2017-2019)
- Isuzu NPR-HD (1999-2009, 2012-2018)
- Isuzu NQR (1998-2017)
- Chevrolet W5500 Tiltmaster (1999-2009)
- GMC W5500 Forward (1999-2009)
- Chevrolet W4500 Tiltmaster (1997-2009)
- GMC W4500 Forward (1997-2008)
CENTRIC 123.76007 Customer Reviews
No reviews yet
Be the first to review this product!
CENTRIC 123.76007 Manufacturer Information
Formed in 2017, Centric® brings two of the industry’s leading undercar parts manufacturers, AP Emissions Technologies and Centric Brakes, under one brand. The merger combines more than 90 years’ worth of experience in aftermarket performance exhaust solutions with market leadership in brakes and chassis systems, resulting in an extensive portfolio of undercar components made available to distribution partners worldwide. From brake discs to catalytic converters, APC-Centric products make use of high-quality materials precision engineering to provide reliable performance at a reasonable cost to the customer. Also, as part of the larger APC Automotive Technologies group, APC-Centric has the competitive advantage of vertically-integrated supply chain and access to a global network of R&D, testing, and manufacturing facilities and customer support channels.
CENTRIC 123.76007 Questions & Answers
No questions yet
Be the first to ask a question about this product!
