(888) 312-8812 Login SignupRAYBESTOS 9604 Raybestos R-Line Brake Drum
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 9604 Part Description
Manufacturer
Product Description

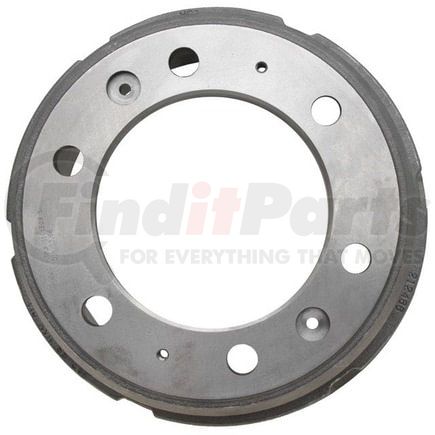

Raybestos R-Line Brake Drum
Application Summary
1993-1991 Isuzu NPR Front, 2018-2010,2008-2001,1997-1988 Isuzu NPR Rear, 2018-2010,2008-1999 Isuzu NPR-HD Rear, 1993-1992 GMC W4500 Forward Front, 2010-1992 GMC W4500 Forward Rear, 1993-1991 Chevrolet W4500 Tiltmaster Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Drums meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Mill Balanced Edges
- R-Line Drums are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
- CNC Machined
- R-Line Drums are CNC machined for precise fitment
RAYBESTOS 9604 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Bolt Hole Quantity | 6 |
| Bolt Thread Pitch | 0.886 IN |
| Bolt Thread Pitch | 22.5 MM |
| Depth | 4.579 IN |
| Depth | 116.3 MM |
| Nominal Drum Diameter | 12.598 IN |
| Nominal Drum Diameter | 320 MM |
| Outer Cooling Fins | No |
| Outside Diameter | 14.799 IN |
| Outside Diameter | 375.9 MM |
| Overall Height | 7.512 IN |
| Overall Height | 190.8 MM |
| Stud/Lug Hole Diameter | 0.886 IN |
| Stud/Lug Hole Diameter | 22.5 MM |
| Stud/Lug Hole Quantity | 6 |
Additional Information
| Country of Origin (Primary) | US |
| UPC | 00747730618876 |
RAYBESTOS 9604 Cross References
| Brand | Part Number |
|---|---|
| 74221086 | |
| AUTOSPECIALTY | JBD511 |
| AUTOZONE | 35078 |
| BRAKEBEST | 9604, 9604DGS, 9604R |
| CENTRIC | 122.76000, 122.76001, 122.76007, 123.76000, 123.76001, 123.76007 |
| Casting Numbers | 212486-C |
| Centric Parts | 122.76000, 122.76001, 122.76007, 123.76000, 123.76001, 123.76007 |
| DURA CORP | BD920170 |
| DuraGo | BR920170, BD920170 |
| GM | 97319056 |
| General Motors | 97319056 |
| ISUZU | 8943820852, 8973190560 |
| MIGHTY DISTRIBUTING SYSTEM | 35078 |
| NEWTEK AUTOMOTIVE | 35078, DR170 |
| Newtek Automotive USA | 35078, DR170 |
| PRONTO | BD920170 |
| Qualis | 35078 |
| UAP | 35078 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X21970 |
| WAGNER | BD126423 |
RAYBESTOS 9604 Fits Vehicles
- Chevrolet LCF 3500HD (2016-2017)
- Chevrolet LCF 3500 (2016-2021)
- Chevrolet LCF 4500HD (2017-2021)
- Isuzu NPR-HD (1999-2008, 2010-2018)
- Isuzu NPR (1988-1997, 2001-2008, 2010-2018)
- Isuzu NQR (1994-1997)
- Chevrolet W5500 Tiltmaster (2004)
- Chevrolet W5500HD Tiltmaster (2004)
- GMC W3500 Forward (1995-2008)
- GMC W4500 Forward (1992-2010)
- Chevrolet W4500 Tiltmaster (1989-2010)
- Chevrolet W3500 Tiltmaster (1995-2009)
