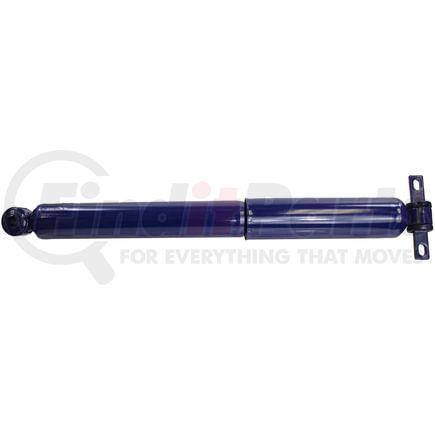

(888) 312-8812 Login SignupMONROE 33194 Monro-Matic Plus Suspension Shock Absorber
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MONROE 33194 Part Description
Manufacturer
Product Description
Monro-Matic Plus Suspension Shock Absorber
Features & Benefits
- CONSISTENT RIDE -- Velocity Proportional Valving (VPV) technology and all-weather fluid containing special additives to reduce friction and ensure smooth rod reaction and an overall smoother ride
- RELIABLE PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- RESTORES RIDE AND HANDLING -- Larger bore provides more efficient damping control to provide consistency and a smooth ride (where applicable)
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while banded piston and bronze reinforced guide provide durability
- GET MORE MILES FROM YOUR RIDE -- Designed and validated to meet OE spec and deliver consistent performance
MONROE 33194 Specifications
Product Attributes
| Lower Mount Code | LS38 |
| Upper Mount Code | XP16 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Body Diameter | 1.988 IN |
| Compressed Length | 14.01 IN |
| Extended Length | 22.53 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL |
| Parts Pack(s) | None |
| Travel Length | 8.52 in |
| Upper Mount Type | XP16 |
| Compressed Length | 355.9 MM |
| Extended Length | 572.3 MM |
| Travel Length | 216.4 MM |
| Upper Mount Type | Cross Pin Mount - Closed Ended, 3/8" Hole ID (Both Ends) X 4" Pin Length (Hole Center to Center) |
| Shock Absorber Rod End Measuring Point | Center of Cross Pin |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Body Diameter | 50.5 MM |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS38 |
| Upper Mount Code | XP16 |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01168 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598172457 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 33194 Cross References
| Brand | Part Number |
|---|---|
| AUTOZONE | TS34-31762B |
| AutoZone | TS3431762B |
| Duralast | TS3431762B |
| FCS | 342778 |
| FCS AUTO PARTS | 342778 |
| GABRIEL | 70010 |
| Honda | 51605SHJA04, 51605SHJA06, 51605SHJA31, 51605SHJL01, 51605SHJL31, 51605SHJL71, 51606SHJA04, 51606SHJA06, 51606SHJA31, 51606SHJL01, 51606SHJL31, 51606SHJL71, 52610SHJA03, 52610SHJA31, 52610SHJL01, 52610SHJL51, 52610SHJL71 |
| KYB | 349105 |
| MasterPro Shocks and Struts | HN101 |
| Monroe Shocks & Struts | 59418 |
| NAPA Proformer | SH70010 |
| NAPA Response | 94341 |
| Sensen | 12140243 |
MONROE 33194 Fits Vehicles
- Honda Odyssey (2005-2017)
