RAYBESTOS 581613 Part Description
Manufacturer
Product Description

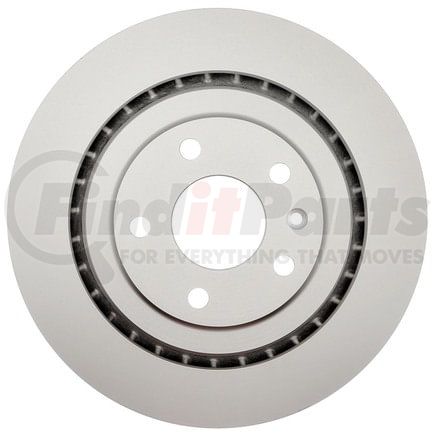

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2019-2014 Chevrolet Corvette Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 581613 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.783 IN |
| Center Hole Diameter | 70.7 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.945 IN |
| Discard Thickness | 24 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 9.425 IN |
| Inside Diameter | 239.4 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120 MM |
| Mounting Bolt Hole Diameter | 0.591 IN |
| Mounting Bolt Hole Diameter | 15 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.024 IN |
| Nominal Thickness | 26 MM |
| Outside Diameter | 13.343 IN |
| Outside Diameter | 338.9 MM |
| Overall Height | 1.909 IN |
| Overall Height | 48.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213157482 |
RAYBESTOS 581613 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH508483 |
| AutoZone | 72053DG, 72053DL |
| BRAKEBEST | 521619RGS, 581613, 581613FZN, 581613R |
| CENTRIC | 120.62141, 121.62141, 126.62141, 126.62141SL, 126.62141SR, 127.62141L, 127.62141R, 226.62141 |
| Centric Parts | 120.62141, 121.62141, 126.62141SL, 126.62141SR, 127.62141L, 127.62141R, 226.62141, 126.62141 |
| Dura Corp | BR901668 |
| DuraGo | BR901668 |
| Dynamic Friction Company | 604-47047, 614-47047 |
| GM | 20981820, 23213199, 23322784 |
| General Motors | 20981820, 23213199, 23322784 |
| MAGMA PRODUCTS | PSR223147 |
| NEWTEK AUTOMOTIVE | R1668 |
| Newtek Automotive USA | R1668 |
| PROMAX | 14-650001 |
| Qualis | 41285, 61316, 61332 |
| WORLDPAC | 1427-566216 |
RAYBESTOS 581613 Fits Vehicles
- Chevrolet Corvette (2014-2019)
