(888) 312-8812 Login SignupGATES 34308 Green Stripe Heavy-Duty Engine Coolant Thermostat
Tap to view 2 more
$4399
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
GATES 34308 Part Description
Manufacturer
Product Description

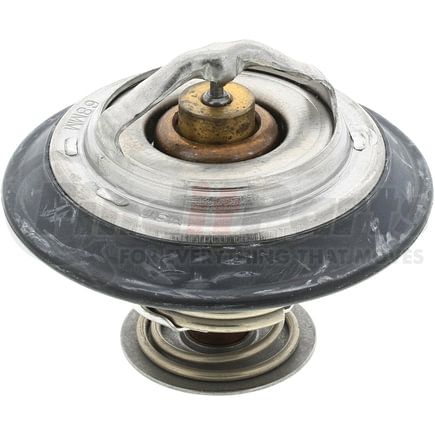

Green Stripe Heavy-Duty Engine Coolant Thermostat
Application Summary
2022-18 Freightliner, Business Class M2, Cummins L9 Diesel, Thermostat
Features & Benefits
- Heavy-gauge brass and stainless steel construction for corrosion resistance
- Quality-controlled factory calibration assures accuracy of opening and closing, regardless of pressure changes
- Temperature sensitive heat motor provides consistent valve response for smooth performance and precise engine cooling
- Jiggle pins for air venting, seals and gaskets make these thermostats equivalent to the original equipment parts
GATES 34308 Specifications
Product Attributes
| Type | Heavy-Duty Thermostat |
| Start to Open Temperature | 180 FA |
| Design | Bottom By-Pass |
| Material | Steel, Copper |
| Height | 2.32 IN |
| Sealing Flange Outside Diameter | 2.85 IN |
| Bypass Flange Diameter | 1.34 IN |
| Flange Height | 1.17 IN |
| Height Between Flanges | 1.15 IN |
| Jiggle Pin Weep Hole | No |
| Jiggle Pin Check Valve Quantity | 0 |
| Gasket Quantity | 0 |
| Seal Quantity | 1 |
| Seal Type | O-Ring |
| Installation Tool Included | No |
| Start to Open Temperature | 82 CE |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8481809015 |
| UPC | 00770075626954 |
| VMRS Code | 042006000 |
| UNSPSC | 41112209 |
GATES 34308 Part Interchanges
| Brand | Part Number |
|---|---|
| Stant | 15218 |
| Carquest | 30448 |
| Cummins | 4941322, 4992231, 5273379, 5282375, 5265799 |
| NAPA Belts/Hose | 34308 |
| NAPA | 476180 |
| Motorad | 4071-80 |
GATES 34308 Fits Vehicles
- Peterbilt 548 (2023)
- Kenworth T880 (2020)
- Kenworth T480 (2023)
- Kenworth T380 (2023)
- Peterbilt 537 (2023)
- International MV (2020-2022)
- International MV607 (2020-2022)
- Peterbilt 335 (2008)
- International HV507 (2019-2022)
- International HV (2020-2021)
- Western Star 4700SF (2012-2021)
- Western Star 4700SB (2013-2021)
- International 4400LP (2019)
- International HV607 (2019-2022)
- International 7500 (2019)
- Mack LR600 (2016-2017)
- Peterbilt 520 (2018, 2020-2021, 2023)
- International 7400 (2017-2019)
- International 4400 (2017-2019)
- International 8600 TranStar (2014-2015)
- Freightliner XC Raised Rail (2015-2017, 2019)
- Freightliner XC Modular Rail (2015-2017, 2019)
- Freightliner XC Lowered Rail (2015-2017, 2019)
- Autocar LLC. Xpert (2014-2015, 2017)
- Volvo VNM (2014-2016)
- Autocar LLC. Xpeditor WXR (2006)
- Kenworth T300 (2008)
- Peterbilt 382 (2012-2016)
- Peterbilt 567 (2015, 2017, 2019-2021, 2023)
- Mack GU5 (2012-2017)
- Peterbilt 384 (2010-2015)
- Peterbilt 320 (2008-2017)
- Mack MRU (2011-2017)
- Mack LEU (2011-2016)
- Mack GU4 (2012-2017)
- Peterbilt 365 (2008-2017)
- Kenworth T800 (2008-2011)
- Kenworth W900 (2007-2010, 2012-2014)
- Peterbilt 340 (2009-2010)
- Kenworth T400 (2010-2012)
- Autocar LLC. Xpeditor WXLL (2006, 2008-2010)
- Autocar LLC. Xpeditor WX (2006-2009)
- Autocar LLC. Xpeditor (2009-2018)
- Peterbilt 348 (2010-2022)
- Peterbilt 337 (2011-2021)
- Kenworth T370 (2008-2010, 2012-2022)
- Kenworth T270 (2010, 2012, 2014-2017, 2019)
- Freightliner 108SD (2012-2019, 2022)
- Freightliner Business Class M2 (2008-2012)
- Freightliner 114SD (2012-2019)
- International 5600i (2008-2009)
- International 5500i (2008-2010)
- Freightliner M2 112 (2010-2024)
- Freightliner M2 106 (2008-2024)
- Temsa Bus TS35 (2016)
- Thomas Transit Liner (2008)
- Sterling Truck LT7500 (2008)
- Crane Carrier Low Entry (2008-2009)
- Workhorse R32 (2007)
- IC Corporation RE School Bus (2019)
- Sterling Truck L7500 (2008-2010)
- Sterling Truck Acterra (2008-2010)
- Blue Bird All American RE (2008-2015, 2019)
- Thomas Saf-T-Liner (2008, 2017-2018)
- Spartan Motors Gladiator (2009-2010)
- Spartan Motors Metro Star (2009-2010)
- Pierce Mfg. Inc. Dash CF (2014)
- American LaFrance ALF Eagle (2012)
- Sterling Truck LT8500 (2008)
- Pierce Mfg. Inc. Velocity (2008-2010, 2013-2014)
- Pierce Mfg. Inc. Impel (2008-2011, 2013-2014)
- Pierce Mfg. Inc. Arrow XT (2009-2011, 2013-2014)
- El Dorado Axess (2008)
- Sterling Truck L8500 (2008-2010)
- Pierce Mfg. Inc. Enforcer (2006-2008)
- Pierce Mfg. Inc. Saber (2006-2011, 2013-2014)
- Pierce Mfg. Inc. Custom (2005-2012)
- American LaFrance Condor (2007-2013)
- El Dorado E-Z Rider II Max (2008-2009)
