(888) 312-8812 Login SignupRAYBESTOS 980109R Raybestos R-Line Brake Rotor
$4199
Limited availability at this price!
1 Day Lead Time
Get it by Wednesday, Mar 18
RAYBESTOS 980109R Part Description
Manufacturer
Product Description

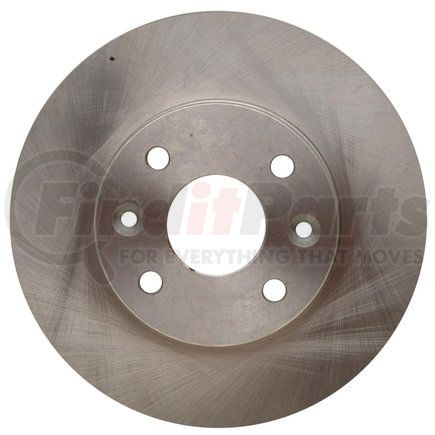

Raybestos R-Line Brake Rotor
Application Summary
2000-1994 Kia Sephia Front, 2000 Kia Spectra Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980109R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.245 IN |
| Center Hole Diameter | 57 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.709 IN |
| Discard Thickness | 18 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 0.507 IN |
| Mounting Bolt Hole Diameter | 12.9 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.787 IN |
| Nominal Thickness | 20 MM |
| Outside Diameter | 9.56 IN |
| Outside Diameter | 242.8 MM |
| Overall Height | 1.717 IN |
| Overall Height | 43.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213019643 |
RAYBESTOS 980109R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | 200497, YH200497, YH200497C |
| AUTOZONE | 44304 |
| BOSCH | 32010860 |
| BRAKEBEST | 32010860, 980109, 980109R, 980109RGS |
| BREMBO | 25899 |
| CENTRIC | 120.50007, 121.50007, 126.50007SL, 126.50007SR, 127.50007L, 127.50007R |
| Casting Numbers | 211562-C |
| Centric Parts | 120.50007, 121.50007, 126.50007SL, 126.50007SR, 127.50007L, 127.50007R |
| DURA CORP | BR31358 |
| DuraGo | BR31358 |
| KIA | 0K2AA33251C, 0K2AZ33251 |
| MIGHTY DISTRIBUTING SYSTEM | 31358 |
| NEWTEK AUTOMOTIVE | 31358 |
| Newtek Automotive USA | 31358 |
| PROMAX | 14-31358 |
| Qualis | 31358, 44304 |
| UAP | 31358 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51731 |
| WAGNER | BD126183 |
| WAGNER BRAKE | BD126183 |
| WINHERE | 4421010 |
RAYBESTOS 980109R Fits Vehicles
- Kia Spectra (2000)
- Kia Sephia (1994-2000)
