(888) 312-8812 Login SignupRAYBESTOS 980824 Raybestos Specialty - Street Performance Coated Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980824 Part Description
Manufacturer
Product Description

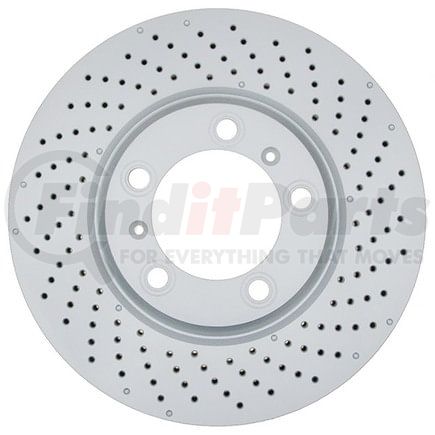

Raybestos Specialty - Street Performance Coated Brake Rotor
Application Summary
2010-2009 Porsche 911 Front Right
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980824 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.9 IN |
| Center Hole Diameter | 98.0 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.3 IN |
| Discard Thickness | 32.0 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 5.1 IN |
| Mounting Bolt Hole Circle Diameter | 130.0 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.3 IN |
| Nominal Thickness | 34.0 MM |
| Outside Diameter | 8.0 IN |
| Outside Diameter | 204.0 MM |
| Overall Height | 2.7 IN |
| Overall Height | 69.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
| Directional or Non-Directional Brake Surface | Directional |
| Inside Diameter | 8.0 IN |
| Inside Diameter | 203.5 MM |
| Material | 322.0 |
| Mounting Bolt Hole Diameter | 0.6 IN |
| Mounting Bolt Hole Diameter | 15.5 MM |
| Bearings Included | No |
| Maximum Brake Diameter (Discard) | 330.0 MM |
| Rust Resistant Coating | Yes |
Additional Information
| Country of Origin (Primary) | DE |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213020335 |
RAYBESTOS 980824 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | N1000407223ZIC |
| ATE BRAKE PRODUCTS | 434102, SP34102 |
| BRAKEBEST | 980824, 980824RGS |
| CENTRIC | 128.37037, 228.37037 |
| Centric Parts | 128.37037, 228.37037 |
| DURA CORP | BR34449 |
| Dynamic Friction Company | 624-02035D |
| PORSCHE | 99635141003 |
| Qualis | 95816 |
RAYBESTOS 980824 Fits Vehicles
- Porsche 911 (2009-2010)
