NGK SPARK PLUGS 96621 Part Description
Manufacturer
Product Description

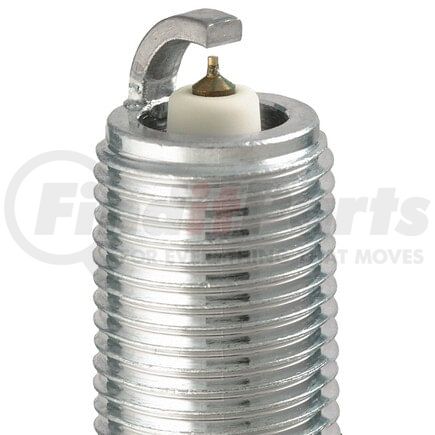

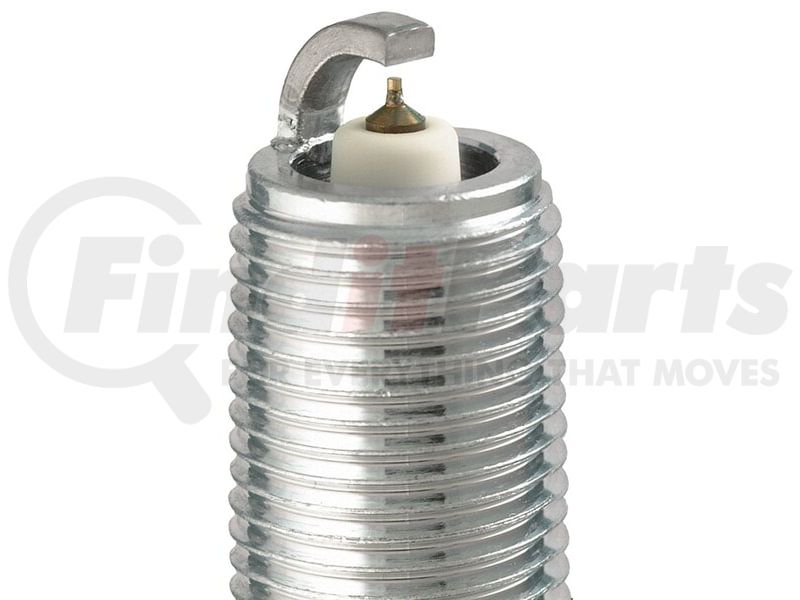

NGK Laser Iridium Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire iridium alloy center electrode provides consistent performance
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Best for vehicles with OE fine wire iridium alloy plugs
NGK SPARK PLUGS 96621 Specifications
Product Attributes
| Part Number | ILTR6G8G |
| Stock Number | 96621 |
| Resistance | 5000 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | Standard |
| Ground Electrode Core Material | Copper |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | .032 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8 IN |
| Insulator Height | 53.00 MM |
| Manufacturer Heat Range | 6 |
| Seat Type | Tapered |
| Reach | 25.00 MM |
| Thread Diameter | 14.00 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295966211 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS 96621 Cross References
| Brand | Part Number |
|---|---|
| CHAMPION | 9016 |
| DENSO Auto Parts | 4719, IVT20TT |
| Ford | 9A6G 12405 AA, 9A6G-12405-AA, CYFS-12Y-PC, CYFS12YPCFC |
| Jaguar | 02AJ813092 |
| Land Rover | LR025605 |
| Motorcraft | CYFS12YPCFC, SP531 |
| NGK | 96621 |
| NGK SPARK PLUGS | ILTR6G8G, 96621 |
NGK SPARK PLUGS 96621 Customer Reviews
No reviews yet
Be the first to review this product!
NGK SPARK PLUGS 96621 Manufacturer Information
Headquartered in Wixom, Michigan, NGK® is a global leader in the design and manufacture of spark plugs for virtually every automotive and commercial vehicle application. It has grown immensely since its inception in 1936 with the expansion of its ignition product line and the introduction of its technical sensor and vehicle electronics line. NGK partners with OEMs and uses only the latest cutting tools to ensure each NGK product meets OE specifications for exact fit, form, and function. With world-class quality and engineering, NGK’s expertise goes beyond manufacturing the most reliable spark plugs for the automotive industry but also providing the best customer service possible.
NGK SPARK PLUGS 96621 Questions & Answers
No questions yet
Be the first to ask a question about this product!
