AUTOLITE XS4062 Part Description
Manufacturer
Product Description

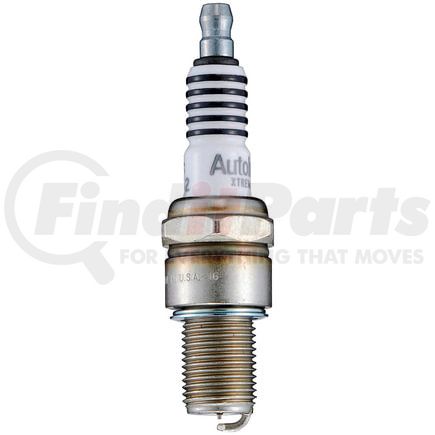

Autolite XS4062 Xtreme Sport Iridium Powersports Spark Plug
Features & Benefits
- Design to withstand the extreme operating temperatures experienced during a power sports engine's combustion.
- Engineered with an iridium-enhanced fine-wire center electrode that delivers greater ignitability over standard non-fine-wire spark plug.
- 0.6mm finewire design with Sport V-trim ground electrode for more horsepower than standard plug
- The tapered ground electrode provides improved ignitability for more efficient and smoother starts.
- Up to 26% quicker engine starts than a standard non-finewire spark plug* (* Testing performed by independent lab)
- Its high alumina multi-rib ceramic insulator provides thermal conductivity and superior insulation for increased strength.
- Focused ignition prevents fouling better than leading standard plug for reliable starting in any season or weather
AUTOLITE XS4062 Specifications
Product Attributes
| Resistance | 5000 82 |
| Ground Electrode Tip Design | Taper Cut |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | 0.03 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 13/16 IN |
| Seat Type | Flat |
| Reach | 0.75 IN |
| Thread Diameter | 14 MM |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Ground Electrode Tip Material | Nickel |
| Center Electrode Design | Fine Wire |
| Center Electrode Projection | Short Projection |
| Washer(s) Included | Yes |
| Grade Type | Performance |
| Manufacturer Heat Range | 15 |
| Skirt | Yes |
| Hex Type | Hex |
| Indexed | No |
| Pre-Gap Size | 0.7619999999999999 MM |
| Reach | 19.049999999999997 MM |
| Thread Type Standard | Metric |
| Thread Size | M14 - 1.25 |
| Washer Type | Crush |
| Thread Diameter | 14 MM |
| Pre-Gap Size | 0.8 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8511100000 |
| Warranty Special | No Warranty |
| Warranty Special UOM | TX |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00009100261670 |
| UNSPSC | 26101732 |
AUTOLITE XS4062 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | S40XL |
| Champion Spark Plug | 777 |
| DENSO Auto Parts | 3151, IW29, IW31, W29ES-GU, W29ES-V, W29ES-ZU, W29ESR-V, W31ES-GU, W31ES-U, W31ES-ZU, W31ESR-U, W31ESR-ZU |
| E3 SPARK PLUGS | E331 |
| Motorcraft | AG701X |
| NGK | 714, B9EIX, B9EVX, BR9ECMIX, BR9ECMVX, BR9ECSIX, BR9ECSIX-5, BR9EIX, BR9EIX SOLID, BR9EVX, R6918B-7 |
| NGK SPARK PLUGS | BR9EIX, 3981 |
| Splitfire - Archived | SF405B, SF406B |
AUTOLITE XS4062 Fits Vehicles
- Polaris 550 INDY Voyageur (2014)
- Ski-Doo Safari Grand Luxe (1984)
- Ski-Doo Safari 447 (1984-1985)
- Arctic Cat El Tigre 295 (1973)
- Polaris 550 Shift 136 (2011-2013)
- Polaris 550 IQ LXT (2011-2013)
- Polaris 550 IQ Shift (2011-2013)
- Polaris XCF SP (2001)
- Ski-Doo Formula Z 500 (1999)
- Ski-Doo Formula III 800 (1999-2000)
- Arctic Cat Bearcat 440 II (1999-2000)
- Arctic Cat Bearcat 440 I (1999-2000)
- Ski-Doo Formula III 600 R (1998)
- Ski-Doo Formula III 600 LT (1998)
- Ski-Doo Formula III 600 (1998-1999)
- Arctic Cat Panther 340 (1998-2000)
- Polaris 600 XCR SP (1996)
- Arctic Cat Bearcat 550 (1995-1996)
- Arctic Cat Bearcat 440 (1995-1998)
- Arctic Cat ZR 440 (1994-1998)
- Ski-Doo Safari 377 (1984-1988)
- Ski-Doo Safari 377E (1984-1988)
- Arctic Cat Lynx 2000 Single (1979)
- Yamaha SRX440 (1976-1981)
- Arctic Cat El Tigre 340 (1973, 1975)
- Arctic Cat El Tigre 440 (1973-1975)
- Arctic Cat El Tigre 400 (1973-1974)
- Yamaha YZ65 (2018)
- Polaris 550 INDY LXT White Lightning (2019)
- Polaris 550 INDY LXT Sunset Red (2019)
- Polaris 550 INDY LXT Northstar Edition (2018)
- Polaris 550 WideTrak LX (2016-2019)
- Polaris 550 INDY LXT 144 Vogue Silver (2018)
- Arctic Cat Bearcat XT (2018-2019)
- Polaris 550 INDY LXT Sonic Blue (2018)
- Yamaha VK540 VK 540 (2017-2018)
- Husqvarna TE150 (2017)
- KTM 150 XC-W (2017-2018)
- Polaris 550 Voyageur 155 (2017-2019)
- Polaris 550 Voyageur 144 (2017-2019)
- Polaris 550 INDY LXT 144 Blue Fire Metallic (2017)
- Polaris 550 INDY LXT 144 Indy Red (2017)
- Gas Gas EC 125 (2010)
- Polaris 550 INDY LXT 144 Turbo Silver (2016)
- Polaris 550 INDY LXT 144 White Lightning (2016)
- Polaris 550 Widetrack LX (2016-2017)
- Polaris 550 INDY Adventure 144 (2014-2019)
- Polaris 550 INDY Voyageur 155 (2015-2016)
- Polaris 550 INDY Adventure 155 (2015-2019)
- Polaris 550 INDY Voyageur 144 (2015-2016)
- Polaris 550 INDY Voyager (2014)
- Polaris 550 INDY 144 (2014-2019)
- Polaris 550 INDY LXT (2014-2015)
- Polaris 550 INDY (2014-2019)
- KTM 85 SXS (2012-2013)
- Yamaha TZ125 (1980)
- Ski-Doo Renegade Adrenaline 800R Power TEK (2011)
- Ski-Doo Renegade SP 800R Power TEK (2011)
- Ski-Doo Renegade Backcountry 800R Power TEK (2011)
- Ski-Doo MX Z TNT 800R Power TEC (2011)
- Polini X5P Liquid (2007-2010)
- Polini X5P Air (2006-2010)
- KTM 250 SX-F (2012)
- Polini X3R (2006-2010)
- Polini X3P Air (2006-2010)
- Polini X1R (2006-2010)
- KTM 125 SX (2012-2018)
- Kawasaki KX100 (2011-2019)
- Ski-Doo Renegade 800 X (2010)
- Ski-Doo Renegade 800 Backcountry (2010)
- Ski-Doo Renegade 800 Adrenaline (2010)
- Ski-Doo Renegade 800 Backcountry X (2010)
- Ski-Doo MX Z 800 R Adrenaline (2010)
- KTM 150 XC (2010-2014)
- KTM 85 XC (2009)
- KTM 150 SX (2008-2018)
- Husqvarna WRE 125 (2009-2012)
- Husqvarna SM 125 (2009-2010)
- KTM 144 SX (2008)
- KTM 105 XC (2008-2010)
- KTM 105 SX (2007-2011)
- Gas Gas SM 125 (2007)
- KTM 300 XC-W (2006-2013)
- KTM 300 XC (2006-2011)
- Gas Gas MC 125 (2006-2007)
- KTM 85 SX (19/16) (2005-2010, 2013)
- Gas Gas SM 50 (2004-2005)
- Suzuki RM60 (2003)
- KTM 85 SX (17/14) (2003-2018)
- KTM 200 SX (2003-2004)
- KTM 250 EXC 4-Stroke (2003-2005)
- Husqvarna TE250 (2003-2012)
- Husqvarna TC250 (2003-2012)
- Cobra DC65 (2003)
- Ski-Doo MX Z 800 R Sport (2002)
- Ski-Doo Summit 700 R Sport (2002)
- Ski-Doo MX Z 800 R (2002)
- Ski-Doo MX Z 800 R X (2002)
- Ski-Doo MX Z 600 R Sport (2002)
- Polaris Octane (2002-2004)
- Gas Gas EC Rookie 50 (2002)
- Kawasaki KX85 (2001-2019)
- Cobra CM50 (2001-2003)
- Yamaha CS340E Ovation LE (2000)
- LEM LX4 (1999-2001)
- KTM 380 MXC (1998-2002)
- KTM 380 SX (1998-2002)
- KTM 380 EXC (1998-2002)
- Husqvarna WR125 (1998-2001, 2003-2007, 2009-2012)
- Husqvarna CR125 (1998-2001, 2003-2004, 2006-2010, 2012)
- Cobra KING (1998-2006)
- KTM 360 MXC (1996-1997)
- KTM 360 SX (1996-1997)
- KTM 360 EXC (1996-1997)
- Aprilia RS 250 (1996-2002)
- Gas Gas Enducross TT 250 (1995)
- Gas Gas Enducross TT 125 (1995)
- KTM 440 MXC (1994-1995)
- KTM 440 SX (1994)
- KTM 440 EXC (1994-1995)
- KTM 300 EGS (1994-1995)
- Kawasaki KX125 (1994-2002)
- KTM 300 MXC (1993-2005)
- KTM 550 MXC (1993-1996)
- KTM 500 SX (1992)
- KTM 250 SX (1992-2018)
- KTM 300 SX (1992-1996)
- Husqvarna WXC 360 (1992)
- Husqvarna WXC 250 (1992-1993, 1996-1997)
- Husqvarna WXC 125 (1992, 1996-1997)
- Husqvarna WXE 260 (1991)
- KTM 300 TXC (1990-1992)
- KTM 300 MX (1990-1991)
- KTM 300 DXC (1990-1992)
- KTM 300 EXC (1990-2005)
- KTM 250 EXC (1990-2005)
- Husqvarna WXE 125 (1990-1991, 1994-1997)
- Husqvarna WXE 250 (1990-1991, 1994-1997)
- KTM 350 EXC (1989-1990)
- Suzuki LT250R QuadRacer (1988-1992)
- Kawasaki KX250 (1986-1991)
- KTM 350 MXC (1985-1988)
- Kawasaki KX60 (1985-2003)
- Yamaha IT200 (1984-1986)
- KTM 250 MX (1984-1986)
- KTM 250 MXC (1984-1986, 1998-2001)
- Husqvarna AE500 (1984)
- Husqvarna WR500 (1984)
- Kawasaki KX80 (1983-1991)
- Yamaha YZ100 (1982)
- Yamaha YZ125 (1982-2019)
- Yamaha YZ250 (1982-1987)
- Yamaha IT175 (1982-1983)
- Honda CR125R (1982-2007)
- Bultaco Pursang 250 (1977-1979)
- Suzuki RM125 (1975-1995)
- Yamaha TD3 (1972)
- Yamaha YAS1 (1968)
