NGK SPARK PLUGS BR9EIX NGK Iridium IX Spark Plug

★★★★★ (0) Write a Review

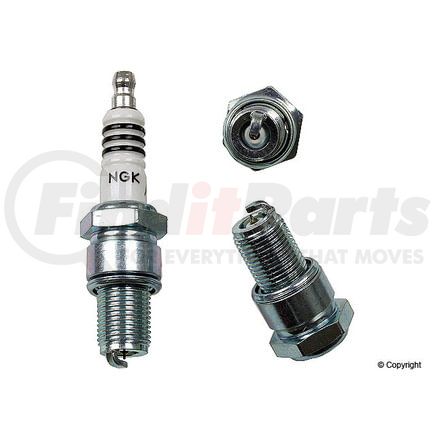

BR9EIX by NGK SPARK PLUGS - NGK Iridium IX Spark Plug
NGK SPARK PLUGS
Tap to view 3 more

No Stock Available

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

NGK SPARK PLUGS BR9EIX Part Description

Manufacturer

NGK SPARK PLUGS

Product Description

NGK Iridium IX Spark Plug

Features & Benefits

  • SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
  • IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
  • TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
  • SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
  • RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs

NGK SPARK PLUGS BR9EIX Specifications

Product Attributes

Part Number BR9EIX
Stock Number 3981
Short Style Spark Plug No
Service Number BR9EIX
Resistance 5000.0 82
Ground Electrode Tip Design Taper Cut
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Washer(s) Included Yes
Grade Type Performance
Electrical Terminal Type Removable Nut
Center Electrode Core Material Copper
Center Electrode Tip Material Iridium
Pre-Gap Size .032 IN
Ground Electrode Quantity 1
Hex Size 13/16"
Insulator Height 2.13 IN
Manufacturer Heat Range 9
Seat Type Flat
Reach 0.750 IN
Thread Diameter 0.551 IN
Insulator Material Ceramic
Resistor Type Yes
Skirt Length 0.0 IN
Ground Electrode Tip Material Nickel
Skirt No
Center Electrode Insulator Tip Projection 0.06 IN
Center Electrode Design Fine Wire
Washer Type Crush
Center Electrode Projection Non-Projected
Thread Size M14 - 1.25
Metallurgy Single Iridium
Thread Type Standard Metric
Pre-Gap Size 0.8 MM
Insulator Height 54.0 MM
Reach 19.0 MM
6648 0.0 MM
Center Electrode Insulator Tip Projection 1.5 MM

Additional Information

Warranty Time UOM MO
Warranty Time 2
Country of Origin (Primary) JP
Harmonized Tariff Code (HTS) 8511100000
UPC 00087295139813
VMRS Code 033003005
UNSPSC 26101732

NGK SPARK PLUGS BR9EIX Cross References

BrandPart Number
AutoliteXS4062, XS4062DP
BoschW3CP, W3CS, WR3CP, WR3CS
BriskL12W
Champion Spark PlugRN2G, N86G, QN2G
DENSO Auto Parts3981, 5317, IW27, W27ES-GU, W27ES-ZU, 4048, 4166, 6901, W27EPT, W27ESR-ZU
Daihatsu999-06910-X9-013
E3 SPARK PLUGSE331
Honda98079-59644, 98079-59646
KTM50339093100
Kawasaki92070-041, 92070-1037, 92070-1054, 92070-1212, 92070-1213, 92070-1227, 92070-1228, 92070-1271, 92070-3002
Magneti MarelliCWP10L
MotorcraftAG603, AG701X, AG603C, AGR701X
N/ABR9EIX
NGK3981
Suzuki09482-00097, 09482-00209, 09482-00115, 09482-00500, 99000-69835-BR9, 99000-79A45-B9E, 99000-79A45-BR9, 99000-69837-BR9, 99000-79S19-BR9
Yamaha90793-20003, 90793-20118, 90793-2B118, 9079E-NG005, 90793-20161, 9079E-NG002, 94702-00193, 94701-00N02, 94703-00075, 94703-00114, 94703-00277, 94709-00193

NGK SPARK PLUGS BR9EIX Fits Vehicles

  • Polaris 850 PRO-RMK 155 3in. (2019)
  • Polaris 850 PRO-RMK 163 3in. (2019)
  • Sno-Jet S/S Jet 433 (1971)
  • Arctic Cat Jag 4000 (1981)
  • Gas Gas EC 125 (2010)
  • Sno-Jet Star-Jet 433 (1973)
  • Sno-Jet Star-Jet 338 (1971, 1973)
  • Sno-Jet Super-Jet 433 (1972)
  • Sno-Jet Super-Jet 338 (1970)
  • Sno-Jet Star-Jet 292 Hirth (1970-1972)
  • Sno-Jet Star-Jet +2 338 (1972)
  • Sno-Jet SST 292 (1972)
  • Sno-Jet S/S Jet 338 (1971)
  • Sno-Jet S/S Jet 292 (1971)
  • Sno-Jet SST F/A 440 (1975-1976)
  • Sno-Jet SST F/A 340 (1975-1976)
  • Sno-Jet SST 440 (1973-1976)
  • Sno-Jet SST 433 (1972)
  • Sno-Jet SST 340 (1973-1974)
  • Sno-Jet SST 338 (1972)
  • Arctic Cat Panther 440 (1973)
  • Cobra CX65 (2012-2018)
  • Arctic Cat El Tigre 5000 F/C (1981)
  • Harley-Davidson SXT125 (1976-1977)
  • Harley-Davidson SX175 (1974-1975)
  • Harley-Davidson SS250 (1975-1977)
  • Harley-Davidson SS175 (1976-1977)
  • Harley-Davidson SS125 (1976-1977)
  • Polini XP65R (2010)
  • Polini X5P Liquid (2007-2010)
  • Polini X5P Air (2006-2010)
  • Polini X3R (2006-2010)
  • Polini X3P Air (2006-2010)
  • Polini X1R (2006-2010)
  • Husqvarna WRE 125 (2010)
  • Husqvarna SM 125 (2010)
  • TM SMR125 (2009)
  • TM MX85 (19/16) (2009)
  • TM MX144 (2009, 2011)
  • TM EN144 (2009)
  • TM SMM125 (2009)
  • TM MX85 (17/14) (2009)
  • TM EN125 (2009)
  • KTM 85 XC (2008)
  • Piaggio Typhoon (2007)
  • KTM 85 SX (17/14) (2007)
  • KTM 85 SX (19/16) (2007)
  • KTM 105 SX (2007)
  • Honda NSR50 (2004)
  • Gas Gas SM 50 (2004)
  • Aprilia Tuono 50 (2004-2005)
  • Suzuki RM60 (2003)
  • KTM 200 SX (2003-2004)
  • Aprilia RS 50 (2002-2005)
  • Vespa ET2 (2001)
  • Gas Gas EC Rookie 50 (2001)
  • LEM LX4 (1999-2006)
  • Honda CR125R (1999-2007)
  • TM MX300 (1998-2003, 2011-2012)
  • Husqvarna WR125 (1998-2006, 2009-2012)
  • Husqvarna CR125 (1998-2006, 2009-2010, 2012)
  • Cobra KING (1998-1999)
  • Arctic Cat Thundercat MC (1998)
  • KTM 125 Sting (1997-1998)
  • Arctic Cat Powder Extreme (1997)
  • TM 300E (1996-2003)
  • TM MX80 (1995-2000)
  • TM MX125 (1995-2003, 2009-2012)
  • TM MX250 (1995-2003, 2011-2012)
  • TM 80E (1995-2000)
  • TM 125E (1995-2003)
  • TM 250E (1995-2003)
  • Suzuki RMX250 (1993-1998)
  • KTM 125 EXC (1993)
  • KTM 550 MXC (1993-1994)
  • Yamaha WR200 (1992)
  • KTM 300 SX (1992)
  • KTM 500 SX (1992)
  • KTM 250 SX (1992-1995)
  • Husqvarna WXC 250 (1992-1993, 1996-1997)
  • Arctic Cat Lynx Mountain Cat (1992-1993)
  • Husqvarna WXE 260 (1991)
  • Husqvarna WME 250 (1991)
  • KTM 300 MXC (1990, 1993-1994)
  • KTM 300 DXC (1990-1992)
  • KTM 300 EXC (1990-1995)
  • KTM 250 EXC (1990-1995)
  • Husqvarna WXE 250 (1990-1991, 1994-1997)
  • Arctic Cat Wildcat Mountain Cat (1990)
  • Arctic Cat Panther Mountain Cat (1990)
  • Arctic Cat Wildcat 650 (1990)
  • Arctic Cat Jag AFS Long Track (1990)
  • Arctic Cat Jag AFS Deluxe (1990)
  • KTM 350 EXC (1989-1990)
  • Arctic Cat Jag AFS (1989-1990)
  • Arctic Cat Cougar Mountain Cat (1989-1990)
  • Arctic Cat Cheetah Touring (1988-1991)
  • Kawasaki KX80 Big Wheel (1987-1991)
  • Honda TRX250R (1987-1988)
  • Arctic Cat Super Jag (1987-1990)
  • Arctic Cat Jag 440 (1987-1988)
  • Arctic Cat El Tigre 5000 (1977, 1987-1988)
  • Arctic Cat Jag (1986)
  • Arctic Cat Cheetah 500 F/C (1986-1988)
  • Suzuki LT250R QuadRacer (1985-1992)
  • KTM 350 MXC (1985-1988)
  • KTM 500 MXC (1985-1986)
  • Arctic Cat Cougar SE (1985)
  • Arctic Cat Cougar (1985-1990)
  • Yamaha IT200 (1984-1985)
  • KTM 250 MXC (1984-1988)
  • Kawasaki ZX750E Turbo (1984-1985)
  • Kawasaki KDX80 (1984)
  • Kawasaki KDX250 (1984, 1991-1994)
  • Honda ATC250R (1984-1986)
  • Kawasaki ZX750 GPZ (1983-1985)
  • Kawasaki KX500 (1983-1984)
  • Kawasaki KX60 (1983-2001)
  • Kawasaki KDX200 (1983-1996)
  • Honda CR60R (1983-1984)
  • Yamaha YZ80 (1982-1983)
  • Yamaha YZ100 (1982)
  • Suzuki RM80 (1982, 1984-1985)
  • Suzuki RM465 (1982)
  • Kawasaki KE125 (1982)
  • Husqvarna XC125 (1982-1986)
  • Honda FL250 Odyssey (1982-1984)
  • Yamaha YZ60 (1981-1983)
  • Suzuki RS250 (1981)
  • John Deere Liquifire 440 (1981-1982)
  • John Deere Trailfire 440 (1981-1982)
  • John Deere Sportfire (1981-1982)
  • Arctic Cat Panther West (1981)
  • Yamaha YZ50 (1980)
  • Suzuki PE400 (1980-1981)
  • Yamaha IT125 (1980-1981)
  • Yamaha DT175 (1980-1981)
  • Suzuki PE250 (1980)
  • Kawasaki KDX175 (1980-1982)
  • Kawasaki KX80 (1980-1991)
  • Kawasaki KX420 (1980-1981)
  • Honda CR80R (1980-1985)
  • Can-Am 400 MX-6 (1980)
  • Arctic Cat Pantera ES (Electric Start) (1980-1981)
  • Arctic Cat Trail Cat 400 (1980-1981)
  • Yamaha IT175 (1979-1983)
  • Arctic Cat Pantera (1979-1981, 1985-1990)
  • Arctic Cat Panther (1979-1981, 1984-1990)
  • Suzuki PE175 (1978)
  • Honda CR250R (1978-1981, 1987-1988)
  • Arctic Cat Pantera 5000 F/A (1978)
  • Arctic Cat Pantera 5000 F/C (1978)
  • Yamaha IT250 (1977-1983)
  • Can-Am 175 MX-3 (1977)
  • Bultaco Pursang 250 (1977-1979)
  • Arctic Cat Z 250 (1977)
  • Yamaha SRX440 (1976-1980)
  • Arctic Cat Panther 4000 (1977-1978)
  • Yamaha TY175 (1976)
  • Yamaha EX440 (1976-1981)
  • Yamaha EX340 (1976-1978)
  • Suzuki RM370 (1976-1977)
  • Suzuki RM250 (1976-1981)
  • Suzuki GT250 (1976-1977)
  • Suzuki RM100 (1976-1981)
  • Yamaha DT400 (1975-1976)
  • Yamaha MX400 (1975)
  • Suzuki RM125 (1975-1980, 1982-1995)
  • Kawasaki KX400 (1975-1976)
  • Yamaha YZ250 (1974-1982, 1984-1987)
  • Yamaha YZ125 (1974-1976, 1982-2017)
  • Yamaha MX125 (1974-1976)
  • Yamaha DT360 (1974)
  • Yamaha GPX433 (1974-1975)
  • Yamaha GPX338 (1974-1975)
  • Kawasaki KX250 (1974-1976, 1978-1982, 1986-1987, 1989-1991)
  • Kawasaki KX125 (1974-1976, 1978-1982, 1994-2002)
  • Arctic Cat El Tigre 295 (1974)
  • Yamaha RT3 (1973)
  • Yamaha SR643 (1973, 1975)
  • Yamaha SR433 (1973, 1978)
  • Yamaha GP292 (1973-1974)
  • Honda CR250M (1973-1976)
  • Yamaha RT2 (1972-1973)
  • Yamaha EW643 (1972-1973)
  • Yamaha AT2M (1972)
  • Yamaha SS433 (1971)
  • Yamaha RT1 (1970-1971)
  • Yamaha AT1M (1970-1971)
  • Yamaha SS338 (1969)
  • Yamaha AT1 (1969-1971)
