(888) 312-8812 Login SignupAUTOLITE XS4064 Autolite XS4064 Xtreme Sport Iridium Powersports Spark Plug
Tap to view 5 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
AUTOLITE XS4064 Part Description
Manufacturer
Product Description

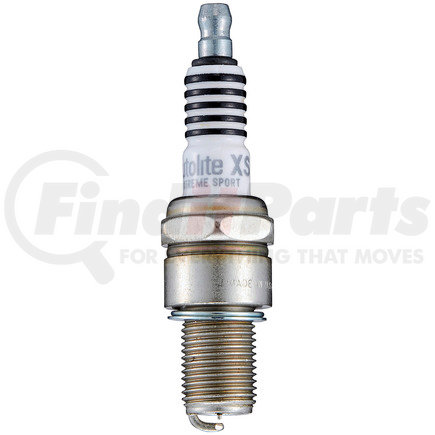

Autolite XS4064 Xtreme Sport Iridium Powersports Spark Plug
Features & Benefits
- Design to withstand the extreme operating temperatures experienced during a power sports engine's combustion.
- Engineered with an iridium-enhanced fine-wire center electrode that delivers greater ignitability over standard non-fine-wire spark plug.

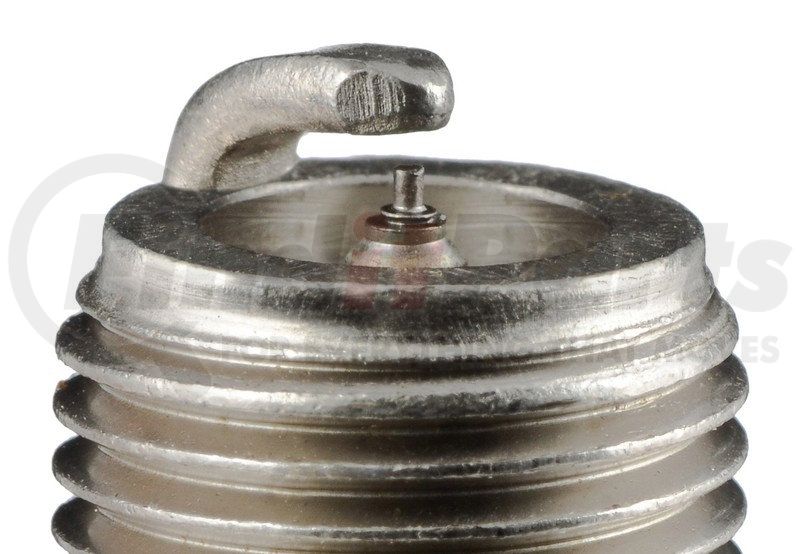

- 0.6mm finewire design with Sport V-trim ground electrode for more horsepower than standard plug
- The tapered ground electrode provides improved ignitability for more efficient and smoother starts.
- Up to 26% quicker engine starts than a standard non-finewire spark plug* (* Testing performed by independent lab)
- Its high alumina multi-rib ceramic insulator provides thermal conductivity and superior insulation for increased strength.
- Focused ignition prevents fouling better than leading standard plug for reliable starting in any season or weather
AUTOLITE XS4064 Specifications
Product Attributes
| Ground Electrode Tip Design | Taper Cut |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | 0.03 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 21 MM |
| Seat Type | Flat |
| Reach | 0.75 IN |
| Thread Diameter | 14 MM |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Ground Electrode Tip Material | Nickel |
| Center Electrode Design | Fine Wire |
| Center Electrode Projection | Short Projection |
| Washer(s) Included | Yes |
| Grade Type | Performance |
| Hex Size | 13/16 IN |
| Manufacturer Heat Range | 13 |
| Skirt | Yes |
| Hex Type | Hex |
| Indexed | No |
| Pre-Gap Size | 0.7619999999999999 MM |
| Reach | 19.049999999999997 MM |
| Resistance | 5000 82 |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.8 MM |
| Insulator Height | 56.5 MM |
| Thread Size | M14 - 1.25 |
| Center Electrode Insulator Tip Projection | 0.044 IN |
| Washer Type | Crush |
| Thread Diameter | 14 MM |
| Center Electrode Insulator Tip Projection | 1.1 MM |
| Insulator Height | 2.224 IN |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8511100000 |
| Warranty Special | No Warranty |
| Warranty Special UOM | TX |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00009100261878 |
| UNSPSC | 26101732 |
AUTOLITE XS4064 Cross References
| Brand | Part Number |
|---|---|
| ACCEL | 142, 442 |
| ACDelco | 42XL, 43XL, C42N, S42XL, S42XLR |
| Champion Spark Plug | 801 |
| DENSO Auto Parts | 4030, IW24, W22ES, W22ES-GU, W24ES, W24ES-U, W24ES-U11, W24ES-V, W24ES-ZU, W24ESR-U, W24ESR-V, W24ESR-ZU |
| Husqvarna | A1614818-02, A161481802 |
| Motorcraft | AG1CX, AG1X, AGR1X |
| NGK | 821, B7EIX, BR7EIX, BR7EVX |
| NGK SPARK PLUGS | BR7EIX, 6664 |
| Splitfire - Archived | SF405D |
| Torch | F7RC |
AUTOLITE XS4064 Fits Vehicles
- Husqvarna WR400 (1985)
- KTM 300 XC-W (2014-2018)
- Kawasaki JS400 (1976)
- Suzuki RL250 (1974-1975)
- Husaberg TE300 (2011-2013)
- Husaberg TE250 (2011-2013)
- KTM 300 XC (2012-2018)
- KTM 250 XC-W (2006-2018)
- Suzuki JR80 (2001-2004)
- Yamaha RT100 (1990-2000)
- Kawasaki KLF300 Bayou 4x4 (1989-1990)
- Honda FL400R Pilot (1989-1990)
- Kawasaki JS300 (1986-1988)
- Suzuki LT500R QuadRacer (1987-1990)
- Kawasaki KXF250 Tecate 4 (1987-1988)
- Kawasaki KZ1000C/P Police (1987-2000)
- Kawasaki KLT185 (1987)
- Kawasaki JS300 300SX (1987-1991)
- Kawasaki JS440 (1977-1992)
- Kawasaki ZG1000 Concours (1986)
- Yamaha YTZ250 Tri-Z (1985-1986)
- Yamaha RZ350 (1984-1985)
- Kawasaki ZX750E Turbo (1984)
- Kawasaki KXT250 Tecate (1984-1986)
- Husqvarna XC500 (1984-1987)
- Kawasaki ZN1100B LTD (1984-1985)
- Husqvarna XC125 (1984-1985)
- Kawasaki ZN700A LTD (1984-1985)
- Kawasaki KZ700A (1984)
- Husqvarna WR125 (1984)
- Husqvarna CR125 (1984-1985)
- Yamaha IT490 (1983-1984)
- Suzuki RM500 (1983-1984)
- Suzuki GS1100GK (1983)
- Suzuki GS1100GL (1983)
- Kawasaki KZ750F LTD Shaft (1983)
- Kawasaki KZ750L (1983)
- Kawasaki KZ1100L LTD Shaft (1983)
- Husqvarna CR500 (1983-1986)
- Suzuki GS450GA (1982-1983, 1985)
- Suzuki GS1100G (1982-1983)
- Kawasaki KZ750N Spectre (1982-1983)
- Kawasaki KZ750R GPZ (1982)
- Kawasaki KDX450 (1982)
- Kawasaki KLT250 (1982-1984)
- Yamaha IT465 (1981-1982)
- Suzuki GS450TX (1981-1983)
- Suzuki GS450T (1981-1982)
- Suzuki RM465 (1981-1982)
- Kawasaki KZ1100A (1981-1983)
- Kawasaki KLT200 (1981-1984)
- Kawasaki KDX420 (1981)
- Husqvarna XC250 (1981, 1986-1988)
- Honda CR450R (1981)
- Honda ATC250R (1981-1986)
- Yamaha YZ465 (1980-1981)
- Yamaha IT425 (1980)
- Suzuki GS450S (1980-1981)
- Suzuki GS450E (1980-1983)
- Suzuki GS450L (1980-1983, 1985-1988)
- Kawasaki KZ750H LTD (1980-1983)
- Kawasaki KDX175 (1980-1982)
- Kawasaki KE125 (1980-1981)
- Kawasaki KDX80 (1980-1983, 1985-1988)
- Kawasaki KDX250 (1980-1983)
- Suzuki DS125 (1979-1981)
- Kawasaki KZ400H LTD (1979)
- Kawasaki KLX250 (1979-1980)
- Kawasaki KDX400 (1979-1980)
- Husqvarna WR390 (1979-1980)
- Husqvarna OR390 (1979-1980)
- Suzuki TS125 (1978-1981)
- Suzuki DS100 (1978-1981)
- Suzuki TS100 (1978-1981)
- Suzuki RM400 (1978-1980)
- Kawasaki KZ400C Special (1978)
- Kawasaki KZ400A Deluxe (1978)
- Kawasaki KZ400B (1978-1979)
- Suzuki PE175 (1978)
- Kawasaki KE100 (1978-2001)
- Husqvarna OR250 (1978-1980)
- Bultaco Frontera 370 (1978-1979)
- Yamaha DT400 (1977-1978)
- Suzuki PE250 (1977-1978)
- Kawasaki KE250 (1977-1979)
- Husqvarna CR390 (1977-1980)
- Honda FL250 Odyssey (1977-1984)
- Bultaco Pursang 370 (1977-1979)
- Yamaha YZ400 (1976-1979)
- Yamaha RD400 (1976-1979)
- Yamaha IT400 (1976-1979)
- Yamaha RD125 (1976)
- Suzuki RM250 (1976-1981, 1985-1991)
- Suzuki RM370 (1976-1977)
- Kawasaki KZ750B/E (1976-1982)
- Husqvarna Automatic 360 (1976)
- Honda CJ360 (1976-1977)
- Yamaha XS650 (1975)
- Husqvarna CR360 (1975-1976)
- Husqvarna CR250 (1975-1981)
- Honda CB360T (1975-1976)
- Honda MR175 (1975-1977)
- Honda CB500T Twin DOHC (1975-1976)
- Yamaha MX175 (1974-1975, 1979-1981)
- Yamaha DT175 (1974-1979)
- Yamaha DT250 (1974-1979)
- Yamaha DT125 (1974-1981)
- Yamaha MX100 (1974-1975)
- Honda MT250 (1974-1976)
- Honda CR125M (1974-1978)
- Honda CL360 Scrambler (1974-1976)
- Honda MT125 (1974-1976)
- Honda CB360 (1974-1976)
- Yamaha RT3 (1973)
- Yamaha MX360 (1973-1974)
- Yamaha MX250 (1973-1975)
- Yamaha DT3 (1973)
- Yamaha CT3 (1973)
- Yamaha AT3 (1973)
- Kawasaki KZ900/Z1 (1973-1975)
- Yamaha ATMX (1973)
- Suzuki GT250 (1973-1975)
- Husqvarna WR250 (1973, 1976-1981)
- Yamaha DT2 (1972-1973)
- Honda CB350G Super Sport (1973)
- Yamaha RT2 (1972-1973)
- Yamaha AT2 (1972)
- Suzuki GT550 (1972-1974)
- Yamaha AT2M (1972)
- Suzuki TS400 (1972-1977)
- Yamaha CT2 (1972)
- Suzuki GT380 (1972-1977)
- Yamaha DT1E (1971)
- Yamaha DT1MX (1971)
- Suzuki TM400 (1971-1975)
- Yamaha DT1C (1970)
- Yamaha DT1C-MX (1970)
- Yamaha RT1MX (1970-1971)
- Honda SL350 (1970-1972)
- Yamaha AT1M (1970-1971)
- Suzuki TS250 (1970-1976)
- Yamaha RT1 (1970-1971)
- Yamaha DT1B (1969)
- Yamaha AT1 (1969-1971)
- Honda CL450K Scrambler (1969-1972, 1974)
- Yamaha DT1S (1969)
- Yamaha CT1 (1969-1971)
- Yamaha DT1 (1968)
- Honda CL350 Scrambler (1968-1973)
- Honda CB450 (1966)
