NGK SPARK PLUGS BR7EIX Part Description
Manufacturer
Product Description

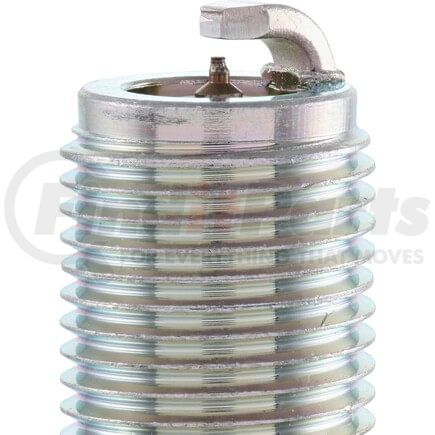

NGK Iridium IX Spark Plug
Features & Benefits
- SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
NGK SPARK PLUGS BR7EIX Specifications
Product Attributes
| Stock Number | 6664 |
| Part Number | BR7EIX |
| Short Style Spark Plug | No |
| Service Number | BR7EIX |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Taper Cut |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Performance |
| Electrical Terminal Type | Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | .032 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 13/16" |
| Insulator Height | 2.20 IN |
| Manufacturer Heat Range | 7 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.06 IN |
| Center Electrode Design | Fine Wire |
| Washer Type | Crush |
| Center Electrode Projection | Non-Projected |
| Thread Size | M14 - 1.25 |
| Metallurgy | Single Iridium |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.8 MM |
| Insulator Height | 56.0 MM |
| Reach | 19.0 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 1.5 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295166642 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS BR7EIX Cross References
| Brand | Part Number |
|---|---|
| AUTOLITE | 4054 |
| Autolite | XS4064, XS4064DP, 2417 |
| Bosch | W5CS, W5CP |
| Brisk | L17W, L15W |
| CHAMPION | 9804 |
| DENSO Auto Parts | 3095, W22ES-GU, W22ES-ZU |
| Kawasaki | 92070-1246, 92070-1249, 92070-1269 |
| Magneti Marelli | CWP8L |
| N/A | BR7EIX |
| NGK | 6664 |
| Suzuki | 99000-79A45-B7E |
| Yamaha | 90793-20001 |
NGK SPARK PLUGS BR7EIX Fits Vehicles
- KTM 300 XC-W ERZBERGRODEO (2024)
- Husqvarna TE300 Pro (2024)
- Husqvarna TE300 Heritage (2023)
- Husqvarna TE300i (2020-2023)
- Husqvarna TE250i (2020-2022)
- KTM 300 XC-W TPI ERZBERGRODEO (2020-2022)
- KTM 300 XC-W TPI Six Days (2020)
- KTM 300 XC-W TPI (2020-2022)
- KTM 300 XC TPI (2020-2022)
- KTM 250 XC-W TPI (2020-2022)
- KTM 250 XC TPI (2020-2022)
- Husqvarna TX300i (2020)
- Husqvarna TX300 (2017-2019)
- KTM 300 XC-W Six Days (2016-2018)
- KTM Freeride 250 R (2015-2017)
- Husqvarna TE300 (2014-2018, 2024)
- Husqvarna TE250 (2014-2018, 2024)
- Ski-Doo Everest 500E (1982-1983)
- Ski-Doo Everest 500 (1982-1983)
- Scorpion Whip 340PR (1979)
- Ski-Doo Alpine (1983-1987)
- Ski-Doo Blizzard 5500 MX (1984)
- Harley-Davidson SX125 (1974-1975)
- Kawasaki JS400 (1976)
- Suzuki RL250 (1974-1975)
- Husaberg TE250 (2011-2014)
- Husaberg TE300 (2011-2014)
- Benelli Velvet 125 (2008-2009)
- KTM 300 XC-W (2006-2018, 2023-2024)
- KTM 250 XC-W (2006-2018, 2023-2024)
- KTM 300 XC (2006-2019)
- KTM 250 XC (2006-2019)
- Suzuki JR80 (2001-2004)
- Suzuki DS80 (1996-2000)
- Sea-Doo SPI (1993-1996)
- Kawasaki JL650 SC (1991-1995)
- Yamaha RT100 (1990-2000)
- Sea-Doo GT (1990-1991)
- Sea-Doo SP (1989-1996)
- Kawasaki JF650 TS (1989-1996)
- Kawasaki JB650 Jet Mate (1989-1992)
- Honda FL400R Pilot (1989-1990)
- Kawasaki JS300 (1986-1988)
- Kawasaki JS650 650SX (1987-1993)
- Kawasaki JF650 X2 (1986, 1988-1995)
- Kawasaki JS300 300SX (1987-1991)
- Kawasaki JS440 (1977-1992)
- Kawasaki KLT200 (1981-1984)
- Kawasaki KZ650E LTD (1980)
- Kawasaki KZ440D LTD Belt (1980-1983)
- Kawasaki KZ440B/G (1980-1981)
- Kawasaki KZ440A LTD (1980-1982)
- Kawasaki KE175 (1980-1982)
- Yamaha MX100 (1979-1983)
- Suzuki DS185 (1979-1980)
- Kawasaki KZ400H LTD (1979)
- Kawasaki KLX250 (1979-1980)
- Kawasaki KZ400C Special (1978)
- Kawasaki KZ400B (1978-1979)
- Kawasaki KZ200 (1978)
- Kawasaki KL250 (1978-1983)
- Suzuki RM80 (1977)
- Kawasaki KZ650C Custom (1977-1979)
- Kawasaki KZ650B/F (1977-1980)
- Kawasaki KZ400A Deluxe (1977-1978)
- Honda FL250 Odyssey (1977-1980)
- Yamaha DT100 (1976, 1978-1983)
- Yamaha TY175 (1975, 1979)
- Kawasaki KZ400S Special (1975-1977)
- Yamaha TY250 (1974-1977)
- Yamaha GP246 (1974)
- Kawasaki KZ400/D (1974-1977)
- Honda XL175 (1973-1978)
- Suzuki GT550 (1972-1974)
- Suzuki GT380 (1972-1973)
- Suzuki TS250 (1970-1976)
- Kawasaki W2TT Commander (1969)
- Kawasaki W2SS Commander (1968-1969)
- Kawasaki W1 (1966-1967)
- Porsche 911 (1965-1967, 1973)
- MG MGA (1959)
- Honda Prelude (1979-1980)
- Honda Accord (1979)
