AUTOLITE XS5224DP Part Description
Manufacturer
Product Description

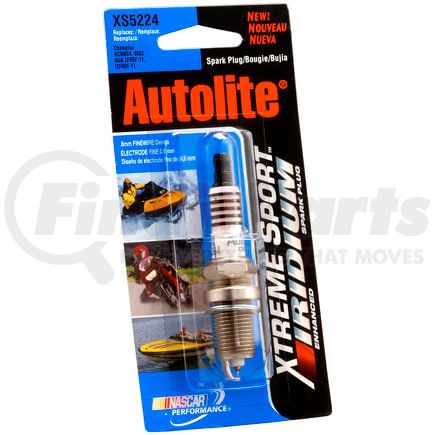

Autolite XS5224DP Xtreme Sport Iridium Powersports Spark Plug - Display Pack
Features & Benefits
- Design to withstand the extreme operating temperatures experienced during a power sports engine's combustion.
- Engineered with an iridium-enhanced fine-wire center electrode that delivers greater ignitability over standard non-fine-wire spark plug.
- 0.6mm finewire design with Sport V-trim ground electrode for more horsepower than standard plug
- The tapered ground electrode provides improved ignitability for more efficient and smoother starts.
- Up to 26% quicker engine starts than a standard non-finewire spark plug* (* Testing performed by independent lab)
- Its high alumina multi-rib ceramic insulator provides thermal conductivity and superior insulation for increased strength.
- Focused ignition prevents fouling better than leading standard plug for reliable starting in any season or weather
AUTOLITE XS5224DP Specifications
Product Attributes
| Resistance | 4000 82 |
| Ground Electrode Tip Design | Taper Cut |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | 0.044 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 16 MM |
| Seat Type | Flat |
| Reach | 0.75 IN |
| Thread Diameter | 14 MM |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Ground Electrode Tip Material | Nickel |
| Center Electrode Design | Fine Wire |
| Center Electrode Projection | Long Projection |
| Washer(s) Included | Yes |
| Grade Type | Performance |
| Hex Size | 5/8 IN |
| Manufacturer Heat Range | 9 |
| Skirt | Yes |
| Hex Type | Hex |
| Indexed | No |
| Reach | 19.049999999999997 MM |
| Pre-Gap Size | 1.1176 MM |
| Thread Type Standard | Metric |
| Insulator Height | 50.5 MM |
| Reach | 19 MM |
| Thread Size | M14 - 1.25 |
| Center Electrode Insulator Tip Projection | 0.187 IN |
| Washer Type | Crush |
| Thread Diameter | 14 MM |
| Center Electrode Insulator Tip Projection | 4.8 MM |
| Insulator Height | 1.988 IN |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8511100000 |
| Warranty Special | No Warranty |
| Warranty Special UOM | TX |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00009100534354 |
| UNSPSC | 26101732 |
AUTOLITE XS5224DP Cross References
AUTOLITE XS5224DP Fits Vehicles
- Kawasaki VN2000F Vulcan 2000 Classic LT (2006-2010)
- Kawasaki VN2000E Vulcan 2000 Classic (2006-2009)
- Kawasaki VN2000A Vulcan 2000 (2004-2009)
- Sea-Doo XP DI (2003-2004)
- Polaris MSX 140 (2003-2004)
- Sea-Doo LRV DI (2002-2003)
- Polaris Virage I (2002-2004)
- Polaris Genesis I (2002-2004)
- Polaris Virage TXI (2001-2002)
- Kawasaki JH1100 Ultra 130 (2001-2004)
- Sea-Doo GTX DI (2000-2003)
- Sea-Doo RX DI (2000-2003)
- Sea-Doo LRV (2000-2001)
- Kawasaki JT1100 1100STX D.I. (2000-2003)
- Polaris Genesis FFI (1999-2000)
