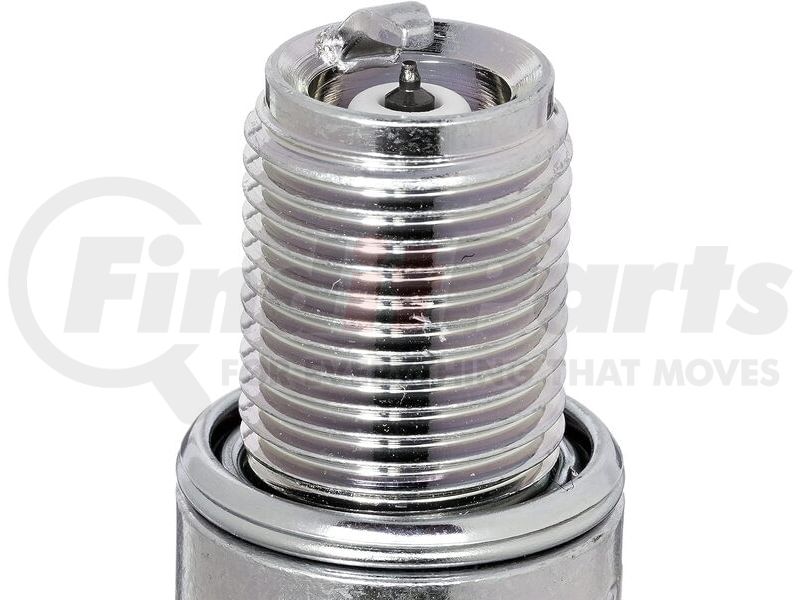

NGK SPARK PLUGS BKR5EIX Part Description
Manufacturer
Product Description
Spark Plug - Iridium IX® Series
Features & Benefits
- SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
NGK SPARK PLUGS BKR5EIX Specifications
Product Attributes
| Stock Number | 6341 |
| Short Style Spark Plug | No |
| Service Number | BKR5EIX |
| Part Number | BKR5EIX |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Taper Cut |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Performance |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | .032 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 1.99 IN |
| Manufacturer Heat Range | 5 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.14 IN |
| Center Electrode Design | Fine Wire |
| Washer Type | Crush |
| Center Electrode Projection | Mid Projection |
| Thread Size | M14 - 1.25 |
| Metallurgy | Single Iridium |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.8 MM |
| Insulator Height | 50.5 MM |
| Reach | 19.0 MM |
| 6648 | 0.0 MM |
| Center Electrode Insulator Tip Projection | 3.5 MM |
Additional Information
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00087295163412 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS BKR5EIX Cross References
| Brand | Part Number |
|---|---|
| AUTOLITE | XS3924, XST3924DP, XST3926DP, XST3924, XST3926 |
| Autolite | XS5224, XS5224DP, XP3924 |
| Beck/Arnley | 1765281 |
| Bosch | FR8DS, F8DPER |
| CHAMPION | 9001 |
| Champion Spark Plug | 9203-2, 9203, 9002-2, 3890, 9002, 9013, 9202-2, 3071, 9202 |
| DENSO Auto Parts | 5303, IK16TT, 4701, IK16 |
| Daihatsu | 999-06910-X9-028 |
| E3 SPARK PLUGS | E348 |
| Fuji Heavy Industrial | SAB330NG0508 |
| Mazda | 1UN6-18-110 |
| Mitsubishi | MZ602072 |
| N/A | BKR5EIX |
| NGK | 6341 |
| Nissan | BY480-BKR5E |
| Omnicraft | QSP2 |
| Rolls-Royce | RH13998 |
| Suzuki | 99000-79K60-K5R |
| Torch | K5RTP |
NGK SPARK PLUGS BKR5EIX Fits Vehicles
- Argo Aurora Pro 950 XT 8x8 (2024)
- Argo Aurora 950 XT SAR 8x8 (2024)
- Argo Aurora 950 SAR 8x8 (2024)
- Argo Aurora 950 R 8x8 (2023-2024)
- Argo Aurora 950 Hunt Master 8x8 (2023-2024)
- Argo Aurora 950 8x8 (2023-2024)
- Argo Aurora 850 SE 8x8 (2023)
- Argo Aurora 850 Responder 8x8 (2023)
- Argo Aurora 850 R 8x8 (2023)
- Argo Aurora 850 Hunt Master 8x8 (2023-2024)
- Argo Aurora 850 8x8 (2023-2024)
- Argo Aurora 850 SX-R Responder 8x8 (2021-2022)
- Argo Aurora 850 SX Responder 8x8 (2021-2022)
- Argo Aurora 950 Bigfoot MX8 (2020-2023)
- Argo Aurora 950 SX-R 8x8 (2020-2022)
- Argo Aurora 950 SX Hunt Master 8x8 (2020-2022)
- Argo Aurora 950 SX 8x8 (2020-2022)
- Argo Aurora 850 Limited 8x8 (2020)
- Argo Aurora 850 Responder-R 8x8 (2020, 2023)
- Argo Aurora 850 SX-R 8x8 (2020-2022)
- Argo Aurora 850 SX Hunt Master 8x8 (2020-2022)
- Argo Aurora 850 SX 8x8 (2020-2021)
- Argo 8x8 750 EFI (2015-2016)
- Argo Frontier 700 6x6 (2019)
- Argo Conquest Pro 800 XT-L (2019)
- Argo Frontier 750 Scout 8x8 (2019)
- Argo Frontier 700 8x8 (2019)
- Argo Conquest Pro 800 XT-X (2019)
- Argo Bigfoot 800 MX8 (2019)
- Argo Avenger 800 Hunt Master (2019)
- Argo Frontier 700 Scout 6x6 (2019)
- Argo Frontier 600 6x6 (2019)
- Argo Conquest 800 Outfitter (2019-2020)
- Argo Avenger Pro 800 XT (2019)
- Argo Aurora 800 SX Hunt Master (2019)
- Argo Conquest Pro 800 XT (2019)
- Argo Avenger Pro 800 XT Responder (2019)
- Argo Aurora 950 SX (2019)
- Argo Aurora 800 (2019)
- Argo Bigfoot 800 MX6 (2019)
- Argo Avenger 800 (2019)
- Argo Aurora 800 Limited (2019)
- Argo Aurora 800 SX (2019)
- Cub Cadet Volunteer WT (2018)
- John Deere Gator XUV 560E (2018-2024)
- John Deere Gator XUV 560E S4 (2018-2024)
- Argo Frontier 6x6 SE (2018)
- Argo Frontier 8x8 S LE (2018)
- Argo Frontier 6x6 ST LE (2018)
- Argo Conquest 8x8 XT-L (2018)
- Argo Conquest 8x8 XT-X (2018)
- Argo Avenger 8x8 ST LE (2018)
- Argo Avenger 8x8 XT (2018)
- Argo Frontier 8x8 Responder S (2017)
- Argo Frontier 8x8 S (2017-2018)
- Argo Frontier 8x8 Scout S (2017-2018)
- Argo Frontier 6x6 Scout ST (2017)
- Argo Conquest 8x8 Outfitter XTi-Z (2017)
- Argo Frontier 6x6 ST (2017)
- Argo Conquest 8x8 XTi (2017)
- Argo Conquest 8x8 i (2017)
- Argo Avenger 8x8 ST (2017-2018)
- Argo Frontier 6x6 S (2017)
- Argo Conquest 8x8 Lineman XTi (2017)
- Argo Avenger 8x8 STR (2017-2018)
- Argo Avenger 8x8 Responder (2017-2018)
- Argo Avenger 8x8 Hunt Master X (2017)
- Argo Frontier 6x6 Scout S (2017-2018)
- Argo Conquest 8x8 Outfitter XTi (2017-2018)
- Argo Avenger 8x8 STX (2017)
- Argo Avenger 8x8 Responder X (2017)
- Argo Avenger 8x8 Hunt Master Z (2017)
- Argo Conquest 8x8 Explorer XTi (2017)
- Argo Avenger 8x8 S (2017)
- Argo Avenger 8x8 Hunt Master ZX (2017)
- Argo Avenger 8x8 Hunt Master (2017-2018)
- Argo Avenger 8x8 LX (2017-2018)
- Argo Avenger 8x8 Hunt Master R (2017-2018)
- Argo Frontier 6x6 (2017)
- Cub Cadet Volunteer WT Cab (2016-2018)
- John Deere Gator XUV 560 S4 (2016-2017)
- John Deere Gator XUV 560 (2016-2017)
- Polaris Magnum 500 RMK (2002)
- Argo Scout 6x6 (2016)
- Argo Scout 8x8 (2016)
- Argo 6x6 750 HDi (2015-2016)
- Argo HuntMaster (2016)
- Argo Outfitter (2016)
- Argo 6x6 Frontier EFI 694 (2015-2016)
- Argo 6x6 Frontier EFI 747 (2015-2016)
- Argo 8x8 Frontier EFI (2015-2016)
- Case IH Scout (2010-2016)
- Polaris Ranger 500 Crew LE (2013)
- Argo 8x8 700 HD (2011-2016)
- Argo 8x8 XTI (2013-2016)
- Argo 6x6 650 HD (2011-2014)
- Argo 8x8 750 HDi (2011-2016)
- Argo 8x8 750 HDi SE (2011-2016)
- Polaris Ranger 500 EFI LE (2012-2013)
- Polaris Ranger 500 EFI (2012-2013)
- John Deere Gator XUV 550 S4 (2012-2016)
- Polaris Ranger 500 Crew Turbo Silver LE (2012)
- Cub Cadet Volunteer 4x4 Trail (2008)
- Cub Cadet Volunteer 4x4 w/Cab (2009)
- John Deere Gator XUV 550 (2012-2016)
- Cub Cadet Volunteer 4x4 (2009-2014)
- Cub Cadet 4x4 (2007)
- Cub Cadet 4x2 FIS / FIS SE (2007)
- Cub Cadet Volunteer 4x4 EFI w/Cab (2009)
- Cub Cadet Volunteer 4x4 EFI (2008-2018)
- Cub Cadet Volunteer 4x2 FIS (2008)
- Cub Cadet 4x4D (2007)
- Cub Cadet Volunteer 4x2 (2009-2014)
- Cub Cadet Big Country 4x2 (2007)
- Argo Frontier 650 8x8 (2010-2014, 2019)
- Argo Vanguard 6x6 (2006-2007)
- Argo Response 8x8 (2007)
- Argo Avenger 750 EFI 8x8 (2010-2011, 2013)
- Argo Vanguard 2 6x6 (2006-2007)
- Argo Frontier 580 6x6 (2010-2014)
- Argo 750 HDi 8x8 (2010)
- Argo Frontier 650 6x6 (2010)
- Argo 750 HDi 8x8 Special Edition (2010)
- Argo Avenger 700 8x8 (2006-2011)
- Polaris Ranger 500 Crew (2011-2013)
- Polaris Ranger 4x4 500 EFI (2006-2011)
- Polaris Ranger 2x4 500 (2006-2009)
- Polaris Ranger 2x4 425 (2002-2004)
- Polaris Magnum 500 2x4 (2002)
- Polaris Ranger 4x4 500 (2001-2003, 2006-2007)
- Polaris Sportsman 400 (2001-2005)
- Polaris Xpedition 425 (2000-2002)
- Polaris Sportsman 500 6x6 (2000-2003, 2005-2008)
- Polaris Magnum 500 4x4 (2000-2003)
- Polaris Sportsman 500 RSE (1999-2000)
- Polaris Ranger 6x6 500 (1999-2003)
- Polaris Scrambler 500 4x4 (1998-1999)
- Polaris Big Boss 500 6x6 (1998-1999)
- Polaris Xplorer 500 4x4 (1997)
- Polaris Sportsman 500 4x4 (1996-2000)
- Polaris Magnum 425 6x6 (1996-1997)
- Polaris Magnum 425 2x4 (1995-1998)
- Polaris Magnum 425 4x4 (1995-1998)
- Mitsubishi Lancer (2009-2010)
- Mitsubishi Outlander (2008-2010)
- Saturn LS2 (2000)
- Saturn LW2 (2000)
- Mitsubishi Eclipse (2004-2005)
- Scion xB (2004-2006)
- Scion xA (2004-2006)
- Mazda Miata (2004-2005)
- Dodge Stratus (2004-2005)
- Chrysler Sebring (2004-2005)
- Toyota Tacoma (1995-2000)
- Toyota T100 (1993-1998)
- Toyota Pickup (1988-1995)
- Toyota Land Cruiser (1993-1997)
- Toyota Echo (2001-2005)
- Toyota Corolla (1993-1997)
- Toyota Celica (1994-1997)
- Toyota 4Runner (1989-2000)
- Lexus LX450 (1996-1997)
- Volkswagen EuroVan (1997, 1999-2001, 2003)
- Volkswagen Cabrio (1995-2001)
- Volkswagen Passat (1993-1997)
- Volkswagen Golf (1994-2002)
- Volkswagen Jetta (1993-2002)
- Volkswagen Corrado (1992-1995)
- Bentley Turbo R (1988-1998)
- Bentley Mulsanne (1984-1992)
- Bentley Eight (1984, 1986-1991)
- Rolls-Royce Silver Dawn (1995-1997)
- Bentley Corniche (1984)
- Rolls-Royce Corniche (2000-2002)
- Bentley Continental (1985-2003)
- Bentley Brooklands (1993-1998)
- Bentley Azure (1996-2003, 2006-2008)
- Bentley Arnage (2000-2009)
- Nissan Quest (1993-1998)
- Mercedes-Benz SL600 (1994-1997)
- Mercedes-Benz SL500 (1994-1997)
- Mercedes-Benz SL320 (1994-1997)
- Mercedes-Benz S600 (1994-1997)
- Mercedes-Benz S500 (1994-1997)
- Mercedes-Benz S420 (1994-1997)
- Mercedes-Benz S320 (1994-1999)
- Mercedes-Benz E420 (1994-1995, 1997)
- Mercedes-Benz E500 (1994)
- Mercedes-Benz E320 (1994-1997)
- Mercedes-Benz C36 AMG (1995-1997)
- Mercedes-Benz C280 (1994-1997)
- Mercedes-Benz C230 (1997-1998)
- Mercedes-Benz C220 (1994-1996)
- Mercedes-Benz 600SL (1993)
- Mercedes-Benz 600SEL (1992-1993)
- Mercedes-Benz 600SEC (1993)
- Mercedes-Benz 500SL (1990-1993)
- Mercedes-Benz 500SEC (1993)
- Mercedes-Benz 500SEL (1992-1993)
- Mercedes-Benz 500E (1992-1993)
- Mercedes-Benz 400SEL (1993)
- Mercedes-Benz 400SE (1992)
- Mercedes-Benz 400E (1992-1993)
- Mercedes-Benz 300TE (1993)
- Mercedes-Benz 300SL (1990-1993)
- Mercedes-Benz 300SE (1992-1993)
- Mercedes-Benz 300CE (1990-1993)
- Mercedes-Benz 300E (1993)
- Mercury Villager (1993-1998)
- Saturn LW300 (2001-2003)
- Saturn L300 (2001-2005)
- Pontiac Grand Am (1993-1994)
- Oldsmobile Achieva (1992-1994)
- Geo Prizm (1993-1997)
- Chevrolet Beretta (1992-1994)
- Cadillac Catera (1997-2001)
- Jeep Wagoneer (1987-1990)
- Jeep Grand Wagoneer (1993)
- Jeep Grand Cherokee (1993-1996)
- Jeep Comanche (1987-1990)
- Jeep Cherokee (1987-1990)
- Dodge W350 (1990-1993)
- Dodge W250 (1990-1993)
- Dodge W150 (1990-1993)
- Dodge Ramcharger (1990-1993)
- Dodge Ram 3500 (1994-1997)
- Dodge Ram 2500 (1994-1997)
- Dodge Ram 1500 (1994-1997)
- Dodge Dakota (1990-1996)
- Dodge D350 (1990-1993)
- Dodge D250 (1990-1993)
- Dodge D150 (1990-1993)
- Dodge B3500 (1995-1997)
- Dodge B350 (1990-1994)
- Dodge B2500 (1995-1997)
- Dodge B250 (1990-1994)
- Dodge B1500 (1995-1996)
- Dodge B150 (1990-1994)
- Peugeot 405 (1989-1991)
- Kia Sportage (1995)
- Jaguar XJS (1993-1994)
- Jaguar XJR (1997)
- Jaguar XJ6 (1993-1994)
- Jaguar Vanden Plas (1993-1997)
NGK SPARK PLUGS BKR5EIX Customer Reviews
No reviews yet
Be the first to review this product!
NGK SPARK PLUGS BKR5EIX Questions & Answers
No questions yet
Be the first to ask a question about this product!
California residents see
