CENTRIC 228.35069 Part Description
Manufacturer
Product Description

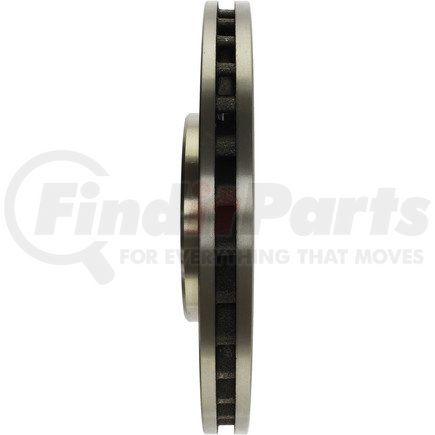

C-Tek Standard Drilled Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. G11 metallurgy. Drilled for increased bite; improved looks and better performance
- For heat capacity and strength
- OE Vane Design & Plate Thickness
- Optimal Surface Finish
- For consistent stopping power
- Low Initial Lateral Run-Out and Disc-Thickness Variation
- For smooth, vibration free stopping
- Precision Balanced
- For vibration free performance
CENTRIC 228.35069 Specifications
Product Attributes
| Vane Style [cntrc] | Curved |
| Misc Holes [cntrc] | 2 |
| Product Grade [cntrc] | Standard |
| Weight [cntrc] Lbs | 25.000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 11.360 |
| Disc Mounting [cntrc] | Floating |
| Discard Thickness | 29.400 MM |
| Discard Thickness | 1.157 IN |
| Nominal Thickness | 1.276 IN |
| Nominal Thickness | 32.400 MM |
| Overall Height | 47.700 MM |
| Overall Height | 1.878 IN |
| Outside Diameter | 12.992 IN |
| Outside Diameter | 330.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | X Drilled |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 67.000 MM |
| Center Hole Diameter | 2.638 IN |
| Mounting Bolt Hole Circle Diameter | 112.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.000 MM |
| Stud/Lug Hole Diameter | 0.591 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00805890447474 |
CENTRIC 228.35069 Cross References
CENTRIC 228.35069 Fits Vehicles
- Mercedes-Benz E550 (2007-2009)
- Mercedes-Benz E350 (2007-2009)
- Mercedes-Benz E500 (2004-2006)
- Mercedes-Benz S500 (2003-2006)
- Mercedes-Benz S430 (2003-2006)
