(888) 312-8812 Login SignupRAYBESTOS 980520R Raybestos R-Line Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980520R Part Description
Manufacturer
Product Description

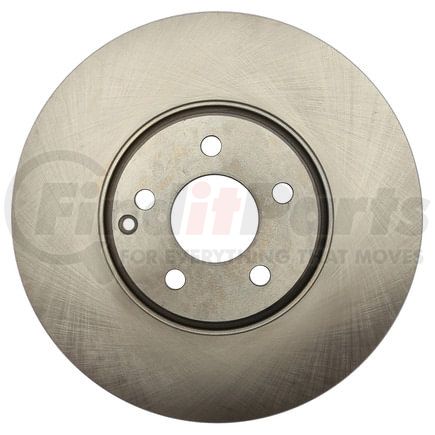

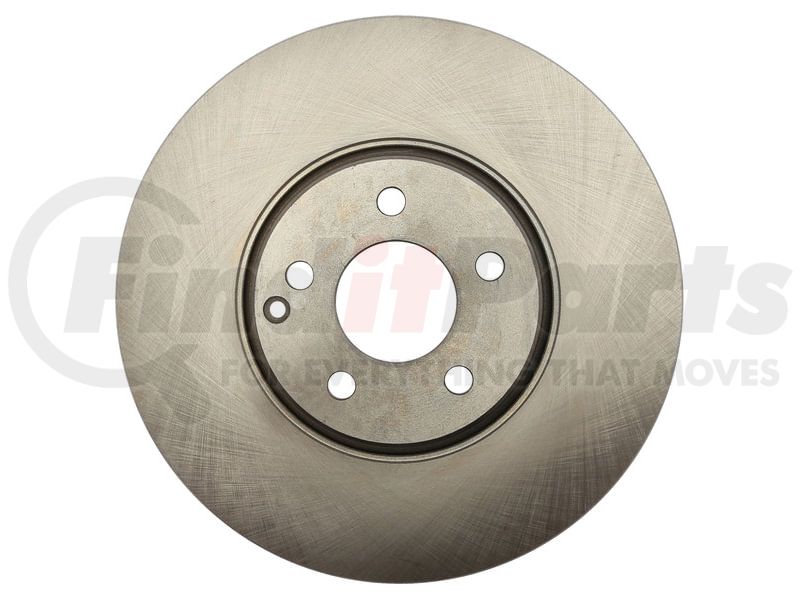

Raybestos R-Line Brake Rotor
Application Summary
2006-2004 Mercedes-Benz E500 Front, 2009-2007 Mercedes-Benz E550 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980520R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.638 IN |
| Center Hole Diameter | 67 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.159 IN |
| Discard Thickness | 29.45 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.595 IN |
| Mounting Bolt Hole Diameter | 15.1 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.26 IN |
| Nominal Thickness | 32 MM |
| Outside Diameter | 12.992 IN |
| Outside Diameter | 330 MM |
| Overall Height | 1.874 IN |
| Overall Height | 47.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213372373 |
RAYBESTOS 980520R Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH200484C, YH200484P |
| AutoZone | 45512, 45397, 76601, 76601DG |
| Bendix | PRT6110 |
| Bosch | 36011498 |
| BrakeBest | 36011498, 980520, 980520RGS |
| Brembo | 09.A828.21 |
| CENTRIC | 121.35069, 228.35069 |
| Centric Parts | 120.35069, 121.35069, 125.35069, 125.35069CRY, 126.35069SL, 126.35069SR, 127.35069L, 128.35069, 128.35069L, 228.35069, 320.35069C, 320.35069H |
| Dura Corp | BR34330, BR900305 |
| DuraGo | BR900305 |
| Dynamic Friction Company | 624-63059 |
| MAGMA PRODUCTS | PMR383056 |
| Mercedes-Benz | 2114211112 |
| Newtek Automotive USA | 34330 |
| Promax | 14-34330 |
| Qualis | 45397, 45512 |
| TRW | 6012 |
| UAP | 34330 |
| Wagner Brake | BD180370 |
| Winhere | 6621176, 6620263DR |
RAYBESTOS 980520R Fits Vehicles
- Mercedes-Benz S500 (2003-2006)
- Mercedes-Benz S430 (2003-2006)
- Mercedes-Benz E350 (2007-2009)
- Mercedes-Benz E550 (2007-2009)
- Mercedes-Benz E500 (2004-2006)
