CENTRIC 131.62020 Part Description
Manufacturer
Product Description

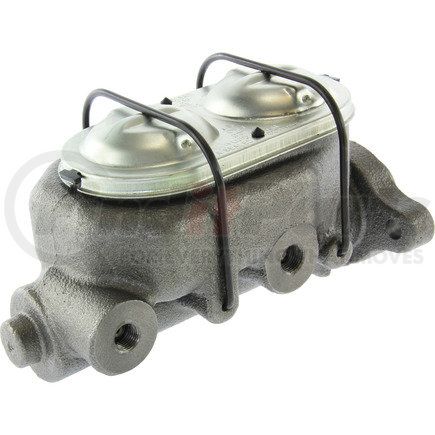

C-Tek Standard Brake Master Cylinder
Features & Benefits
- Reservoirs and caps included. Pressure tested for worry free performance. Wide application coverage.
CENTRIC 131.62020 Specifications
Product Attributes
| Publication Bore [cntrc] | 1 1/8" |
| Boss, Nipple Or Port: Front, Left: #a [cntrc] | 1/2"-20 inv |
| Weight [cntrc] Lbs | 8.6 |
| Primary Outlet Flare Type [cntrc] | Inverted |
| Product Grade [cntrc] | Standard |
| Push Rod: Length / Depth [cntrc] In | 1.66 |
| Boss, Nipple Or Port: Rear: #a [cntrc] | 9/16"-18 inv |
| Weight [cntrc] Kgs | 3.91 |
| Secondary Outlet Flare Type [cntrc] | Inverted |
| Reservoir Material | Cast Iron |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 28.575 MM |
| Master Cylinder Bore Diameter | 1.125 IN |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Cast Iron |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Reservoir Type | Single |
| Primary Outlet Thread Diameter | 0.5625 IN |
| Secondary Outlet Thread Diameter | 0.500 IN |
| Bleeder Hoses Included | No |
| Port Quantity | 2 |
| Mounting Bracket Included | No |
| 9275 | 20 IN |
| 9276 | 18 IN |
| Bore Type | Straight |
| Bore Size | 28.575 MM |
| Bore Size | 1.125 IN |
| Secondary Outlet Thread Size | 1/2"-20 |
| Primary Outlet Thread Size | 9/16"-18 |
| Primary Outlet Flare Type | Inverted |
| Secondary Outlet Flare Type | Inverted |
| Primary Bore Diameter | 28.575 MM |
| Primary Bore Diameter | 1.125 IN |
| Reservoir Style | Integral |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8413919050 |
| UPC | 00805890133780 |
CENTRIC 131.62020 Cross References
| Brand | Part Number |
|---|---|
| DORMAN | M89160 |
| N/A | F73342, F89160, E136-67-025, 6693240, M900233, 5461184, 5469399, 5470665, 2621664, 2622249, 18001004, 18009460, CM1172, 65-M39018, 11372, MC39018, 2539018, 39018, 2302-62020, 230262020, MC250010, M82020, M82020E, 174249, 174256, 174263, 174475, 18030314, 18M72, E77071, E13667025, M89160 |
| RAYBESTOS | MC39018 |
CENTRIC 131.62020 Fits Vehicles
- Chevrolet Nova (1969)
- Chevrolet El Camino (1969-1970)
- Chevrolet Camaro (1969)
- Chevrolet Monte Carlo (1970)
- Chevrolet Chevelle (1968-1970)
- Chevrolet Corvette (1967-1976)
