MOOG ES419L Part Description
Manufacturer
Product Description

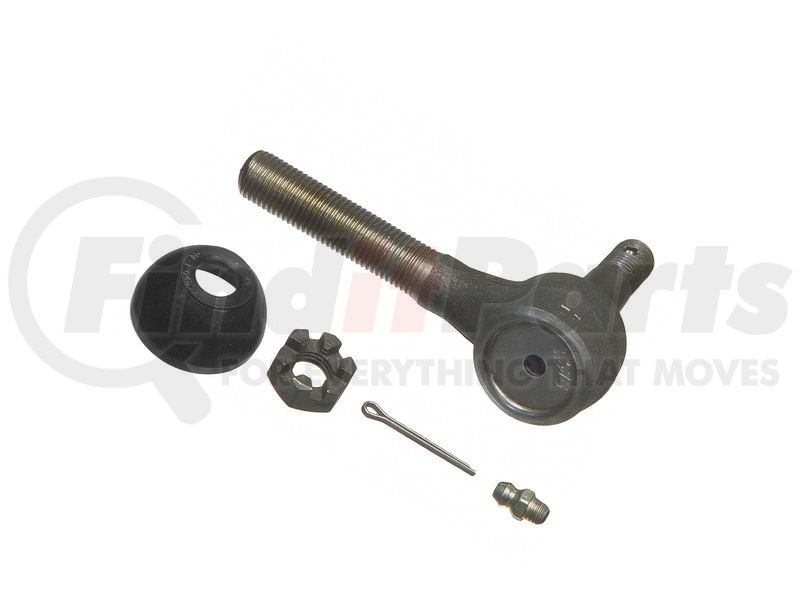

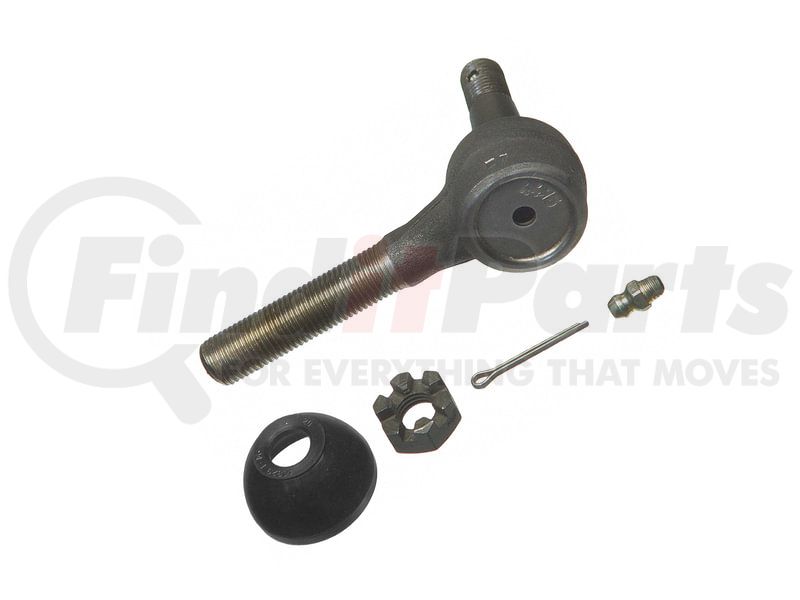

Steering Tie Rod End
Application Summary
1973-1974 Volkswagen 412 (Inner); 1968-1974 Volkswagen Campmobile (Left Inner) (Qualifier: with Left Hand Threads); 1967-1973 Volkswagen Fastback (Right Inner, Left Outer); 1968-1974 Volkswagen Karmann Ghia (Left Outer) (Qualifier: From Chassis # 118-857-240); 1967-1973 Volkswagen Squareback (Right Inner, Left Outer); 1971-1979 Volkswagen Super Beetle (Inner); 1973-1974 Volkswagen Thing (Left Outer); 1971-1972 Volkswagen 411 (Inner); 1968-1977 Volkswagen Beetle (Left Outer) (Qualifier: Gear Box Design, From Chassis # 118857240); 1967-1979 Volkswagen Transporter (Left Inner) (Qualifier: with Left Hand Threads)
Features & Benefits
- Designed for OE fit and function
- Premium boot keeps out contaminants
- Made of forged alloy steel for durability
- Replacement helps restore vehicle handling
Passenger Car/Light Truck Applications
| Make | Model | Year |
|---|---|---|
| VOLKSWAGEN | 411 | 1972-1971 |
| 412 | 1974-1973 | |
| BEETLE | 1977-1968 | |
| CAMPMOBILE | 1974-1968 | |
| FASTBACK | 1973-1967 | |
| KARMANN GHIA | 1974-1968 | |
| SQUAREBACK | 1973-1967 | |
| SUPER BEETLE | 1974-1971 | |
| THING | 1974-1973 | |
| TRANSPORTER | 1979-1967 |
MOOG ES419L Specifications
Product Attributes
| End 1 Gender | Male |
| End 2 Gender | Male |
| Type | Straight |
| End 2 Thread Diameter | 12.0 MM |
| End 1 Thread Direction | Counterclockwise |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 3.540 IN |
| End 1 Thread Diameter | 14.0 MM |
Additional Information
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (Schedule B) | 8708947550 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| UPC | 00080066582375 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
MOOG ES419L Cross References
| Brand | Part Number |
|---|---|
| 080066144115 | |
| ACDelco | 45A0139, 46A0139A |
| Autospecialty | 03-20001, 320001 |
| Barcap | ES419L |
| Beck/Arnley | 101-3376, 101-3393 |
| CEW | 4939017, 4939026 |
| Centric Parts | 612.33064, 61333064 |
| Coni-Seal | XES419L |
| DELPHI | TA5079, TA1221, TC5087 |
| DORMAN | TI43025, TI43025XL |
| Dorman | 532-149 |
| Duralast | ES419L |
| Falcon Steering Systems | ES419L |
| Firestone | 52300150, ES419L |
| ITM Engine Components | 40-13619 |
| Lazorlite | U85-2384, U85-2929 |
| MAS Industries | T419L, TI43025 |
| Maremont | TR419L |
| Mcquay-Norris | ES419L |
| Mevotech | MES419L, MS70712, T419L |
| Midas | TR1140, TR1514 |
| NAPA | ES419L, 269-2348 |
| Perfect Circle | 269-2348, 269-2352 |
| Raybestos Brakes | 401-1139B, 401-1139 |
| SUSPENSIA | X31TE2206, X31TE2207 |
| Sealed Power | 802-419L |
| TRW | ES419L |
| TRW Steering and Suspension Parts | JTE998, ES419L, TS3866 |
| Unimotive | TR419L |
| Vera | 60-01175 |
| Volkswagen | 113-415-811C, 311-415-811B, 311-415-811C |
MOOG ES419L Fits Vehicles
- Volkswagen 411 (1971-1972)
- Volkswagen Thing (1973-1974)
- Volkswagen Super Beetle (1971-1979)
- Volkswagen Squareback (1967-1973)
- Volkswagen Karmann Ghia (1968-1974)
- Volkswagen Fastback (1967-1973)
- Volkswagen Campmobile (1968-1974)
- Volkswagen 412 (1973-1974)
- Volkswagen Beetle (1968-1977)
- Volkswagen Transporter (1967-1979)
MOOG ES419L Customer Reviews
No reviews yet
Be the first to review this product!
MOOG ES419L Manufacturer Information
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
