MONROE 911128 Part Description
Manufacturer
Product Description

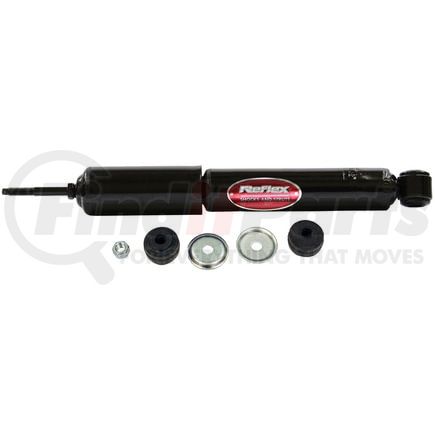

Reflex Suspension Shock Absorber
Features & Benefits
- IMPROVES STABILITY -- ASD (Acceleration Sensitive Damping) valving technology adjusts to impacts, reducing roll and dive for vehicles with a higher center of gravity
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger reserve tube holds more fluid to run cooler
- CONTROL AND DURABILITY -- Fluon-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- IMPROVES PERFORMANCE -- Nitrogen gas charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
MONROE 911128 Specifications
Product Attributes
| Lower Mount Code | L1 |
| Upper Mount Code | S4 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 9.75 IN |
| Dust Shield Material | Metal |
| Extended Length | 14.25 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Parts Pack(s) | P01135,P01319 |
| Travel Length | 4.5 in |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Compressed Length | 247.6 MM |
| Extended Length | 362 MM |
| Travel Length | 114.3 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598840394 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 911128 Cross References
| Brand | Part Number |
|---|---|
| 911128MM, 829352491485 | |
| BILSTEIN | 24184816 |
| FCS | 341576 |
| FCS AUTO PARTS | 341576 |
| Ford | 6C2Z18124B, 7C2Z18124BR, 7C2Z18125B, F4UZ18124N, F4UZ18125A, F4UZ18125B, F5UZ18124ABA, F5UZ18124C, F5UZ18125B, F5UZ18125C |
| GABRIEL | G63929, 77608 |
| KYB | 344388, KG5495, 565012, 565014, 344370, KG5497 |
| KYB AMERICA LLC. | 565012, KG5495 |
| NAPA Shocks | 911128 |
| PRT | 173690 |
| SENSEN | 12130332 |
| UNITY AUTOMOTIVE | 2-212060-001, 212060, 4-212060-252160-001 |
MONROE 911128 Fits Vehicles
- Ford Econoline (1999-2006)
- Ford E-150 Club Wagon (2003-2005)
- Ford E-150 (2002-2007)
- Ford E-150 Econoline Club Wagon (1992-2002)
- Ford E-150 Econoline (1992-2002, 2007)
