MONROE MA828 Part Description
Manufacturer
Product Description

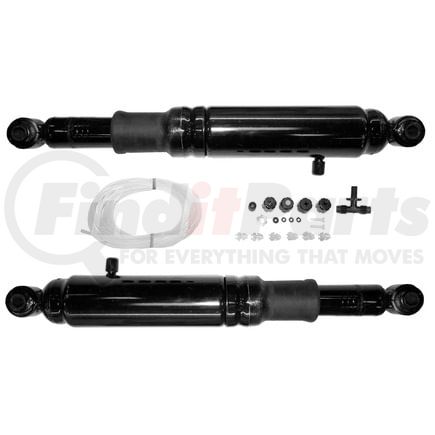

Max-Air Air Adjustable Air Shock Absorber Pack of 2
Features & Benefits
- MAINTAIN RIDE HEIGHT UNDER LOAD -- Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner's manual)
- EASY TO ADJUST -- Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- EXCEPTIONAL HANDLING -- Full-displaced valving on compression and extension cycles for a smooth ride
- BUILT TO LAST -- Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
MONROE MA828 Specifications
Product Attributes
| Compressed Length | 14.75 IN |
| Extended Length | 24.875 in |
| Travel Length | 10.125 in |
| Lower Mount Code | LS92 |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 14MM Sleeve ID X 1.11/16" Sleeve OAL |
| Upper Mount Code | LS92 |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 14MM Sleeve ID X 42.86MM Sleeve OAL |
| Dust Shield Included | Yes |
| Dust Shield Material | Rubber |
| Includes Bump Stop | No |
| Hydraulic Lockout | No |
| Parts Pack(s) | None |
| Part Description | Air Shock Absorber |
| Internal Rebound Bumper | No |
| Compressed Length | 374.7 MM |
| Extended Length | 631.8 MM |
| Travel Length | 257.2 MM |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 14MM Sleeve ID X 42.86MM Sleeve OAL |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Rod End Measuring Point | Center of Loop |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708801910 |
| Harmonized Tariff Code (Schedule B) | 8708801300 |
| Harmonized Tariff Code (HTS) | 8708801300 |
| UPC | 00048598047786 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE MA828 Part Interchanges
| Brand | Part Number |
|---|---|
| Chevrolet | 12477866, 12477867, 12477868, 12477869, 12477870, 12477871, 15057973, 19168458, 19300056, 19300058, 22064848, 22064849, 22064851, 22064859, 22064860, 22064864, 22064865, 22064866, 22064868, 22400190, 22400191, 22400192, 22400193, 22400194, 22400195, 22400265, 22400368, 22400370, 22400563, 22400818, 88963420, 88963421, 88963422, 88963423, 88963424, 88963425, 88965348, 88983839, 89038595, 89038596, 89038597, 89038652, 89038653, 89040168, 89040169, 89040170, 89040172, 89040173, 89040176, 89040177, 89040178, 89040179, 89040180, 89040181, 89040415, 89040416, 89040417, 89040418 |
| GMC | 12477866, 12477867, 12477868, 12477869, 12477870, 12477871, 15057973, 19133548, 19168458, 19209331, 19300049, 19300056, 19300058, 22064848, 22064849, 22064851, 22064859, 22064860, 22064864, 22064865, 22064866, 22064868, 22400190, 22400191, 22400192, 22400193, 22400194, 22400195, 22400265, 22400368, 22400370, 22400563, 22400818, 88963420, 88963421, 88963422, 88963423, 88963424, 88963425, 88965348, 88983819, 88983839, 89038595, 89038596, 89038597, 89038652, 89038653, 89040168, 89040169, 89040170, 89040172, 89040173, 89040176, 89040177, 89040178, 89040179, 89040180, 89040181, 89040415, 89040416, 89040417, 89040418 |
| Gabriel | 49235 |
| NAPA Shocks | MA828 |
MONROE MA828 Fits Vehicles
- Chevrolet C1500 (2002)
- GMC Sierra 1500 Classic (2007)
- Chevrolet Silverado 1500 Classic (2007)
- GMC Sierra 1500 (1999-2006)
- Chevrolet Silverado 1500 (1999-2006)
MONROE MA828 Cross References
We have 3 alternatives for the MA828 by MONROE:
