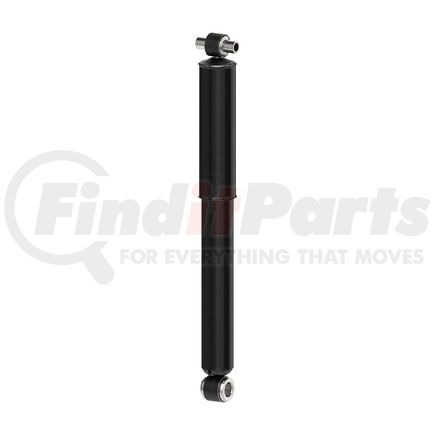

MONROE 65159 Magnum Shock Absorber - 25.87 in. Extended Length, Front

65159 by MONROE - Magnum Shock Absorber - 25.87 in. Extended Length, Front
MONROE
Tap to view 5 more

$68.49

Limited availability at this price!

In Stock

Get it by Friday, Feb 13
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed over the weekend will ship the following business day

MONROE 65159 Part Description

Manufacturer

MONROE

Product Description

Magnum Suspension Shock Absorber

Features & Benefits

  • FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
  • BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 65159 Specifications

Product Attributes

Lower Mount Code L4
Upper Mount Code LS87
Dust Shield Included Yes
Includes Bump Stop No
Internal Rebound Bumper No
Hydraulic Lockout No
Part Description Shock Absorber
Internal Construction Type Twin Tube
Adjustable Damping No
Color Black
Finish Painted
Shock Absorber Bore Size 1-3/4 IN
Foam Cell Design No
Shaft Diameter 18 MM
Compressed Length 15.875 IN
Dust Shield Material Metal
Extended Length 25.875 in
Gas Charged Yes
Lower Mount Type Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL
Parts Pack(s) None
Travel Length 10 in
Upper Mount Type Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 3.9/16" Sleeve OAL
Compressed Length 403.2 MM
Extended Length 657.2 MM
Travel Length 254 MM
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Center of Loop
Shock Absorber Bore Size 44.5 MM
Shock Absorber Bore Size 1.75 IN
Adjustable Damping No
Lower Mount Type Loop (Eyelet) Bushing
Lower Mount Code L4
Upper Mount Code LS87
Mounting Hardware Included No
Grade Type Premium
Active or Passive Suspension Passive
Adjustable Compression No
Adjustable Rebound No
Adjustable Ride Height No

Additional Information

MSDS Sheet Number 01168
Country of Origin (Primary) CN
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708800050
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598170590
VMRS Code 016008003
UNSPSC 25172011

MONROE 65159 Cross References

BrandPart Number
65159MM, MAE65159
BULLDOG HD SHOCKSHD1215-0020
Dayton Parts44185070
FCSF347233, F347227
FOX COMMERCIAL TRUCK SHOCKS98031002
GABRIEL85070, 89459
HALDEXSA65159
INTERNATIONAL6658587C1
KENWORTH665858
KYB341624, 341613
KenworthB711001
MERITORM89459, M85070
NAPA Shocks65159
Navistar6658587C1
OEM665858, B711001
PACCAR PARTS665858
PETERBILT665858, 671052
POWER10 PARTSSSA-85070
Paccar PartsB711001
SACHS NORTH AMERICA315548, 315654
Sachs315548, 315654
VOLVO / WHITE / GMCRCSA5070, SA5070
Volvo GM Heavy TruckRCSA5070, SA5070
Volvo Truck83176228

MONROE 65159 Fits Vehicles

  • Peterbilt 587 (2011-2015)
  • Kenworth T700 (2011-2016)
  • Peterbilt 386 (2006-2016)
  • Kenworth T660 (2008-2019)
  • Peterbilt 384 (2008-2016)
  • Kenworth T400 (2012-2022)
  • Peterbilt 385 (1996-2007)
  • Kenworth T800 (2005-2023)
  • Kenworth T600A (1986-2007)
  • Peterbilt 387 (2000-2011)
  • Kenworth T2000 (1997-2011)
