MONROE MA751 Part Description
Manufacturer
Product Description

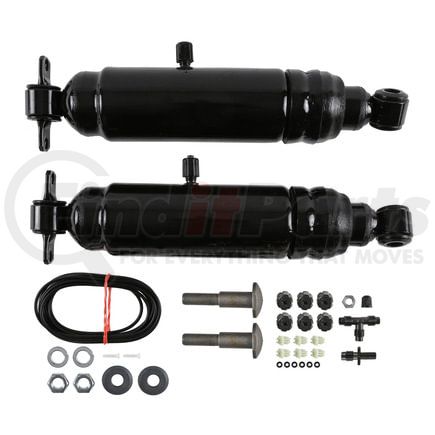

Max-Air Air Adjustable Air Shock Absorber Pack of 2
Features & Benefits
- MAINTAIN RIDE HEIGHT UNDER LOAD -- Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner's manual)
- EASY TO ADJUST -- Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- EXCEPTIONAL HANDLING -- Full-displaced valving on compression and extension cycles for a smooth ride
- BUILT TO LAST -- Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
MONROE MA751 Specifications
Product Attributes
| Compressed Length | 13 IN |
| Extended Length | 20.625 in |
| Travel Length | 7.625 in |
| Lower Mount Code | L1/CP3 |
| Lower Mount Type | L1/CP3 |
| Upper Mount Code | XP7 |
| Upper Mount Type | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center) |
| Dust Shield Included | Yes |
| Dust Shield Material | Rubber |
| Includes Bump Stop | Yes |
| Hydraulic Lockout | No |
| Parts Pack(s) | (2) P00576 |
| Part Description | Air Shock Absorber |
| Internal Rebound Bumper | No |
| Compressed Length | 330.2 MM |
| Extended Length | 523.9 MM |
| Travel Length | 193.7 MM |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Rod End Measuring Point | Center of Cross Pin |
| Lower Mount Type | Loop Bushing and Cantilever Pin Mount - 1/2" Stud Diameter X 1 5/16" Stud Length (Center of Loop to Frame) |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598030962 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE MA751 Part Interchanges
| Brand | Part Number |
|---|---|
| Chevrolet | 22046423, 22046424, 22046426, 22046427, 22046428, 22064040 |
| Buick | 22046423, 22046424, 22046427, 22046428, 22064048, 22064049 |
| Cadillac | 22046498, 22064046, 22064047, 22064183, 22064311, 22064425, 22064426, 22181553, 22181559 |
| Oldsmobile | 22046426, 22046445, 22064040, 4993745 |
| Pontiac | 12322219, 22046423, 22046424, 22046426, 22046427, 22064040 |
| Gabriel | 49152, 49131, 49128 |
| NAPA Shocks | MA751 |
MONROE MA751 Fits Vehicles
- Buick Centurion (1971-1973)
- Pontiac Laurentian (1971-1974, 1976-1981)
- Pontiac Parisienne (1971-1974, 1976-1986)
- Pontiac Grandville (1971-1975)
- Pontiac Catalina (1971-1981)
- Pontiac Bonneville (1971-1981)
- Oldsmobile Toronado (1971-1978)
- Oldsmobile Delta 88 (1971-1985)
- Oldsmobile 98 (1971-1984)
- Chevrolet Impala (1971-1985)
- Chevrolet Caprice (1971-1981)
- Chevrolet Bel Air (1971-1975, 1981)
- Cadillac Fleetwood (1977-1986)
- Cadillac Eldorado (1971-1978)
- Cadillac DeVille (1977-1984)
- Cadillac Commercial Chassis (1983-1984)
- Buick Riviera (1971-1978)
- Buick LeSabre (1971-1985)
- Buick Electra (1971-1984)
MONROE MA751 Cross References
We have 5 alternatives for the MA751 by MONROE:
