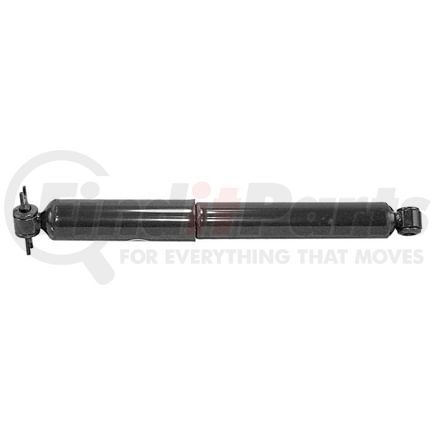

(888) 312-8812 Login SignupMONROE 550017 Magnum Severe Service Suspension Shock Absorber
Tap to view 3 more
MSRP: $98.93
$5549
Save $43.44
Limited availability at this price!
In Stock
Get it by Monday, Mar 9
MONROE 550017 Part Description
Manufacturer
Product Description
Magnum Severe Service Suspension Shock Absorber
Features & Benefits
- ENGINEERED FOR EMERGENCY AND FLEET VEHICLES -- For hardworking first responder, municipal, fleet and jobsite vehicles and features 10-stage valving that adjusts to road extremes to help handle frequent stops, heavy loads and high miles
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- STRONG AND DURABLE -- Double welded, including arc welds up to 360-degrees, for durability while shouldered bushing and bonded bushing (on most applications) delivers quality
- BUILT TO LAST -- Heavy-duty nitrocarburized rod (on most applications) and sintered iron piston enhance durability for longer service life
- LONGER SERVICE LIFE -- Larger bore, bigger 2-in. reserve tube and 0.05-in. pressure tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- CONTROL AND DURABILITY – PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces for smooth operation
- CONTROL AND DURABILITY - PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces for smooth operation
MONROE 550017 Specifications
Product Attributes
| Lower Mount Code | L1 |
| Upper Mount Code | XP12 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 17.75 IN |
| Dust Shield Material | Metal |
| Extended Length | 20.125 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Parts Pack(s) | None |
| Travel Length | 2.375 in |
| Upper Mount Type | Cross Pin Mount - Open Ended, 3/8" Hole ID (Both Ends) X 3.3/16" Pin Length (Hole Center to Center) |
| Compressed Length | 450.8 MM |
| Extended Length | 511.2 MM |
| Travel Length | 60.3 MM |
| Shock Absorber Rod End Measuring Point | Center of Cross Pin |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Lower Mount Type | Loop (Eyelet) Bushing |
| Lower Mount Code | L1 |
| Upper Mount Code | XP12 |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598550170 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 550017 Cross References
| Brand | Part Number |
|---|---|
| 550017MM | |
| FCS | 342555, 342554 |
| FCS AUTO PARTS | 342555 |
| GABRIEL | G63425 |
| Jeep | 4637102, 4637103, 4637523, 4637525, 4886509AA, 4886509AE, 4897412AA, 4897412AD, 4897412AF, 4897413AA, 4897413AB, 4897413AD, 4897413AF, 4897414AA, 4897414AD, 4897414AE, 52003288, 52087776, 52087777, 52087777AD, 52087777AE, 52087831, 52087948, 52087948AD, 83502512, 83502514, 83504211, 83504212 |
| KYB | 565054, 344418, 344089, KG5465 |
| MERITOR | MG60053 |
| NAPA Shocks | 550017 |
MONROE 550017 Fits Vehicles
- Jeep Cherokee (1991-2001)
