(888) 312-8812 Login SignupMONROE 65494 Magnum Suspension Shock Absorber
Tap to view 5 more
$7349
Limited availability at this price!
In Stock
Get it by Thursday, Feb 12
MONROE 65494 Part Description
Manufacturer
Features & Benefits
- Features heavy-duty nitrocarburized rod and sintered iron piston for extended durability and longer life
- Nitrogen gas charge reducing aeration and shock fade to improve ride and handling consistently
- Offers larger bore and 2-inch reserve tube holding extra oil for higher capacity to enhance performance
- Designed for full-size trucks and vans, providing firm control with a smooth ride on varying terrains

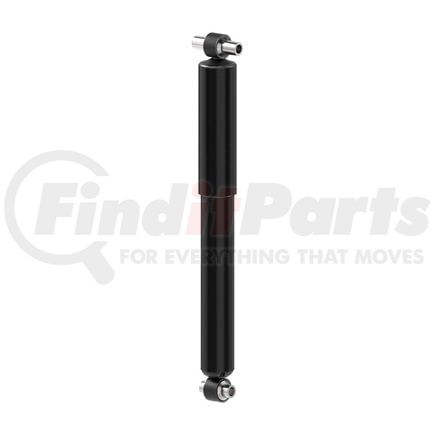

Monroe Gas-Magnum 60 Series Suspension Shock Absorber
Boost your vehicle's performance with the Monroe Gas-Magnum 60 Series Suspension Shock Absorber. Designed specifically for hardworking trucks and vans, this shock absorber provides firm control without sacrificing ride comfort. Thanks to its heavy-duty nitrocarburized rod and sintered iron piston, it offers exceptional durability, longer service life, and efficient operation. The larger bore and big 2-inch reserve tube work synergistically to hold more oil, enabling better performance and controlled ride. The nitrogen gas charge ensures constant tire-to-road contact, thereby reducing aeration and shock fade. This Monroe 65494 shock absorber is crafted to handle extreme temperatures, ensuring a smooth ride in all weather conditions.
MONROE 65494 Specifications
Product Attributes
| Lower Mount Code | LS62 |
| Upper Mount Code | LS61 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | Yes |
| Part Description | Shock Absorber |
| Compressed Length | 15.5 IN |
| Dust Shield Material | Metal |
| Extended Length | 24.8125 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 5/8"-16MM Sleeve ID X 2.9/16" Sleeve OAL |
| Parts Pack(s) | None |
| Travel Length | 9.313 in |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 4" Sleeve OAL |
| Compressed Length | 393.7 MM |
| Extended Length | 630.2 MM |
| Travel Length | 236.6 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS62 |
| Upper Mount Code | LS61 |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598173942 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 65494 Cross References
MONROE 65494 Fits Vehicles
- Mack Anthem (2018-2024)
- Volvo VNR (2018-2024)
- Volvo VNX (2014-2017)
- Mack CX (1998-2005)
- Volvo VNL (2000-2024)
- Volvo VNM (2000-2018)
- Volvo VAH (2011-2018)
- Volvo VN (1998-1999, 2004)
- Mack CHN (2004-2007)
- Mack CXU (2008-2019)
- Mack CXP (2006-2007)
