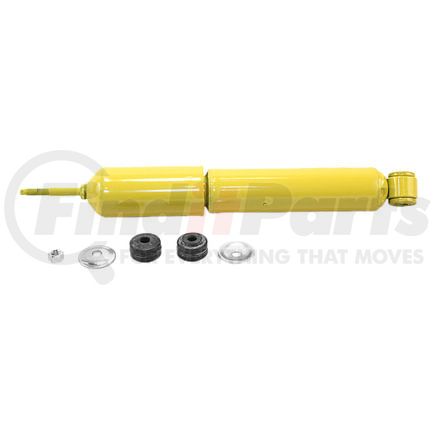

(888) 312-8812 Login SignupMONROE 34899 Gas-Magnum Suspension Shock Absorber
Tap to view 3 more
MSRP: $76.78
$4349
Save $33.29
Limited availability at this price!
In Stock
Get it by Monday, Mar 9
MONROE 34899 Part Description
Manufacturer
Product Description
Gas-Magnum Suspension Shock Absorber
Features & Benefits
- DESIGNED FOR TRUCKS AND VANS -- Engineered for hardworking full-size trucks and vans and features full-displaced valving on compression cycles to deliver controlled ride and handling
- BUILT TO LAST -- Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability for longer service life while self-lubricating fluid seal reduces friction against piston rod to reduce wear
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- LONGER SERVICE LIFE -- Larger bore and bigger 2-in. reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee
MONROE 34899 Specifications
Product Attributes
| Lower Mount Code | LS38 |
| Upper Mount Code | S4 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 9.875 IN |
| Dust Shield Material | Metal |
| Extended Length | 14.375 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL |
| Parts Pack(s) | P01135 |
| Travel Length | 4.5 in |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Compressed Length | 250.8 MM |
| Extended Length | 365.1 MM |
| Travel Length | 114.3 MM |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Lower Mount Type | Loop (Eyelet) Bushing and Sleeve |
| Lower Mount Code | LS38 |
| Upper Mount Code | S4 |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
Additional Information
| MSDS Sheet Number | 01168 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598469168 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 34899 Cross References
| Brand | Part Number |
|---|---|
| 34899MM, FT4Z5813208BA | |
| ACDELCO | 50881 |
| COFAP | AT11, AT13 |
| Ford | D5UZ18125J, E6UZ18124A, E6UZ18124B, E6UZ18124J, E6UZ18125A, E6UZ18125B, E7XZ18125A, F7AZ18124VB, F7AZ18125UA |
| GABRIEL | G63500, 58500 |
| KYB | 344069, KG5410 |
| KYB AMERICA LLC. | KG5410 |
| MERITOR | MG60114 |
| MONROE VINTAGE | 5097 |
| Monroe Shocks & Struts | 5097 |
| NAPA Shocks | 76899 |
| PROVEN VALUE | 66899 |
| PRT | 173678 |
MONROE 34899 Fits Vehicles
- Ford E-150 Econoline Club Wagon (1975-1991)
- Ford E-150 Econoline (1975-1991)
- Ford E-100 Econoline Club Wagon (1975-1983)
- Ford E-100 Econoline (1975-1983)
